......................Safety Guidelines ........................Introduction ......................Introduction ........................Features ......................Order Information ....................... Main Specification .............. Mechanical Specification and Inpit/Out Terminals ................Mechanism of Su ly/Charger Unit ......................................... Functions ..................... Input Voltage Range .................... ......................... ..................
MEAN WELL ENTERPRISES CO., L TD. MEAN WELL ENTERPRISES CO., L TD. No. 28,Wuquan 3rd Rd., Wugu Dist., No. 28,Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, T aiwan...
Page 8
※ LED Status Indicators & Corresponding Signal at Function Pins For power supply system Description Green The power supply functions normally The LED will present a constant red light when the abnormal status (OTP, OLP, fan fail and charging timeout) arises. The LED will flash with the red light when the internal temperature reaches 60℃;...
◎ For charger system RTH+ Temperature sense associated with the temperature compensation funcion. RTH- Not use. ◎ The Black wiring cable goes with the RCB-1600, used for battery temperature compensation. ※ Connector Pin No. Assignment( ) : RJ45 8 positions Pin No.
Page 10
Constant current level(RCP-1600)/output current (RCB-1600) can be adjusted within a range of 20-100% of the rated current via an external DC source, the wiring is show as below. CN2 +S LOAD RHP-1U System EXTERNAL VOLTAGE CN1 -V Signal Connection between +S & +V, -S & -V on CN1 is required (RCP-1600system) Relationship between the output current and the external DC source is shown as below.
Page 11
Built-in fan-lock protection circuit, the output will shut off when the DC fans stop operating (fan-lock or broken wires). In the meantime, there will be a “HIGH” signal sent out through T-ALARM, referenced to GND-AUX. Please remove the unit from your system and send back to our local distributor or MEAN WELL for repair. ◎...
Page 12
Parallel operation in a single rack shelf is only suitable for the identical units (with the same model and the same output voltage/current). ◎ Each rack shelf (RHP-1U ) has built-in parallel connection/wiring. Once have RCP or RCB units inserted in the rack shelf then these front end unit are operated in parallel.
◎ Higher output voltage can be acquired by connecting rack shelves in series. ◎ The rack shelves (RHP-1U ) connected in series should have the identical units. Please refer to Figure3-9 for wiring configuration. ◎ Total output current should not exceed currents that can be produced in each rack shelf.
3.18 Auxiliary Output ◎ Built-in 5V/0.3A and 12V/0.8A auxiliary output. 3.19 RCP-1600 PMBus Communication Interface ◎ RCP-1600 is compliant with PMBus Rev.1.1, the maximum communication speed is 100KHz and it has the capability of identifying up to16 addressed units. ◎ PMBus communication interface is able to provide the current operating status and information as follows: 1.Output voltage, current and internal temperature.
Page 15
3.19.2 PMBus Command List ◎ The command list of the RCP-1600 is shown in Table 3-2. It is compliant with the standard protocol of PMBus Rev. 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html). Command Command Transaction # of data Description...
Page 17
3.20.1 PMBus Device Addresing and Charge Mode Selection EachRCB-1600unitshouldhavetheiruniqueandowndeviceaddresstocommunicateoverthePMbus.7-bitaddresssettingpinsareused toassignadeviceaddressforaRCB-1600unit,asshowninthebelowdescription. A0-A2 allow users to designate the address for each RCB-1600 unit; these three bits are defined through a 4-pole DIP switch on the rear panel of the rack shelf. There are up to 8 different addresses are available to be assigned. Please refer to Table 3-7(left) for the detailed setup advice.
Page 18
3.20.3 PMBUS, PV/PC or SVR Functions Users are able to fully control and design the entire charging behavior, without the charging curve, by one of the following means- PMBus command, PV/PC function or SVR adjustment, please refer to the previous chapter. The operating priority is, PMBus > PV/PC > SVR. NOTE: When operating in this mode, PMBus commands B0h/B1h…B8h can be set but there will be no response whereas other PMBus commands and functions work normally.
Page 19
Command Command Transaction # of data Description Code Name Type Bytes Constant current setting value of charging curve CURVE_ICHG R/W Word (format: Linear, N= -2) Constant voltage setting value of charging curve CURVE_VBST R/W Word (format: Linear, N= -9) Constant voltage setting value of charging curve CURVE_VFLOAT R/W Word (format: Linear, N= -9)
Page 20
◎ Definition of Command B8h CHG_STATUS: Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte FVTOF CVTOF CCTOF BTNC NTCER EEPER Low byte FULLM Low byte Bit 0 FULLM:Fully Charged Mode Status 0=NOT fully charged 1=fully charged Bit 1 CCM:Constant Current Mode Status 0=the charger NOT in constant current mode 1=the charger in constant current mode...

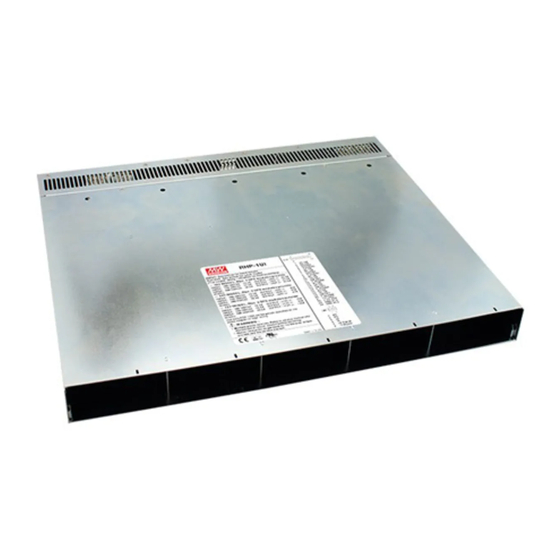

Mount the RHP-1U in a 19 inch rack cabinet before operating. ◎ Insert 1 ~ 5 pieces of RCP/RCB-1600 (with the same output voltage and current) into the RHP-1U(refer to Figure4-1) ◎ This is a unit with forced air cooling, please keep fans and ventilation holes free from any obstructions. It is suggested that there should be no barriers within 10cm of the ventilation holes.
De-rating ◎ When RCP-1600/RCB-1600 units are operating at a lower AC input voltage, these units will de-rate their output current automatically to protect themselves, shown as Figure 4-2. 230VAC Input only (HORIZONTAL) AMBIENT TEMPERATURE (℃) INPUT VOLTAGE (VAC) 60Hz Figure 4-2 Output de-rating curves Warranty ◎...
