RCP-2000 / RKP-1U
I n s t r u c t i o n M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RKP-1U Series and is the answer not in the manual?

Questions and answers

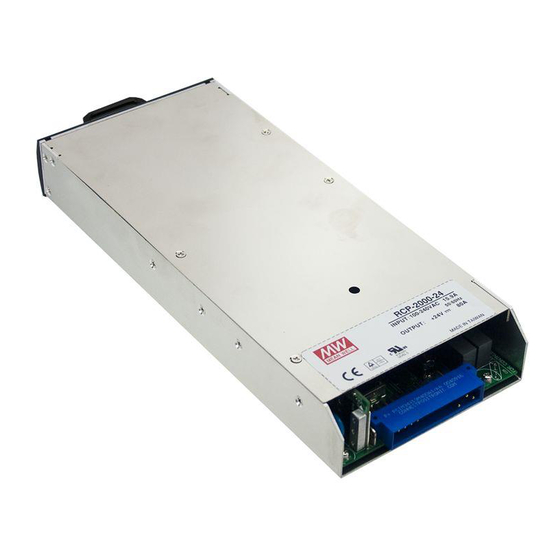

Summary of Contents for Mean Well RKP-1U Series

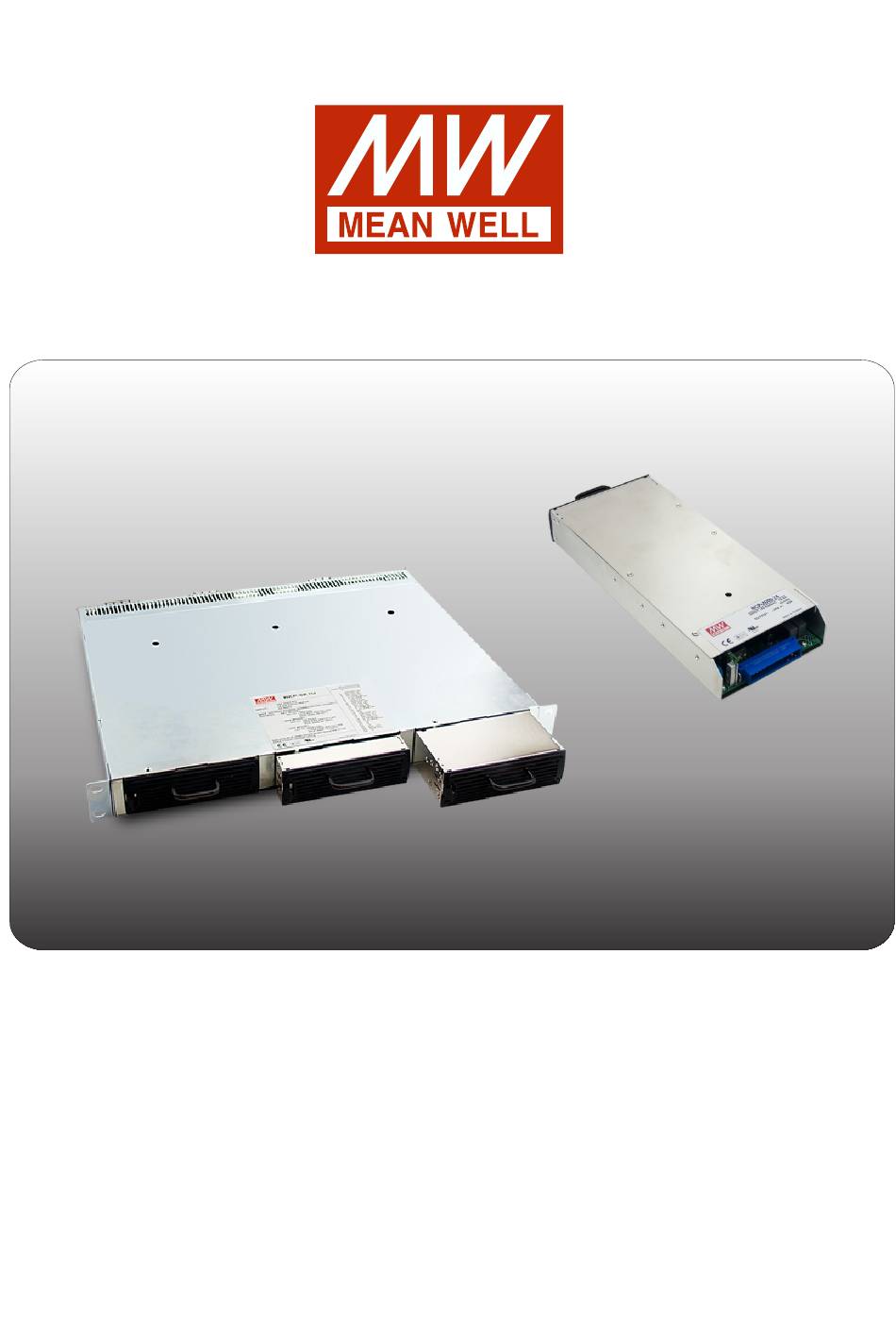

  • Page 1 RCP-2000 / RKP-1U I n s t r u c t i o n M a n u a l...
  • Page 2: Table Of Contents

    0. Safety Guidelines......................1. Introduction of Series Models........................................ 1.1 Introduction ........................1.2 Features ......................1.3 Order Information ....................... 1.4 Main Specification 2.Mechanical Specification and Input / Output Terminals............................2.1 Mechanism of Single Unit .................. 2.2 Mechanism of Whole Rack System 3.Functions........................
  • Page 3: Safety Guidelines

    RCP-2000,RKP-1U Instruction Manual 0. Safety Guidelines ◎Risk of electrical shock and energy hazard. All kinds of failure should be examined by a qualified technician. Please do not remove the case of the RCP-2000 or RKP-1U by yourself! ◎Please do not change any component on the RCP-2000 series by yourself or make any kind of modification on it. ◎Please do not install the RCP-2000 series in places with high moisture, high ambient temperature or under direct sunlight.
  • Page 4: Main Specification

    ◎Rack (RKP-1U□):   CN500 CN500           □ □                       ...
  • Page 5 ◎Rack system MODEL RKP-6K1U□-12 RKP-6K1U□-24 RKP-6K1U□-48 RECTIFIER RCP-2000-12 RCP-2000-24 RCP-2000-48 RACK SHELF RKP-1UI or RKP-1UT OUTPUT VOLTAGE OUTPUT MAX. OUTPUT CURRENT 300A 240A 126A MAX. OUTPUT POWER 3600W 5760W 6048W Note.7 VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC Note.6 FREQUENCY RANGE 47 ~ 63Hz INPUT...
  • Page 6: Mechanical Specification And Input / Output Terminals

    Mechanical Specification and Input / Output Terminals Mechanism of Single Unit 7.1 12.5 5max. CN501 SVR1 Air flow direction 1 3 5 7 9 11 2 4 6 8 10 13 Figure 2-1 Input / Output Connector Pin No. Assignment(CN501) : Postronic PCIM34W13M400A1 Pin No.
  • Page 7: Mechanism Of Whole Rack System

    2.2 Mechanism of Whole Rack System CN500 ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH CN500 RKP-1UT 1 2 3 4 5 ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH CN500 RKP-1UI Mounting Bracket IEC320-C20 IEC320-C20 IEC320-C20 SVR1 SVR1 SVR1 Air flow direction Module C Module B Module A 10.2...
  • Page 8: Functions

    ◎Connector Pin No. Assignment of CN500 Pin No. Assignment Pin No. Assignment Pin No. Assignment Pin No. Assignment Pin No. Assignment ON/OFF-A FAN FAIL-A T-ALARM-B ON/OFF-C FAN FAIL-C AC-OK-A ON/OFF-B FAN FAIL-B AC-OK-C DC-OK-A AC-OK-B +5V-AUX DC-OK-C PV-A DC-OK-B +12V-AUX PV-C T-ALARM-A PV-B...
  • Page 9: Output Power

    Output Power ◎Single Unit RCP-2000-12 : 1200W (12V / 100A) RCP-2000-24 : 1920W (24V / 80A) RCP-2000-48 : 2016W (48V / 42A) ◎Whole System RKP-6K1U□-12 : 3600W (12V / 300A) RKP-6K1U□-24 : 5760W (24V / 240A) RKP-6K1U□-48 : 6048W (48V / 126A) Power Factor Correction (PFC) ◎Built-in active power factor correction (PFC) function.
  • Page 10: Over Temperature Protection (O.t.p.) And Over Temperature Alarm

    In the mean time, there will be a "High" signal (4.5~5.5V) between "FAN FAIL" and "GND-AUX" on CN500 connector. Please switch off the AC source and send back to our local distributor or MEAN WELL for repair. ◎The sourcing current is 10mA and only for output.
  • Page 11: Hot-Swap Operation

    RKP-1U CN500 LOAD Sense lines should be twisted in pairs Figure 3-5 Connection for using the "Remote Sense" function RKP-1U CN500 Figure 3-6 Connection for using the "Local Sense" function 3.15 Hot-Swap Operation ◎Built-in "Oring MOSFET" in each RCP-2000 unit that the single unit can be hot-swapped without turning off the AC source providing to the whole rack system.
  • Page 12: Series Operation

    RKP-1U#1 +5V-AUX ON / OFF-A CN500 ON / OFF-B ON / OFF-C RKP-1U#2 LOAD +5V-AUX ON / OFF-A CN500 ON / OFF-B ON / OFF-C Twisted wires RKP-1U#3 +5V-AUX ON / OFF-A CN500 ON / OFF-B ON / OFF-C Figure3-8 Three racks connected in parallel ◎When operating more than one rack unit in parallel, ripples of the output voltage might be higher than that specified in the spec at light load condition.
  • Page 13: Auxiliary Output

    3.18 Auxiliary Output ◎Built-in 5V/0.3A and 12V/0.8A auxiliary output for each rack. 3.19 PMBus communication interface ◎RCP-2000 is compliant with PMBus Rev.1.1, the maximum communication speed is 100KHz, which allows up to 9 units to be identified and controlled over the bus. ◎Through the PMBus interface, users can obtain the operation information of the power supply, including 1.Output voltage, output current, and internal temperature of the power supply.
  • Page 14 Command Command Transaction # of data Description Code Name Type Bytes Output voltage trimming value VOUT_TRIM R/W Word (format: Linear, N= -9) Output overcurrent setting value IOUT_OC_FAULT_LIMIT R/W Word (format: Linear, N= -3) Define protection and response when an IOUT_OC_FAULT_RESPONSE R Byte output overcurrent fault occurred STATUS_WORD...
  • Page 15 ◎Control parameters PMBus command Model Adjustable range Tolerance Default OPERATION 00h(OFF) / 80h(ON) 80h(ON) VOUT_COMMAND (Note. 2) ±5% -1.5 ~ 2V VOUT_TRIM ±5% -3 ~ 4V (Note. 2) ±5% -6 ~ 8V ±5A 30 ~ 112A 112A ±4A IOUT_OC_FAULT_LIMIT 24 ~ 89.5A 89.5A ±3A 12.62 ~ 47A...
  • Page 16: Notes On Operation

    4.Notes on Operation Installation Method ◎Mount the rack unit in a 19" rack before operating. ◎Insert 1~3 pieces of RCP-2000 (with the same output voltage and current) into the RKP-1U□(refer to Figure 4-1). ◎Definition of module position: A is on the right, B is in the middle, and C is on the left (refer to Figure 4-1). ◎This unit is equipped with built-in DC fans and requite clearance for cooling.
  • Page 17: Derating

    ◎Three years of global warranty is provided for RCP-2000 series/ RKP-1U under normal operation. Please do not change any component or modify the unit by yourself or MEAN WELL may reserve the right not to provide the complete warranty service.
