2400W Power Supply with Single Output
Dimension
L
*
W
*
H
278
*
177.8
*
63.5 (2U)
10.9
*
7
*
2.5
(2U)
■ Features
AC input 180~264VAC
Built-in active PFC function
High efficiency up to 91.5%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 7200W (2+1)
Built-in remote ON-OFF control / remote sense /
/
auxiliary power power OK signal
Protections: Short circuit / Overload / Over voltage
/ Over temperature
Optional conformal coating
5 years warranty
■ Description

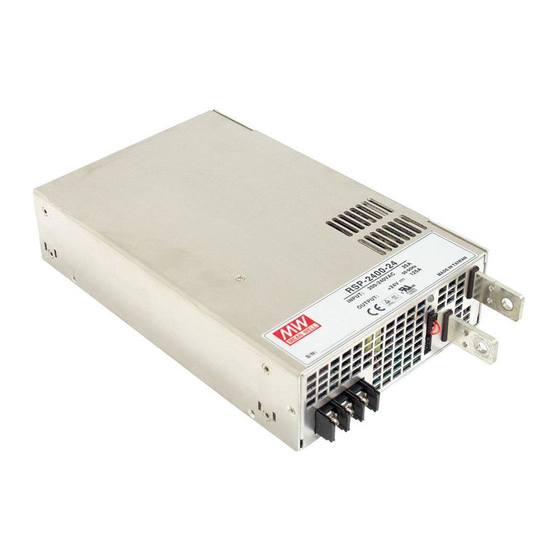

RSP-2400 is a 2.4KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC
input voltage and offers the models with the DC output mostly demanded from the industry. Each model is
cooled by the built-in fan with fan speed control, working for the temperature up to 70 . Moreover, RSP-2400
provides vast design flexibility by equipping various built-in functions such as the output programming,
active current sharing, remote ON-OFF control, auxiliary power, etc.
■ Model Encoding / Order Information
RSP -
2400
-
24
mm
inch
Output voltage (12V/24V/48V)
Output wattage
Series name
R S P - 2 4 0 0
■ Certificates
Safety: UL/EN/IEC 60950-1
EMC: EN 55022 / 55024
■ Applications
Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
Digital broadcasting
RF application
,
File Name:RSP-2400-SPEC 2016-07-26
