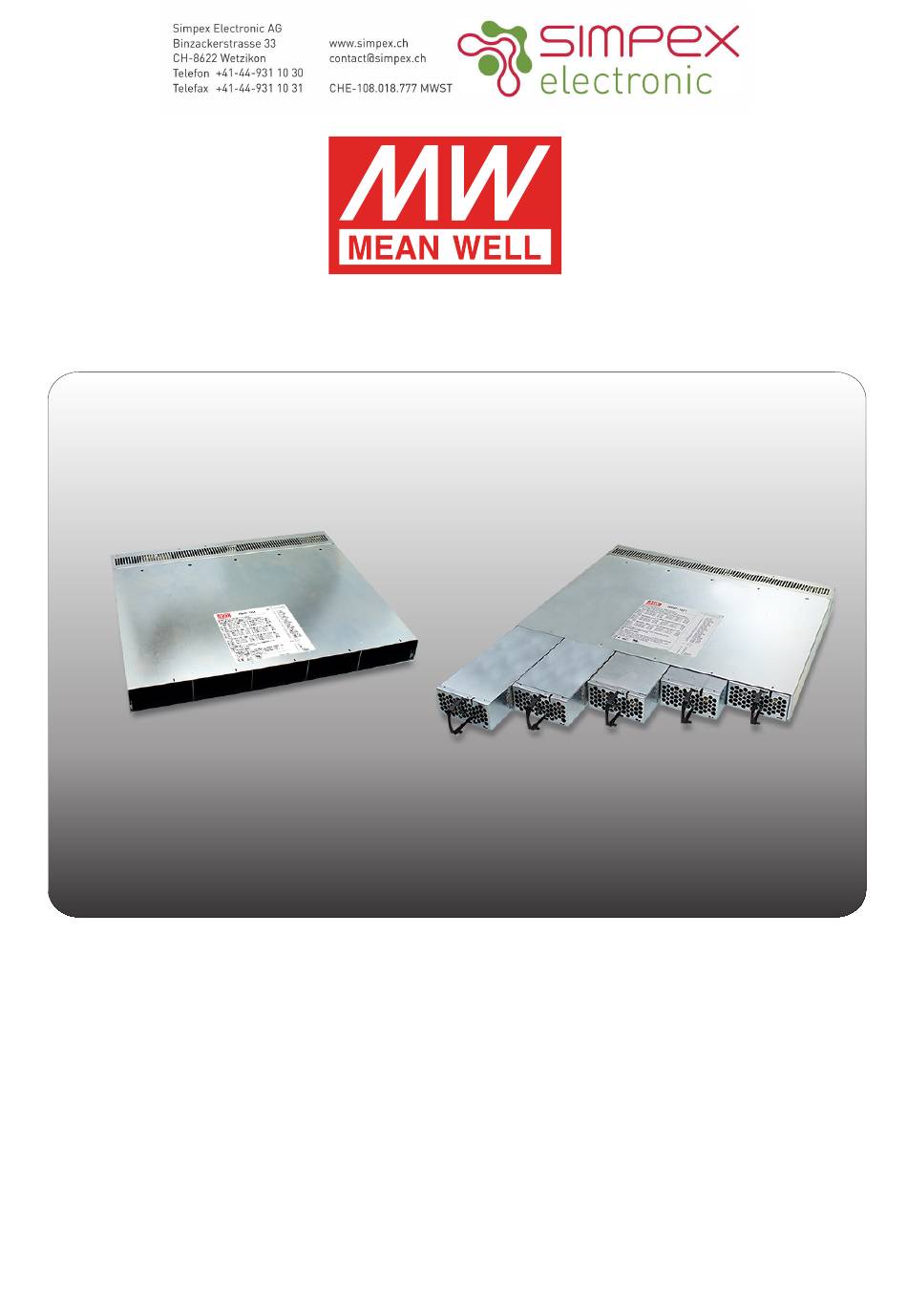

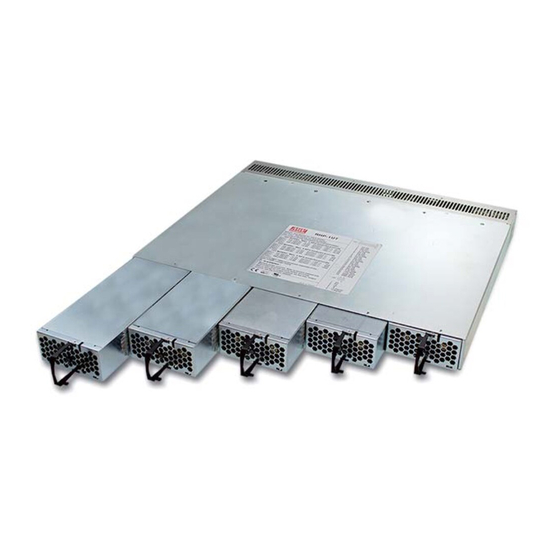

U s e r ' s M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCP-1600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mean Well RCP-1600 Series

Summary of Contents for Mean Well RCP-1600 Series

  • Page 1 RCP- 00 / RCB -1600 / RHP-1U U s e r ' s M a n u a l...

  • Page 2: Communication Interface

    ......................Safety Guidelines ........................Introduction ......................Introduction ........................Features ......................Order Information ....................... Main Specification .............. Mechanical Specification and Inpit/Out Terminals ................Mechanism of Su ly/Charger Unit  ......................................... Functions ..................... Input Voltage Range  .................... .........................  ..................

  • Page 3: Safety Guidelines

              MEAN WELL ENTERPRISES CO., L TD.  MEAN WELL ENTERPRISES CO., L TD.     No. 28,Wuquan 3rd Rd., Wugu Dist., No. 28,Wuquan 3rd Rd., Wugu Dist., ...

  • Page 4: Over Temperature

    MODEL RCP-1600-12 RCP-1600-24 RCP-1600-48 DC VOLTAGE RATED CURRENT 125A 33.5A CURRENT RANGE 0 ~ 125A 0 ~ 67A 0 ~ 33.5A RATED POWER 1500W 1608W 1608W RIPPLE & NOISE (max.) 150mVp-p 200mVp-p 300mVp-p Note.2 OUTPUT VOLTAGE ADJ. RANGE 11.5 ~ 15V 23.5 ~ 30V 47.5 ~ 58.8V ±1.0%...
  • Page 5 MODEL RCB-1600-12 RCB-1600-24 RCB-1600-48 BOOST CHARGE VOLTAGE(Vboost)(default) 14.4V 28.8V 57.6V FLOAT CHARGE VOLTAGE(Vfloat)(default) 13.8V 27.6V 55.2V CURRENT RANGE 0 ~ 100A 0 ~ 55A 0 ~ 27.5A CONSTANT CURRENT(CC)(default) 100A 27.5A RATED POWER 1440W 1584W 1584W By built-in potentiometer, SVR OUTPUT VOLTAGE ADJ.
  • Page 6 MODEL RHP-8K1U RHP-8K1U RHP-8K1U DIMENSION Rack 365*482.6*44(L*W*H, with mounting bracket) ; 365*440*44(L*W*H, without mounting bracket) OTHERS 5.5Kg ; 3pcs/17.5Kg/2.11CUFT PACKING ℃ NOTE                   ...
  • Page 7 2.2 Mechanism of whole Rack system ADDRESS ADDRESS ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH SWITCH SWITCH RHP-1UT 4-M8 L=16 ADDRESS ADDRESS ADDRESS ADDRESS ADDRESS SWITCH SWITCH SWITCH SWITCH SWITCH RHP-1UI IEC320-C14 4-M8 L=16 IEC320-C14 IEC320-C14 IEC320-C14 IEC320-C14 5-M4 L=4 5-M4 L=4 11.6 20.7 11.6...
  • Page 8 ※ LED Status Indicators & Corresponding Signal at Function Pins For power supply system Description Green The power supply functions normally The LED will present a constant red light when the abnormal status (OTP, OLP, fan fail and charging timeout) arises. The LED will flash with the red light when the internal temperature reaches 60℃;...
  • Page 9 ◎ For charger system RTH+ Temperature sense associated with the temperature compensation funcion. RTH- Not use. ◎ The Black wiring cable goes with the RCB-1600, used for battery temperature compensation. ※ Connector Pin No. Assignment( ) : RJ45 8 positions Pin No.

  • Page 10: External Voltage

    3.5.2 Voltage adjustment of whole rack system by an external 0 -5 Vdc source (output voltage trimming function) (1) Connect output of the external DC source to PV(PIN 26) and –V(PIN 24) on CN1, as shown in Figure3-1. (2) Relationship between the output voltage and the external DC source is shown in Figure3-2.
  • Page 11 Built-in fan-lock protection circuit, the output will shut off when the DC fans stop operating (fan-lock or broken wires). In the meantime, there will be a “HIGH” signal sent out through T-ALARM, referenced to GND AUX. Please remove the unit from your system and send back to our local distributor or MEAN WELL for repair. ◎...
  • Page 12 RHP-1U LOAD Twistedwires Figure 3-4 Connection of Remote Sense RHP-1U Figure 3-5 Connection of Local Sense 3.15 Hot Swap Operation ◎ Built-in "Oring MOSFET", the units can be installed/removed without tuning power off. ◎ Insert units: Grasp the handle and push into the rack shelf through the rail. "Click"...
  • Page 13 3.16.2 Operation of three rack shelves in parallel (RCP-1600 system) ◎ Parallel operation is only suitable for the identical units (with the same model and the same output voltage/current). Up to 3 rack shelves and the maximum supply units that can be connected in parallel is 15. ◎...
  • Page 14 3.18 Auxiliary Output ◎ Built-in 5V/0.3A and 12V/0.8A auxiliary output. 3.19 RCP-1600 PMBus Communication Interface ◎ RCP-1600 is compliant with PMBus Rev.1.1, the maximum communication speed is 100KHz and it has the capability of identifying up to16 addressed units. ◎ PMBus communication interface is able to provide the current operating status and information as follows: 1.Output voltage, current and internal temperature.
  • Page 15 3.19.2 PMBus Command List ◎ The command list of the RCP-1600 is shown in Table 3-2. It is compliant with the standard protocol of PMBus Rev. 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html). Command Command Transaction # of data Description...

  • Page 16: Operation

    3.19.3 PMBusData Range and Tolerance ◎ Display parameters PMBus command Model Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.18V 0 ~ 15V ±0.36V READ_VOUT 0 ~ 30V ±0.48V 0 ~ 60V ±2.5A 0 ~ 150A READ_IOUT ±1.34A 0 ~ 80A (Note.
  • Page 17 3.20.1 PMBus Device Addresing and Charge Mode Selection Each RCB 1600 unit should have their unique and own device address to communicate over the PMbus 7 bit address setting pins are used to assign a device address for a RCB 1600 unit as shown in the below description A0-A2 allow users to designate the address for each RCB-1600 unit;...
  • Page 18 3.20.3 PMBUS, PV/PC or SVR Functions Users are able to fully control and design the entire charging behavior, without the charging curve, by one of the following means- PMBus command, PV/PC function or SVR adjustment, please refer to the previous chapter. The operating priority is, PMBus > PV/PC > SVR. NOTE: When operating in this mode, PMBus commands B0h/B1h…B8h can be set but there will be no response whereas other PMBus commands and functions work normally.
  • Page 19 Command Command Transaction # of data Description Code Name Type Bytes Constant current setting value of charging curve CURVE_ICHG R/W Word (format: Linear, N= -3) Constant voltage setting value of charging curve CURVE_VBST R/W Word (format: Linear, N= -9) Constant voltage setting value of charging curve CURVE_VFLOAT R/W Word (format: Linear, N= -9)
  • Page 20 ◎ Definition of Command B8h CHG_STATUS： Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte FVTOF CVTOF CCTOF BTNC NTCER EEPER Low byte FULLM Low byte Bit 0 FULLM：Fully Charged Mode Status 0＝NOT fully charged 1＝fully charged Bit 1 CCM：Constant Current Mode Status 0＝the charger NOT in constant current mode 1＝the charger in constant current mode...
  • Page 21 3.20.4 PMBus Data Range and Tolerance Display parameters ◎ PMBus command Mode Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.18V 0 ~ 15V ±0.36V READ_VOUT 0 ~ 30V ±0.48V 0 ~ 60V ±2.5A 0 ~ 150A READ_IOUT ±1.34A 0 ~ 80A (Note.1) ±0.67A 0 ~ 40A...
  • Page 22 When using PMBus to adjust output voltage, VOUT_COMMAND only can be used to display the rated voltage of the unit and cannot be written. It is VOUT_TRIM that provide voltage trimming function. Taking RCB-1600-12 as an example, to get a 9V output, please value of VOUT_TRIM to -3V.

  • Page 23: Ambient Temperature

    De-rating ◎ When RCP-1600/RCB-1600 units are operating at a lower AC input voltage, these units will de-rate their output current automatically to protect themselves, shown as Figure 4-2. 230VAC Input only (HORIZONTAL) AMBIENT TEMPERATURE (℃) INPUT VOLTAGE (VAC) 60Hz Figure 4-2 Output de-rating curves Warranty ◎...
