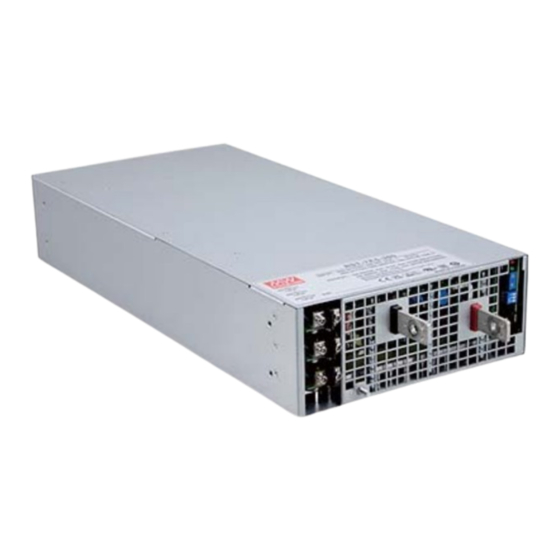

Mean Well RST-7K5-HV Series Manual

7.5KW
Forced-air cooling: Blank type
UL62368-1
■ Features
3 ψ 3-wire / △ 196~305VAC or 3
High efficiency up to 95%
Water / forced air cooling selectable
Output voltage and constant current level programmable
Wide voltage adjustment range 1~120%
Active current sharing up to 4 units(28.5KW)
Built-in remote ON-OFF control / Alarm signal
Protections: Short circuit / Overload / Over voltage /
Over temperature / Fan fail
5 years warranty
■ Description
RST-7K5-HV is a 7.5KW
range three phase AC input and offers the models with the high voltage DC output(115V/230V/380V)
that mostly demanded from the industry. Two types of cooling methods, forced air and water cooling,
that can be working at ambient temperature up to 70
flexibility by equipping various built-in functions such as the output programming, active current sharing,
remote ON-OFF control, alarm signals.....etc.
■ Model Encoding
RST - 7K5 - 115
ψ4
3 W Input With High Voltage Output
Front
Back
Dimension
L * W * H
460 * 211 * 83.5 (2U)
18.1 * 8.3 * 3.29 (2U)
Bauar t gepruft
Sicherheit
egel ma ge
od o s
be wac g
www. tuv.com
ID 2000000000
BS EN/EN62368-1 TPTC004 IEC62368-1
ψ 4-wire / Y 340~530VAC
3ψi nput enclosed type AC/DC power supply. This series operates for the wide
{
L: Water cooling
Blank: Forced air cooling
Output voltage (115V/230V/380V)
Output wattage
Series name
R S T- 7 K 5 - H V
Water cooling: L type
mm
inch
Ordering No.: PGG1WHS-684
■ Applications
■ GTIN CODE
℃ . Moreover, RST-7K5-HV provides vast design
Dimension
L * W
460 * 216
18.1 * 8.5
Energy & power system
U.V or laser diode application
Electrolysis system
Factory control or automation apparatus
Burn-in facility
RF application
EV charging station
MW Search:
https://www.meanwell.com/serviceGTIN.aspx
File Name:RST-7K5-HV-SPEC 2023-08-17
s e r i e s
