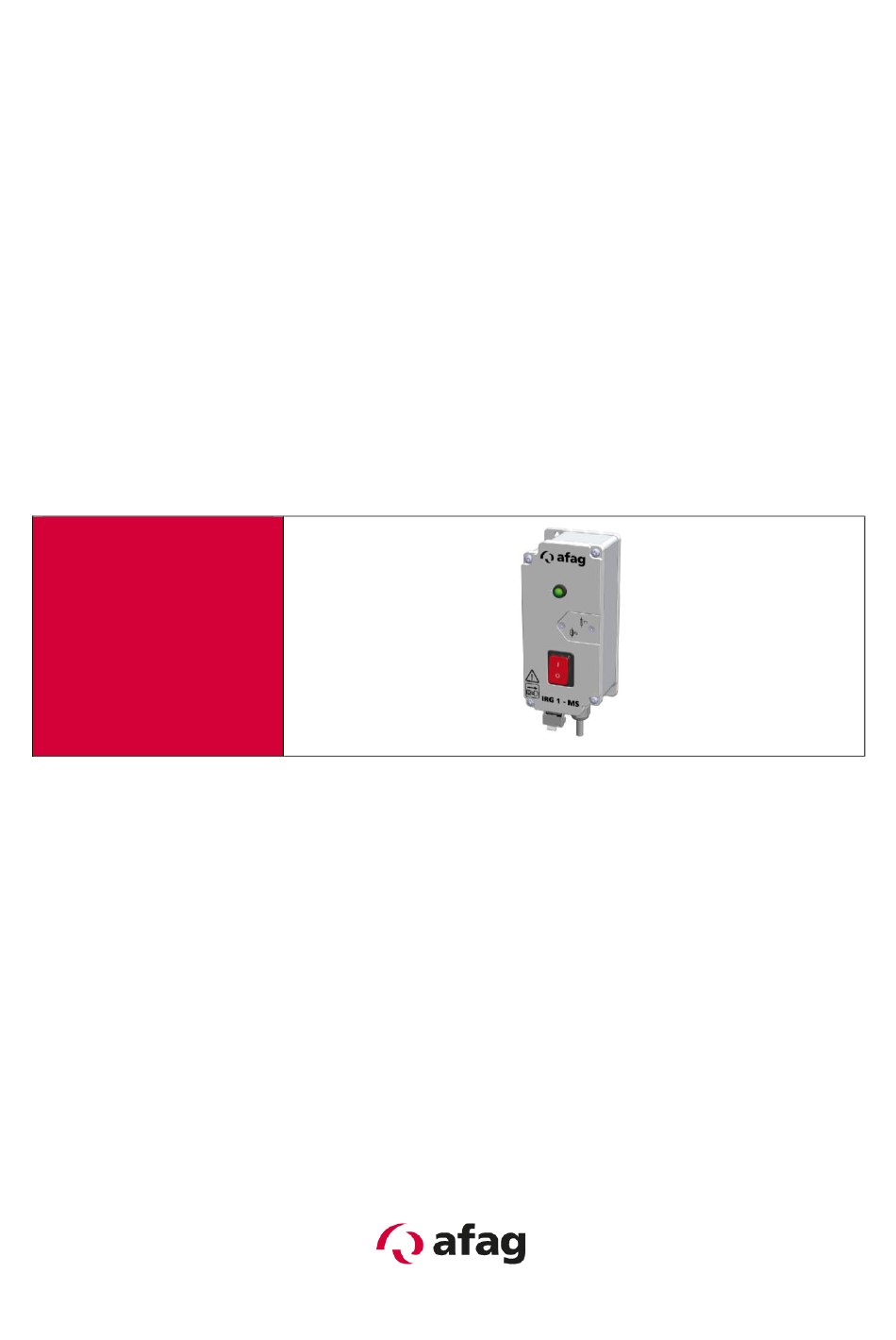

- Page 1 Controller IRG 1-MS Translation of original operating instruction Copyright by Afag GmbH...
- Page 2 This operation instruction applies to: Type Order number 230 V / 50 Hz Controller IRG 1-MS 50391018 115 V / 60 Hz Version of Documentation: BA_IRG1-MS_R01.1_E Release: Date: 2014-11-12 Page 2 2014-11-12 Release: 1.1...
-
Page 3: Table Of Contents
Table of contents: Declaration of conformity ................. 4 Safety instructions .................... 5 Notes on symbols and instructions ......................5 Basic safety information ........................6 Specified use ............................6 Description of the device .................. 7 General ..............................7 Technical data ............................8 Assembly instructions .................. -
Page 4: Declaration Of Conformity
1 Declaration of conformity The manufacturer: Afag GmbH, Wernher-von-Braun-Straße 1, D-92224 Amberg www.afag.com – Tel. +49 (0)9621 650 27-0 hereby declares, that the product: Motor Controller Module for Feeding Systems Designation: IRG 1-MS complies with the basic safety and health requirements of the EMC-Directive 2014/30/EU. -
Page 5: Safety Instructions
2 Safety instructions 2.1 Notes on symbols and instructions Symbols: Assembly and commissioning must be carried out by qualified per- sonnel only and according to these operating instructions. Please observe the meaning of the following symbols and notes. They are grouped into risk levels and classified according to ISO 3864-2. -
Page 6: Basic Safety Information
2.2 Basic safety information This description contains the necessary information for the correct application of the product described below. It is intended for use by technically qualified personnel. Qualified personnel are persons who, because of their training, experience and posi- tion as well as their knowledge of appropriate standards, regulations, health and safety requirements and working conditions, are authorised to be responsible for the safety of the equipment, at all times, whilst carrying out their normal duties and are... -
Page 7: Description Of The Device
3 Description of the device 3.1 General Control module for 1-phase capacitor motors The module can be switched on or off from a higher-level system e.g. "SMART-Box" or PLC via an enable input (M8) with a 24V, DC signal. For test purposes, the enable can be bypassed internally by a switch. The status of the output is indicated by an LED on the front panel. -
Page 8: Technical Data

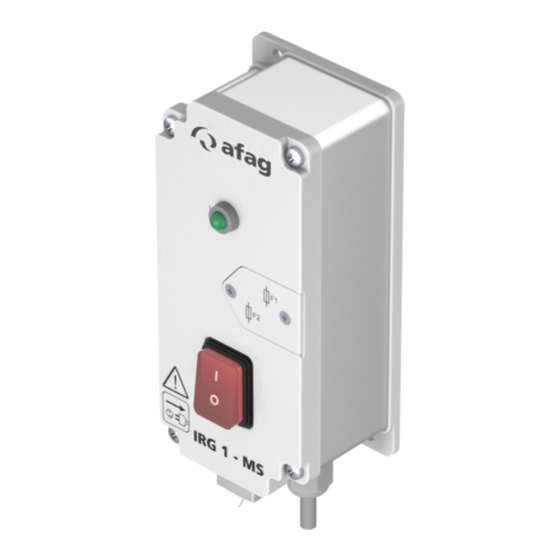

230 / 115 Frequency 50 / 60 +/- 10 % Enable input Motor output VAC ; A 230 / 115 ; 1 Type of protection IP54 Figure 1: IRG 1-MS Fixing dimensions: 163 x 52 mm Page 8 2014-11-12 Release: 1.1... -
Page 9: Assembly Instructions
4 Assembly instructions 4.1 Installing the unit There are two holes on the underside for mounting the controller. The holes are sep- arated from the interior of the housing. (See Figure 1) 4.2 Connection possibilities Figure 2: Connection possibilities Release: 1.1 2014-11-12 Page 9... -
Page 10: Maintenance Instructions
CAUTION Jumpers may only be inserted for the respective application, oth- erwise this may lead to a malfunction of or damage to the p.c.b. 5 Maintenance instructions 5.1 Replacing the fuse Procedure: 1. Always pull the plug out before opening the controller. 2. -
Page 11: Address For Orders
6.2 Address for orders Germany: Switzerland: Afag GmbH Afag Automation AG Wernher-von-Braun-Straße 1 Zuführtechnik D – 92224 Amberg Fiechtenstrasse32 CH – 4950 Huttwil Tel.: ++49 (0) 96 21 / 65 0 27-0 Fax: ++49 (0) 96 21 / 65 0 27-490 Tel.: ++41 (0) 62 / 959 86 86...
