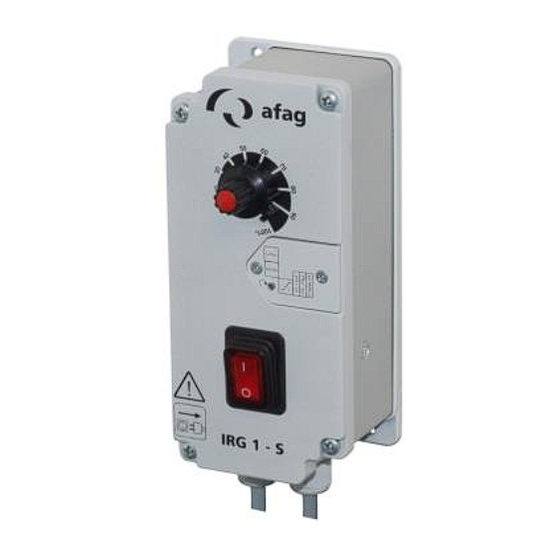

- Page 1 Controller IRG 1-S Translation of operating and installation instructions Copyright by Afag GmbH...
- Page 2 This operation instruction applies to: Type Order number 230 V / 50 Hz 50360105 Controller IRG 1-S 115 V / 60 Hz 50360106 Version of Documentation: BA_IRG1-S_R02.1_EN.docx Release: R02.1 Date: 04/03/2020 Effective from: A-91087 Page 2 04/03/2020 R02.1...
-
Page 3: Table Of Contents
Table of contents: Safety instructions .................... 4 Notes on symbols and instructions ......................4 Basic safety information ........................5 Specified use ............................5 Description of the device .................. 6 General ..............................6 Technical data ............................7 Assembly instructions ..................9 Installing the unit ........................... -
Page 4: Safety Instructions
1 Safety instructions 1.1 Notes on symbols and instructions Symbols: Assembly and commissioning must be carried out by qualified per- sonnel only and according to these operating instructions. Please observe the meaning of the following symbols and notes. They are grouped into risk levels and classified according to ISO 3864-2. -
Page 5: Basic Safety Information
1.2 Basic safety information This description contains the necessary information for the correct application of the product described below. It is intended for use by technically qualified personnel. Qualified personnel are persons who, because of their training, experience and posi- tion as well as their knowledge of appropriate standards, regulations, health and safety requirements and working conditions, are authorised to be responsible for the safety of the equipment, at all times, whilst carrying out their normal duties and are... -
Page 6: Description Of The Device
Supply voltage variations are eliminated by an internal compensation circuit so that a constant feeder throughput is always maintained. NOTE Miniature magnets can also be operated safely at the IRG 1-S con- troller! CAUTION In the case of applications that require the oscillation conveyor to be switched ON and OFF constantly (e.g. -
Page 7: Technical Data
NOTE Repair work must be carried out by qualified personnel only. We recommend that repairs are carried out on our premises. 2.2 Technical data Figure 1: IRG 1-S Fixing dimensions: 163 x 52 mm R02.1 04/03/2020 Page 7... - Page 8 Table 1: Technical data Type Units IRG 1-S 230 10% Operating voltage [VAC] 115 / ± 10% Operating frequency [Hz] 50 / 60 Oscillation frequency 50 / 100 with 50 Hz supply frequency [Hz] (Full- / half-wave) 60 / 120 with 60 Hz supply frequency 20 –...
-
Page 9: Assembly Instructions
3 Assembly instructions 3.1 Installing the unit There are two holes on the underside for mounting the controller. The holes are sep- arated from the interior of the housing. (See Figure 1) 3.2 Connection possibilities Type 230V/50Hz Figure 2: Connection possibilities R02.1 04/03/2020 Page 9... - Page 10 Type 115V/60Hz CAUTION Jumpers may only be inserted for the respective application, oth- erwise this may lead to a malfunction of or damage to the p.c.b. Page 10 04/03/2020 R02.1...
-
Page 11: Operating Instructions
4 Operating instructions Standard settings can be made without removing the front-panel. The setting up components are accessed by removing the small cover on the right hand side of the front-panel. Figure 3: Settings R02.1 04/03/2020 Page 11... -
Page 12: Internal Trimmers
4.1 Internal Trimmers Trimmers U and U can be used to scale the set-point range of the controller so that it matches the output characteristics of a particular feeder. The U trimmer de- termines the 100% value of the output voltage and the U trimmer limits the lower setting of the set-point potentiometer. -
Page 13: Troubleshooting And Fault Repair
5.2 Troubleshooting and fault repair Table 2: Troubleshooting and fault repair Fault: Fault repair Appliance not working Check the mains voltage, check the fuses and replace if necessary. Is the controller input set correctly, are the jumpers correct? Conveyor not working Check whether the right oscillation frequency has been set, where necessary alter the set- ting. -
Page 14: Address For Orders
6.2 Address for orders Germany: Switzerland: Afag GmbH Afag Automation AG Wernher-von-Braun-Straße 1 Zuführtechnik D – 92224 Amberg Fiechtenstrasse32 CH – 4950 Huttwil Tel.: ++49 (0) 96 21 / 65 0 27-0 Fax: ++49 (0) 96 21 / 65 0 27-490 Tel.: ++41 (0) 62 / 959 86 86...
