1 | General

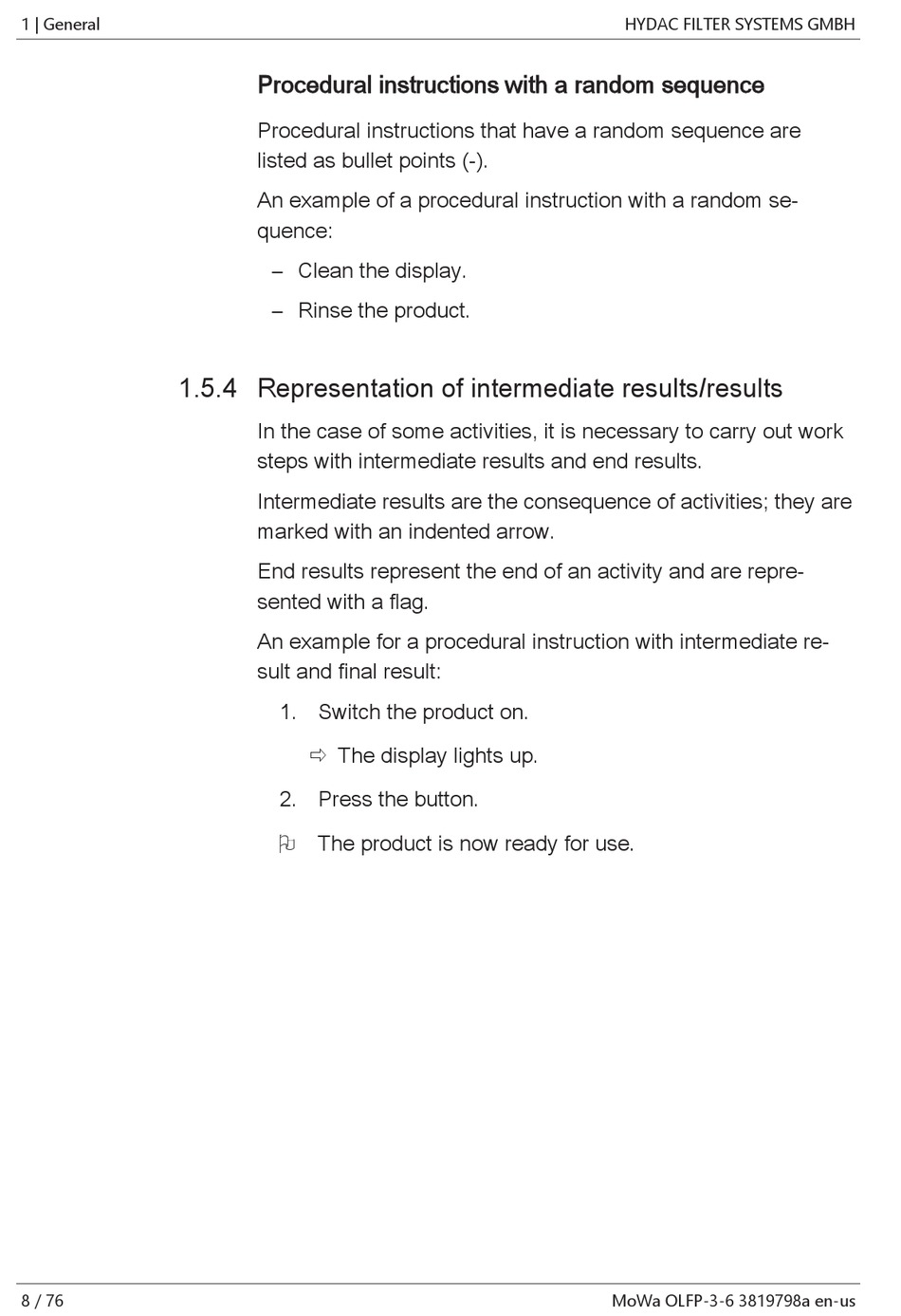

1.5.4 Representation of intermediate results/results

8 / 76
Procedural instructions with a random sequence
Procedural instructions that have a random sequence are
listed as bullet points (-).
An example of a procedural instruction with a random se-
quence:
– Clean the display.
– Rinse the product.
In the case of some activities, it is necessary to carry out work
steps with intermediate results and end results.
Intermediate results are the consequence of activities; they are
marked with an indented arrow.
End results represent the end of an activity and are repre-
sented with a flag.
An example for a procedural instruction with intermediate re-
sult and final result:
1. Switch the product on.
ð The display lights up.
2. Press the button.
O The product is now ready for use.
HYDAC FILTER SYSTEMS GMBH
MoWa OLFP-3-6 3819798a en-us
