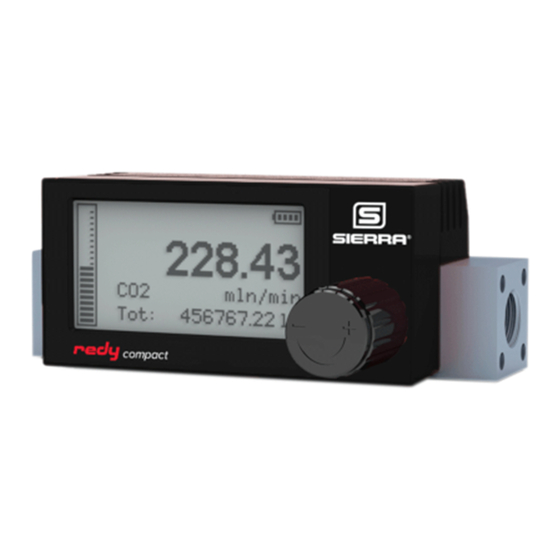

Sierra RedyCompact Series Quick Start Manual

Mass flow meters and regulators

Hide thumbs Also See for RedyCompact Series:

RedyCompact

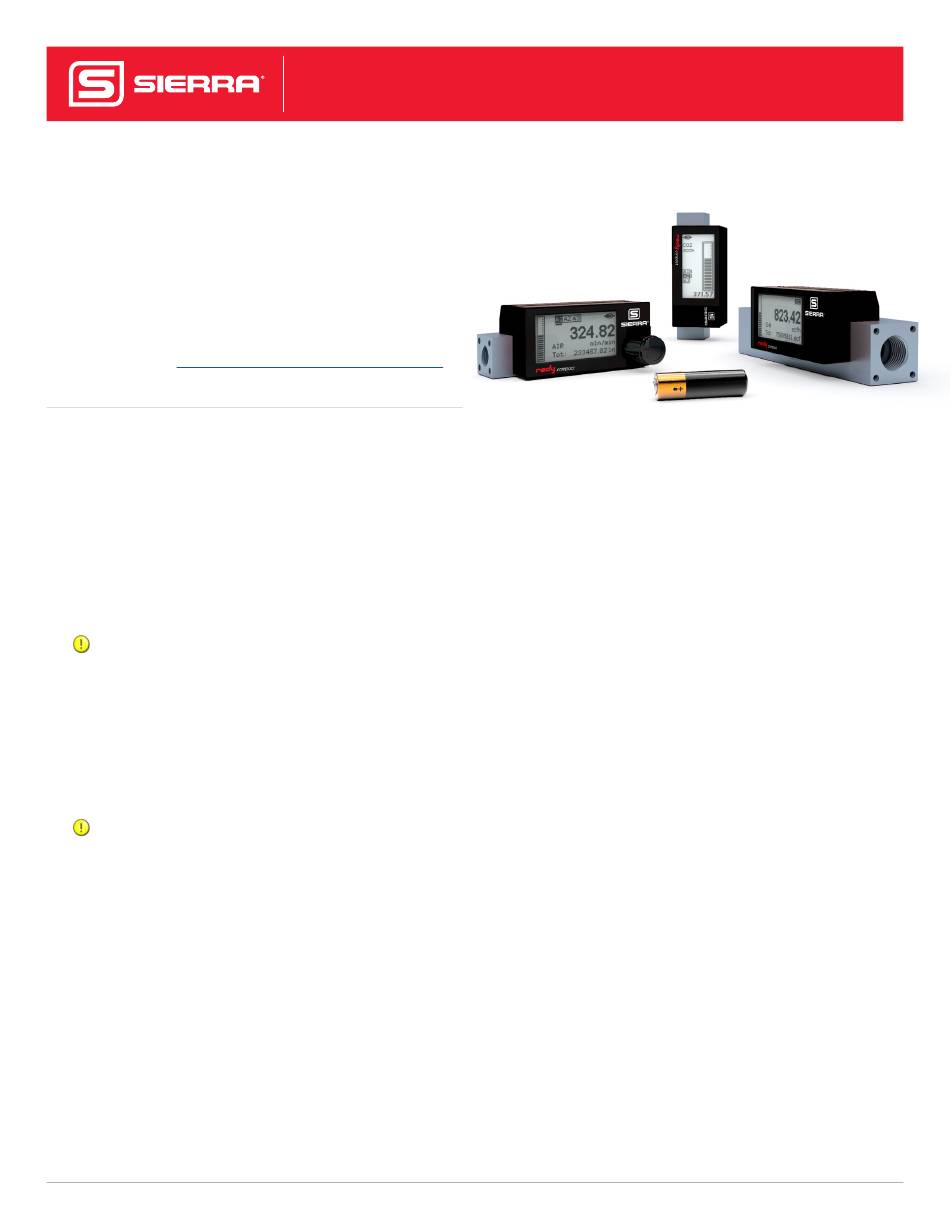

This Quick Start Guide for the RedyCompact Series Mass Flow Meters

and regulators gives easy set up and installation instructions. For

complete instructions, please download and read the RedyCompact

Series Instruction Manual. Before installing meter, follow the steps below.

Step 1. Download Instruction Manual

To get technical information, download the RedyCompact Series

Instruction Manual at

sierrainstruments.com/redycompact-manual

Safety and General Information

1. For safe operation, please consider the process and ambient conditions for which the device is designed and specified at the time of

delivery. This information can be found on the data label on the instrument housing and in the Instruction Manual.

2. Do not remove the electronics housing to prevent damage to the unit. A damaged hologram seal will void the warranty.

3. There are no serviceable parts inside the unit. Repairs must be performed by qualified personnel only.

1. Do not use Teflon® tape or liquid sealent on the process connections.

2. Please ensure that the piping is clean and purged before you connect the flow meter.

Note Your Sierra sales representative can help you to source suitable O-rings, elastomeric seals, fittings and filters.

3. The gas used must be clean and dry.

4. For particle protection, we recommend to install a 50µm filter at the inlet.

5. Please refer to the RedyCompact Instruction Manual for detailed instruction on mounting orientation and location.

6. Please verify a proper electrical connection. If you use the external 24 VDC power supply, it is strongly recommended to

have this device grounded.

7. For battery units the default setting is that the unit switches off 15 minutes after you last touched the screen.

You can disable the «Auto power off» in the settings, for example for consumption measurements see the Instruction Manual.

Note The current consumption depends on the instrument version. Please refer to the information in the Instruction Manual.

1 | RedyCompact_v1_2020

Series

QUICK START GUIDE

Table of Contents

Do you have a question about the RedyCompact Series and is the answer not in the manual?

Page 1 2. Please ensure that the piping is clean and purged before you connect the flow meter. Note Your Sierra sales representative can help you to source suitable O-rings, elastomeric seals, fittings and filters. 3. The gas used must be clean and dry.
Page 2 General Operation Note The RedyCompact has a modern touch screen. You can operate the unit by touching the screen with your fingers. Please do not use sharp objects like ballpoints. Switching the unit on: When the unit is powered by a battery, you have to touch and hold the screen for three seconds to switch the unit on. Stop touching the screen once you see something on the display.
Page 3 Limited Warranty Policy – Register Online All Sierra products are warranted to be free from defects in material and workmanship and will be repaired or replaced at no charge to Buyer, provided return or rejection of product is made within a reasonable period but no longer than three (3) years for calibration and non-calibration defects, from date of delivery.
Page 4 We Understand Flow is Tough. We can solve this together. sierrainstruments.com/RedyCompact 4 | RedyCompact_v1_2020 99-2176...
