Sierra INNOVA-MASS 240-VT Instruction Manual

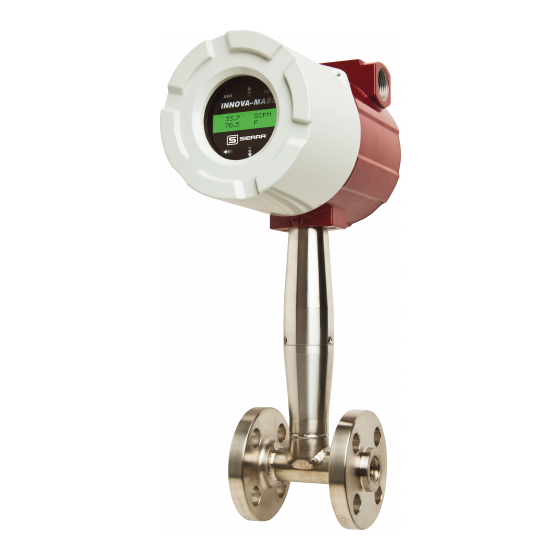

Multi-parameter vortex mass flow meters
Hide thumbs Also See for INNOVA-MASS 240-VT:
Table of Contents

Advertisement

Quick Links

Download this manual

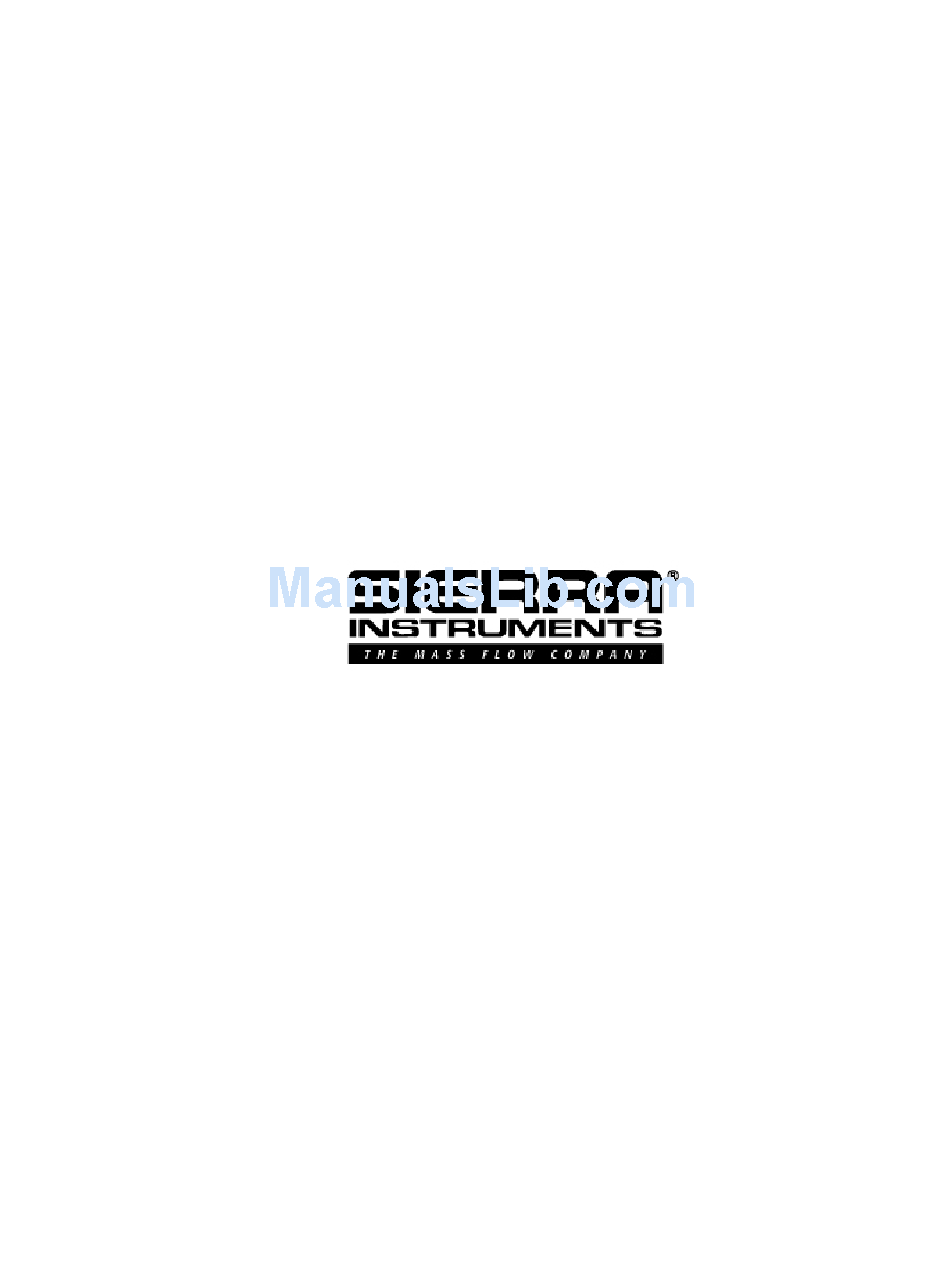

Series 24-HP Instruction Manual
Innova-Mass™ Multi-Parameter
Models 240-VT, 240-VTP, 241-VT, 241-VTP
Phone (831) 373-0200 (800) 866-0200
Bijlmansweid 2 1934RE Egmond aan den Hoef The Netherlands
IM-24-HP
Sierra Series 240 and 241
Vortex Mass Flow Meters
Instruction Manual
Part Number: IM-24-HP, Rev. C.2 10/08
CORPORATE HEADQUARTERS
5 Harris Court, Building L Monterey, CA 93940
www.sierrainstruments.com
EUROPE HEADQUARTERS
Phone +31 72 5071400 Fax +31 72 5071401
ASIA HEADQUARTERS
Room 618, Tomson Centre, Bldg. A
188 Zhang Yang Road
Pu Dong New District, Shanghai, P.R. China
Phone: + 8621 5879 8522
Fax (831) 373-4402
Fax: +8621 5879 8586
Table of Contents
0-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INNOVA-MASS 240-VT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sierra INNOVA-MASS 240-VT

Summary of Contents for Sierra INNOVA-MASS 240-VT

  • Page 1 Series 24-HP Instruction Manual Sierra Series 240 and 241 Innova-Mass™ Multi-Parameter Vortex Mass Flow Meters Models 240-VT, 240-VTP, 241-VT, 241-VTP Part Number: IM-24-HP, Rev. C.2 10/08 CORPORATE HEADQUARTERS 5 Harris Court, Building L Monterey, CA 93940 Phone (831) 373-0200 (800) 866-0200...

  • Page 2: Customer Notice

    Table of Contents Unless you have specifically ordered Sierra’s optional O may not be fit for oxygen service. Sierra Instruments, Inc., is not liable for any damage or personal injury, whatsoever, resulting from the use of Sierra Instru- ments standard mass flow meters for oxygen gas. You are responsible for clean- ing the mass flow meter to the degree required for your oxygen flow application.

  • Page 3: Table Of Contents

    Series 24-HP Instruction Manual Table of Contents Chapter 1 Introduction Innova-Mass™ Vortex Mass Flow Meters ... 1-1 Using this Manual ... 1-1 Note and Safety Information ... 1-2 Receipt of System Components ... 1-2 Technical Assistance ... 1-2 How the Innova-Mass Vortex Meter Operates ... 1-3 Velocity Measurement/Pressure Drop ...
  • Page 4 Table of Contents Energy Menu ... 3-10 Fluid Menu ... 3-11 Units Menu ... 3-12 Time and Date Menu ... 3-13 Diagnostics Menu ... 3-14 Calibration Menu ... 3-15 Password Menu ... 3-16 Chapter 4 Troubleshooting and Repair Hidden Diagnostics Menus ... 4-1 Column One Hidden Diagnostics Values ...
  • Page 5 Series 24-HP Instruction Manual Figures 1-1. In-Line Vortex Multi-Parameter Mass Flow Meter ... 1-3 1-2. Measurement Principle of Vortex Flow Meters ... 1-4 1-3. Reynolds Number Range of the Innova-Mass ... 1-6 2-1. Recommended Pipe Length Required for Installation ... 2-2 2-2.

  • Page 6: Im-24-Hp

    Caution! Calibration must be performed by qualified personnel. Sierra Instruments, Inc., strongly re- commends that you return your flow meter to the factory for calibration. In order to achieve accurate and repeatable performance, the flow meter must be in- stalled with the specified minimum length of straight pipe upstream and downstream of the flow meter’s sensor head.

  • Page 7: Sierra Series 240 And

    Series 24-HP Instruction Manual Chapter 1 Introduction Innova-Mass The Sierra Instruments’ Series 240 In-Line and the Series 241 Insertion Innova-Mass™ Vortex Flow Meters provide a reliable solution for process flow measurement. From a single entry point in the pipeline, In- nova-Mass meters offer precise measurements of five parameters includ- ing mass flow, volumetric flow, temperature, pressure and fluid density.

  • Page 8: Im-24-Hp

    Receipt of System Components When receiving a Sierra mass flow meter, carefully check the outside packing carton for damage incurred in shipment. If the carton is dam- aged, notify the local carrier and submit a report to the factory or distrib- utor.

  • Page 9: Velocity Measurement/Pressure Drop

    How the Innova-Mass Vortex Mass Flow Meter Operates Figure 1-1. In-Line Vortex Multi-Parameter Mass Flow Meter Sierra Series 240 and 241 Innova-Mass™ Multi-Parameter Vortex Mass Flow Meters use a unique sensor head to monitor mass flow rate by di- rectly measuring three variables–fluid velocity, temperature and pressure.

  • Page 10: Vortex Shedding Frequency

    Chapter 1 Introduction Vortex Shedding Frequency Von Karman vortices form downstream of a shedder bar into two distinct wakes. The vortices of one wake rotate clockwise while those of the oth- er wake rotate counterclockwise. Vortices generate one at a time, alter- nating from the left side to the right side of the shedder bar.

  • Page 11: Flow Velocity Range

    Series 24-HP Instruction Manual Flow Velocity Range To ensure trouble-free operation, vortex flow meters must be correctly sized so that the flow velocity range through the meter lies within the measurable velocity range (with acceptable pressure drop) and the linear range.

  • Page 12: Temperature Measurement

    Chapter 1 Introduction As shown in Figure 1-3, Innova-Mass™ meters exhibit a constant Strouhal number across a large range of Reynolds numbers, indicating a consistent linear output over a wide range of flows and fluid types. Be- low this linear range, the intelligent electronics in Innova-Mass automat- ically corrects for the variation in the Strouhal number with the Reynolds number.

  • Page 13: Pressure Measurement

    Series 24-HP Instruction Manual Pressure Measurement Innova-Mass Flow Meters incorporate a solid-state pressure transducer isolated by a 316 stainless steel diaphragm. The transducer itself is mi- cro-machined silicon, fabricated using integrated circuit processing tech- nology. A nine-point pressure/temperature calibration is performed on every sensor.

  • Page 14: Flow Meter Electronics

    Chapter 1 Introduction Flow Meter Electronics Innova-Mass Flow Meter electronics are available mounted directly to the flow body, or remotely mounted. The electronics housing may be used indoors or outdoors, including wet environments. Power require- ments are 100 milliamps at 12-36 VDC. An optional AC powered unit is available.

  • Page 15: Chapter 2 Installation

    IM-24-HP Chapter 2 Installation Installation Overview Sierra’s Innova-Mass Vortex Flow Meter installations are simple and straightforward. Both the Series 240 In-Line and Series 241 Insertion type flow meter installations are covered in this chapter. After reviewing the installation requirements given below, see page 2-3 for Series 240 instal- lation instructions.

  • Page 16: Unobstructed Flow Requirements

    Chapter 2 Installation Unobstructed Flow Requirements Select an installation site that will minimize possible distortion in the flow profile. Valves, elbows, control valves and other piping components may cause flow disturbances. Check your specific piping condition against the examples shown below. In order to achieve accurate and repeatable per- formance install the flow meter using the recommended number of straight run pipe diameters upstream and downstream of the sensor.

  • Page 17: Series 240 In-Line Flow Meter Installation

    Series 24-HP Instruction Manual Series 240 In-Line Flow Meter Installation Install the Series 240 In-Line Flow Meter between two conventional pipe flanges as shown in Figures 2-3 and 2-4. Table 2-1 provides the recom- mended minimum stud bolt lengths for wafer-style meter body size and different flange ratings.

  • Page 18: Wafer-Style Flow Meter Installation

    Chapter 2 Installation Wafer-Style Flow Meter Installation Install the wafer-style meter between two conventional pipe flanges of the same nominal size as the flow meter. If the process fluid is a liquid, make sure the meter is located where the pipe is always full. This may require locating the meter at a low point in the piping system.

  • Page 19: Flange-Style Flow Meter Installation

    Series 24-HP Instruction Manual Flange-Style Flow Meter Installation Install the flange-style meter between two conventional pipe flanges of the same nominal size as the flow meter. If the process fluid is a liquid, make sure the meter is located where the pipe is always full. This may re- quire locating the meter at a low point in the piping system.

  • Page 20: Series 241 Insertion Flow Meter Installation

    Chapter 2 Installation Series 241 Insertion Flow Meter Installation Prepare the pipeline for installation using either a cold tap or hot tap me- thod described on the following pages. Refer to a standard code for all pipe tapping operations. The following tapping instructions are general in nature and intended for guideline purposes only.

  • Page 21: Cold Tap Guidelines

    Series 24-HP Instruction Manual Caution! When using toxic or corrosive gases, purge the line with inert gas for a minimum of four hours at full gas flow before installing the flow meter. Warning! All flow meter connec- tions, isolation valves and fittings for cold tapping must have the same or higher pressure rating as...

  • Page 22: Hot Tap Guidelines

    Chapter 2 Installation Hot Tap Guidelines Warning! Hot tapping must be performed by a trained pro- fessional. US. regulations of- ten require a hot tap permit. The manufacturer of the hot tap equipment and/or the con- tractor performing the hot tap is responsible for providing proof of such a permit.

  • Page 23: Flow Meter Insertion

    Series 24-HP Instruction Manual Flow Meter Insertion Warning! An insertion tool must be used for any installation where a flow meter is inserted under pressure greater than 50 psig. IM-24-HP The sensor head must be properly positioned in the pipe. For this reason, it is important that insertion length calculations are carefully followed.

  • Page 24: Installing Meters With A Compression Connection

    Chapter 2 Installation Installing Flow Meters with a Compression Connection* Use the following formula to determine insertion length for flow meters (NPT and flanged) with a compression process connection. The installa- tion procedure is given on the next page. Where: Insertion length.

  • Page 25: Flow Meter With Compression Type Fitting

    Series 24-HP Instruction Manual Caution! The sensor alignment pointer must point downstream, in the direction of flow Warning! To avoid serious injury, DO NOT loosen the compression fitting under pressure IM-24-HP Insertion Procedure for Meters with a Compression Connection Figure 2-7. Flow Meter with Compression Type Fitting 1.

  • Page 26: Installing Meters With A Packing Gland Connection

    Chapter 2 Installation Installing Flow Meters with a Packing Gland Connection* Use the formula below to determine the insertion depth for flow meters (NPT and flanged) equipped with an insertion tool. To install, see the next page for instructions for meters with a permanent insertion tool. For me- ters with a removable insertion tool, see page 2-14.

  • Page 27: Flow Meter With Permanent Insertion Tool

    Series 24-HP Instruction Manual Caution! The sensor alignment pointer must point downstream, in the direction of flow. Note If line pressure is above 500 psig, it could require up to 25 ft lb of torque to insert the flow meter. Do not confuse this with possible interference in the pipe.

  • Page 28: Flow Meter With Removable Insertion Tool

    Chapter 2 Installation Caution! The sensor alignment pointer must point downstream, in the direction of flow Note If line pressure is above 500 psig, it could require up to 25 ft lb of torque to insert the flow meter. Do not confuse this with possible interference in the pipe.

  • Page 29: Insertion Calculation (Meters Without Insertion Tool)

    Series 24-HP Instruction Manual 7. Tighten the packing gland nuts to stop leakage around the stem. Do not torque over 20 ft-lbs. 8. Slide the stem clamp back into position. Torque stem clamp bolts to 15 ft-lbs. Replace the stem clamp nuts and torque to 10-15 ft-lbs. 9.
  • Page 30 Chapter 2 Installation Warning! The line pressure must be less than 50 psig for installation. Caution! The sensor alignment pointer must point downstream, in the direction of flow 2-16 Insertion Procedure for Flow Meters with No Insertion Tool (Packing Gland Connection) 1.

  • Page 31: Display/Keypad Viewing Adjustment

    Series 24-HP Instruction Manual Adjusting Meter Orientation Depending on installation requirements, you may need to adjust the meter orientation. There are two adjustments available. The first rotates the posi- tion of the LCD display/keypad and is available on both in-line and inser- tion meters.

  • Page 32: Enclosure Adjustment

    Chapter 2 Installation Enclosure Adjustment (Series 240 Only) Figure 2-13. Enclosure Viewing Adjustment To avoid damage to the sensor wires, do not rotate the enclosure beyond 180-degrees from the original position. To adjust the enclosure: 1. Remove power to the flow meter. 2.

  • Page 33: Ac Power Connections

    Series 24-HP Instruction Manual Warning! To avoid potential electric shock, follow National Electric Code safety practices or your local code when wiring this unit to a power source and to peripheral devices. Failure to do so could result in injury or death.

  • Page 34: 4-20 Ma Output Connections

    Chapter 2 Installation 4-20 mA Output Connections The standard Innova-Mass Flow Meter has a single 4-20 mA loop. Two additional loops are available on the optional communication board. The 4-20 mA loop current is controlled by the meter electronics. The electron- ics must be wired in series with the sense resistor or current meter.

  • Page 35: Pulse Output Connections

    Series 24-HP Instruction Manual Figure 2-18. Non-Isolated 4–20 mA Output Using Meter Input Power Supply Figure 2-19. Isolated 4–20 mA Output using Meter Provided Power Supply Pulse Output Connections The pulse output is used for a remote counter. When the preset volume or mass (defined in the totalizer settings, see page 3-8) has passed the meter, the output provides a 50 millisecond square pulse.

  • Page 36: Non-Isolated Pulse Output Using Input Power Supply

    Chapter 2 Installation Figure 2-20. Isolated Pulse Output with External Power Supply Figure 2-21. Non-Isolated Pulse Output Using Input Power Supply Figure 2-22. Isolated Pulse Output Using Meter Provided Power Supply 2-22 Series 24-HP Instruction Manual IM-24-HP...

  • Page 37: Alarm Output Connections

    Series 24-HP Instruction Manual Alarm Output Connections One alarm output (Alarm 1) is included on the standard Innova-Mass™ Flow Meter. Two or more alarms (Alarm 2 and Alarm 3) are included on the optional communication board. The alarm output optical relays are normally-open single-pole relays.

  • Page 38: Remote Electronics Wiring

    Chapter 2 Installation Figure 2-25. Isolated Alarm Output Using Meter Provided Power Supply Remote Electronics Wiring The remote electronics enclosure should be mounted in a convenient, easy to reach location. For hazardous location installations, make sure to ob- serve agency requirements for installation. Allow some slack in the inter- face cable between the junction box and the remote electronics enclosure.

  • Page 39: Optional Input Electronics Wiring

    Series 24-HP Instruction Manual Optional Input Electronics Wiring The meter has two optional input wiring terminals. These can be used to input a Remote or Second RTD input in the case of an Energy Monitoring meter, for the input of a Remote Pressure Transducer, to pass a Contact Closure or for a Remote Density measurement to name a few.

  • Page 40: Chapter 3 Operating Instructions

    VorTek Instruments, Display/Keypad Commands EXIT Innova-Mass™ Sierra INSTRUMENTS Figure 3-1. Flow Meter Display/Keypad IM-24-HP After installing the Innova-Mass Vortex Flow Meter, you are ready to begin operation. The sections in this chapter explain the display/keypad commands, meter start-up and programming. The meter is ready to operate at start up without any special pro- gramming.

  • Page 41: Start Up

    Chapter 3 Operation Start-Up To begin flow meter operation: Note Starting the flow meter or pressing EXIT will always display the Run Mode screens. 4. Press the ENTER key from any Run Mode screen to access the Setup Verify the flow meter is installed and wired as described in Chapter Apply power to the meter.

  • Page 42: Using The Setup Menus

    Series 24-HP Instruction Manual Using the Setup Menus Programming the Flow Meter 1. Enter the Setup Menu by pressing the ENTER key until prompted for a password. (All outputs are disabled while using the Setup Menus.) 2. Use the keys to select the password characters (1234 is the factory-set password).

  • Page 43: Output Menu

    Chapter 3 Operation Series 24-HP Instruction Manual Output Menu IM-24-HP...
  • Page 44 Series 24-HP Instruction Manual Example for Setting an Output The following shows how to set Output 1 to measure mass flow with 4 mA = 0 lb/hr and 20 mA = 100 lb/hr with a time constant of 5 seconds. (All outputs are disabled while using the Setup Menus.) First, set the desired units of measurement: 1.

  • Page 45: Display Menu

    Chapter 3 Operation Display Menu ENTER Run Mode Password ENTER Display Menu Cycle Time(Sec) Number of Digits Display TC(sec) MF Vf Te Pr De T Y or N A1 A2 A3 Fl Dt E Y or N Use the Display Menu to set the cycle time for automatic screen sequencing used in the Run Mode, change the precision of displayed values, smooth the values or enable or disable each item displayed in the Run Mode screens.

  • Page 46: Alarms Menu

    Series 24-HP Instruction Manual Alarms Menu Example for Setting an Alarm The following shows how to set Alarm 1 to activate if the mass flow rate is greater than 100 lb/hr. You can check the alarm configuration in the Run Mode by pressing the the mass flow rate at which the alarm activates.

  • Page 47: Totalizer Menu

    Chapter 3 Operation Totalizer #1 Menu ENTER Run Mode Password ENTER Totalizer Menu Totaling Inactive Mass Volume Energy (unit)/Pulse xxxx Reset Total? YES or NO Use the Totalizer Menu to configure and monitor the totalizer. The totalizer output is a 50 millisecond (.05 second) positive pulse (relay closed for 50 milliseconds).
  • Page 48 Series 24-HP Instruction Manual Totalizer #2 Menu ENTER Run Mode Password ENTER Totalizer Menu Totaling Inactive Mass Volume Energy Reset Total? YES or NO Use the Totalizer #2 to Monitor Flow or Energy. Note that Totalizer #2 does not operate a relay, it is for monitoring only.

  • Page 49: Energy Menu

    Chapter 3 Operation Energy Menu – For EMS Energy Meters Only Configuration: There are several possibilities regarding the measurement of water or steam energy given the location of the meter and the use of a second RTD. The table below summarizes the possibilities: Fluid Meter Location Water...

  • Page 50: Fluid Menu

    Series 24-HP Instruction Manual Fluid Menu ENTER Run Mode Password ENTER Fluid Menu keys to access menus Flowing Fluid Liquids > Goyal-Dorais > API 2540 > Nat Gas AGA8 > Real Gas > Other Gas > STD Temp (F) xxxx STD Press (PSIA) xxxx NORM Temp (C)

  • Page 51: Units Menu

    Chapter 3 Operation Series 24-HP Instruction Manual Units Menu Use the Units Menu to configure the flow meter with the desired units of measurement. (These are global settings and determine what appears on all screens. 3-12 IM-24-HP...

  • Page 52: Time And Date Menu

    Series 24-HP Instruction Manual Time & Date Menu ENTER Run Mode Use the Time and Date Menu to enter the correct time and date into the flow meter’s memory. The parameters are used in the Run Mode and the alarm and system log files.

  • Page 53: Diagnostics Menu

    Chapter 3 Operation Series 24-HP Instruction Manual Diagnostics Menu Use the Diagnostics Menu to simulate operation and review the system files. The system log files contain time/date stamped messages including: power on, power off, programming time outs, parameter faults, incorrect password entry and other various information relative to system operation and programming.

  • Page 54: Calibration Menu

    Series 24-HP Instruction Manual Chapter 3 Operation Calibration Menu The Calibration Menu contains the calibration coefficients for the flow meter. These values should by changed only by properly trained personnel. The Vortex Coef Ck and Low Flow Cutoff are set at the factory. Consult the factory for help with these settings if the meter is showing erratic flow rate.

  • Page 55: Password Menu

    Chapter 3 Operation Password Menu ENTER Run Mode Set Password Use the Password Menu to set or change the system password. The factory-set password is 1234. 3-16 Password ENTER Password Menu keys to access menus 1234 Series 24-HP Instruction Manual IM-24-HP...

  • Page 56: Chapter 4 Troubleshooting And Repair

    Series 24-HP Instruction Manual Chapter 4 Troubleshooting and Repair Warning! Before attempting any flow meter repair, verify that the line is not pressurized. Always remove main power before disassembling any part of the mass flow meter. IM-24-HP 4- 20(1),Zero xxxx 4- 20(1),FScale xxxx 4-20(2), Zero...

  • Page 57: Column One Hidden Diagnostics Values

    Chapter 4 Troubleshooting & Repair Column One Hidden Diagnostics Values • f = vortex shedding frequency (Hz). • fi = adaptive filter – should be approximately 25% higher than the vortex shedding frequency, this is a low-pass filter. If the meter is using the Filter Control (see below) in the manual mode, fi will be displayed as fm.

  • Page 58: Column Two Hidden Diagnostics Values

    Series 24-HP Instruction Manual must be below the Low Flow Cutoff setting or the meter will have an output at no flow. • Adj. Flilter = adjustable filter. Displays the filtering in deci- bels. Normally reads zero. If this value is consistently -5 or -10, for example, the Ck or density setting may be wrong.
  • Page 59 Chapter 4 Troubleshooting & Repair • Alarm (3) Test = Used as a test to verify that the alarm circuit is functioning. When low is selected the alarm will initiate a low alarm on the output. When High is selected it will give a high alarm on the output.

  • Page 60: Analog Output Calibration

    Series 24-HP Instruction Manual o B = RTD coefficient B (-5.775e-07). o Slope = unique value for each set of electronics. o Int = unique value for each set of electronics. • RTD2 = Second RTD configuration, for special applications only.

  • Page 61: Troubleshooting The Flow Meter

    Chapter 4 Troubleshooting & Repair Troubleshooting the Flow Meter Symptom: Output at no Flow The low flow cutoff is set too low. At no flow, go to the first column of the hidden diagnostics menu and record the Lvl value. The low flow cutoff must be set above this value. 2.

  • Page 62: Symptom: No Output

    Series 24-HP Instruction Manual setting. During flow, view the f and fi values in the first col- umn of the hidden diagnostics. The fi value should be approx- imately 10-20 % higher than the f value. If you raise the Ck setting in the Calibration Menu, then the fi value will increase.

  • Page 63: Symptom: Meter Displays Pressure Fault

    Chapter 4 Troubleshooting & Repair 3. Using ESD precautions and hazardous area precautions, re- move the electronics enclosure window cover. Disconnect the temperature sensor (on the right) from the pressure / tempera- ture board (the pressure / temperature board is the second board below the microprocessor (display) board.

  • Page 64: Pressure Sensor Replacement (Series 240 Only)

    Series 24-HP Instruction Manual 1. Turn off power to the unit. 2. Locate and loosen the small set screw which locks the larger Warning! Before attempting any flow meter re- pair, verify that the 3. Locate the sensor harnesses which come up from the neck of line is not pressu- 4.

  • Page 65: Returning Equipment To The Factory

    Chapter 4 Troubleshooting & Repair 5. Reassemble in reverse order. Returning Equipment to the Factory Before returning any Innova-Mass flow meter to the factory, you must request a Return Material Authorization (RMA) number. To obtain an RMA number and the correct shipping ad- dress, contact Customer Service at: When contacting Customer Service, be sure to have the meter seri- al number and model code.

  • Page 66: Appendix A Product Specifications

    Series 24-HP Instruction Manual Appendix A Product Specifications Accuracy Process Variables Mass Flow ±1% of rate Rate over a 30:1 Volumetric Flow Rate rate over a Temperature Pressure transducer Density Notes: (1) Accuracies stated are for the total mass flow through the pipe. (2) Over 50 to 100% of the pressure transducer’s full scale.
  • Page 67 Appendix A Specifications Typical Air Minimum and Maximum Flow Rates (SCFM) Pressure 0.75 0 psig 100 psig 200 psig 1322 300 psig 1944 400 psig 1183 2568 500 psig 1472 3195 Typical Air Minimum and Maximum Flow Rates (nm Pressure 0 barg 5 barg 10 barg...
  • Page 68 Series 24-HP Instruction Manual Typical Saturated Steam Minimum and Maximum Flow Rates (lb/hr) Pressure 0.75 5 psig 100 psig 1386 200 psig 1163 2525 300 psig 1688 3664 400 psig 2220 4816 500 psig 1170 2760 5988 Typical Saturated Steam Minimum and Maximum Flow Rates (kg/hr) Pressure 0.75 0 barg...
  • Page 69 Appendix A Specifications Probe Seal Compression Fitting Packing Gland Packing Gland with Removable Retractor Packing Gland with Permanent Retractor Pressure Transducer Ranges Power Requirements Display Series 24-HP Instruction Manual 241 Pressure Ratings Process Material Connection 2-inch MNPT 316L SS 2-inch 150 lb flange, 316L SS DN50 PN16 2-inch 300 lb flange,...
  • Page 70 Series 24-HP Instruction Manual Pocess Fluid and Ambient Temperature Output Signals Alarms Totalizer Wetted Materials Enclosure Electrical Ports Mounting Connections Mounting Position Certifications IM-24-HP Appendix A Specifications Process Fluid: Standard temperature sensor: –40° F to 500° F (–40° C to 260° C). High temperature sensor: to 750°...

  • Page 71: Appendix B Glossary

    Series 24-HP Instruction Manual Appendix B Glossary A B C D ACFM ASME Bluff Body Cenelec Compressibility Factor E F G H Flow Channel Flow Profile Ft^2 Ft^3 IM-24-HP Cross sectional area. Actual Cubic Feet Per Minute (volumetric flow rate). American Society of Mechanical Engineers.
  • Page 72 Appendix B Glossary I J K L In-Line Flow Meter Insertion Flow Meter Joule M N O P μ Δ ρ ρ Permanent Pressure Loss Piezoelectric Crystal PRTD psia psig Series 24-HP Instruction Manual A flow meter which includes a short section of piping which is put in-line with the user’s piping.
  • Page 73 Series 24-HP Instruction Manual Q R S T Rangeability Reynolds Number or Re scfm Shedder Bar Strouhal Number or St Totalizer Traverse U V W X Y Z Uncertainty VORTEX IM-24-HP Flow rate, usually volumetric. Highest measurable flow rate divided by the lowest measurable flow rate.

  • Page 74: Appendix C Fluid Calculations

    Series 24-HP Instruction Manual Appendix C Fluid Calculations Calculations for Steam T & P When “Steam T & P” is selected in the “Real Gas” selection of the Fluid Menu, the calculations are based on the equations below. Density The density of steam is calculated from the formula given by Keenan and Keys.

  • Page 75: Calculations For Gas ("Real Gas" And "Other Gas")

    Appendix C Fluid Calculations Calculations for Gas (“Real Gas” and “Other Gas”) Use this formula to determine the settings for “Real Gas; Gas” selections and “Other Gas” selections entered in the Fluid Menu. The calculations for gas were taken from Richard W. Miller, Flow Measurement Engi- neering Handbook (Second Edition, 1989).

  • Page 76: Calculations For Liquid

    Series 24-HP Instruction Manual Calculations for Liquid Use this formula to determine the settings for “Goyal-Dorais” selections and “Other Liquid” selections entered in the Fluid Menu. The liquid cal- culations were taken from Richard W. Miller, Flow Measurement Engi- neering Handbook (Second Edition, 1989). Density The liquid density is found using the Goyal-Doraiswamy Equation.

  • Page 77: Appendix D Hart Commands With Dd Menu

    Series24-HP Instruction Manual Appendix D HART Commands with DD Menu Online Menu 1 Device Setup 1 Display Unit 1 Mass Flo Unit 2 Vol Unit 3 Temp Unit 4 Line Press Unit 5 Dens Unit 6 Totalizer Units 7 Std & Norm Cond 1 Fix Analog Output 2 Trim Analog Output 3 Configure AO1...
  • Page 78 Appendix D HART Commands Appendix D HART Commands without DD Menu Online Menu 1 Device Setup 1 Process Variables 2 PV 3 PV AO 2 Diag/Service 3 Basic Setup 4 Detailed Setup 5 Review 4 PV LRV 1 PV LRV 5 URV 2 PV URV Series24-HP Instruction Manual...

  • Page 79: Appendix E Modbus Commands

    Overview This document describes the preliminary implementation of the Modbus communication protocol for use in monitoring common process variables in the Sierra Innova-Mass® Vortex flow meter. The physical layer utilizes the half-duplex RS-485 port, and the Modbus protocol. Reference Documents The following documents are available online from www.modbus.org.

  • Page 80: Modbus Order

    Appendix E MODBUS Commands Modbus Units The Modbus Units menu is to control what units, where applicable, the meter’s variables will be displayed in. Internal – these are the base units of the meter, °F , psia, lbm/sec , ft Display –...

  • Page 81: Register Definitions

    Series 24-HP Instruction Manual there is an informal register numbering convention derived from the original (now obsolete) Modicon Modbus protocol specification, and used by many vendors of Modbus capable products. Registers Usage 00001–09999 Read/write bits ("coils") 10001–19999 Read-only bits ("discrete inputs") 30001–39999 Read-only 16 bit registers ("input regis- ters"), IEEE 754 floating point register...
  • Page 82 Appendix E MODBUS Commands gramming Output Menu’s “Modbus Units” item. The display units strings may be examined by accessing their associated registers. Each of these units string registers contain 2 characters of the string, and the strings may be 2 to 12 characters in length with unused characters set to zero.
  • Page 83 Series 24-HP Instruction Manual The following registers contain the display units strings: Registers Variable 32007-32012 Volume flow units 32001-32006 Mass flow units 32025-32030 Temperature units 32019-32024 Pressure units 32031-32036 Density units 32013-32017 Energy flow units Function codes 03 (read holding registers) and 04 (read input regis- ters) are the only codes supported for reading these registers, and function codes for writing holding registers are not implemented.
  • Page 84 Appendix E MODBUS Commands The status of the three alarms may be monitored via the Modbus Read Discrete Input command (function code 02). The value returned indicates the state of the alarm, and will be 1 only if the alarm is enabled and active. A zero value is transmitted for alarms that are either disabled or inactive, Registers 10001...

  • Page 85: Normal Response Message Format

    Series 24-HP Instruction Manual The start address is equal to the desired first register number minus one. The addresses derived from the start address and the number of registers must all be mapped to valid defined registers, or an invalid data address exception will oc- cur.
  • Page 86 Appendix E MODBUS Commands ter definitions 01 04 18 00 00 03 E8 00 00 7A 02 6C 62 00 00 41 BA 87 F2 3E BF FC 6F 42 12 EC 8B 4D D1 01 Device address 04 Function code 18 Number of data bytes = 24 00 00 03 E8 Serial number = 1000 (unsigned long) 00 00 7A 02 Totalizer = 31234 lbm (unsigned long)
  • Page 87 Series 24-HP Instruction Manual The unit responds with an identical message to that transmitted, and the totalizer is reset. If the “coil” is turned off as in the following message, the response is al- so identical to the transmitted message, but the totalizer is not affected. 01 05 00 00 00 00 CD CA 01 Device address 05 Function code 5 = write single coil...
  • Page 88 Sierra 24-HP Instruction Manual Appendix F ATEX-IECEx Specifications NEN EN IEC 60079-0 (2004) Electrical Apparatus for explosive gas atmospheres General Requirements NEN EN IEC 60079-1 (2007) Electrical Apparatus for explosive gas atmospheres Flameproof enclosures “d” NEN EN IEC 61241-0 (2006)
