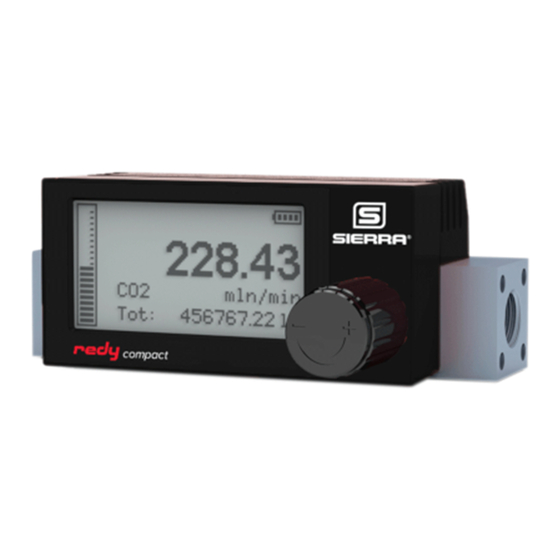

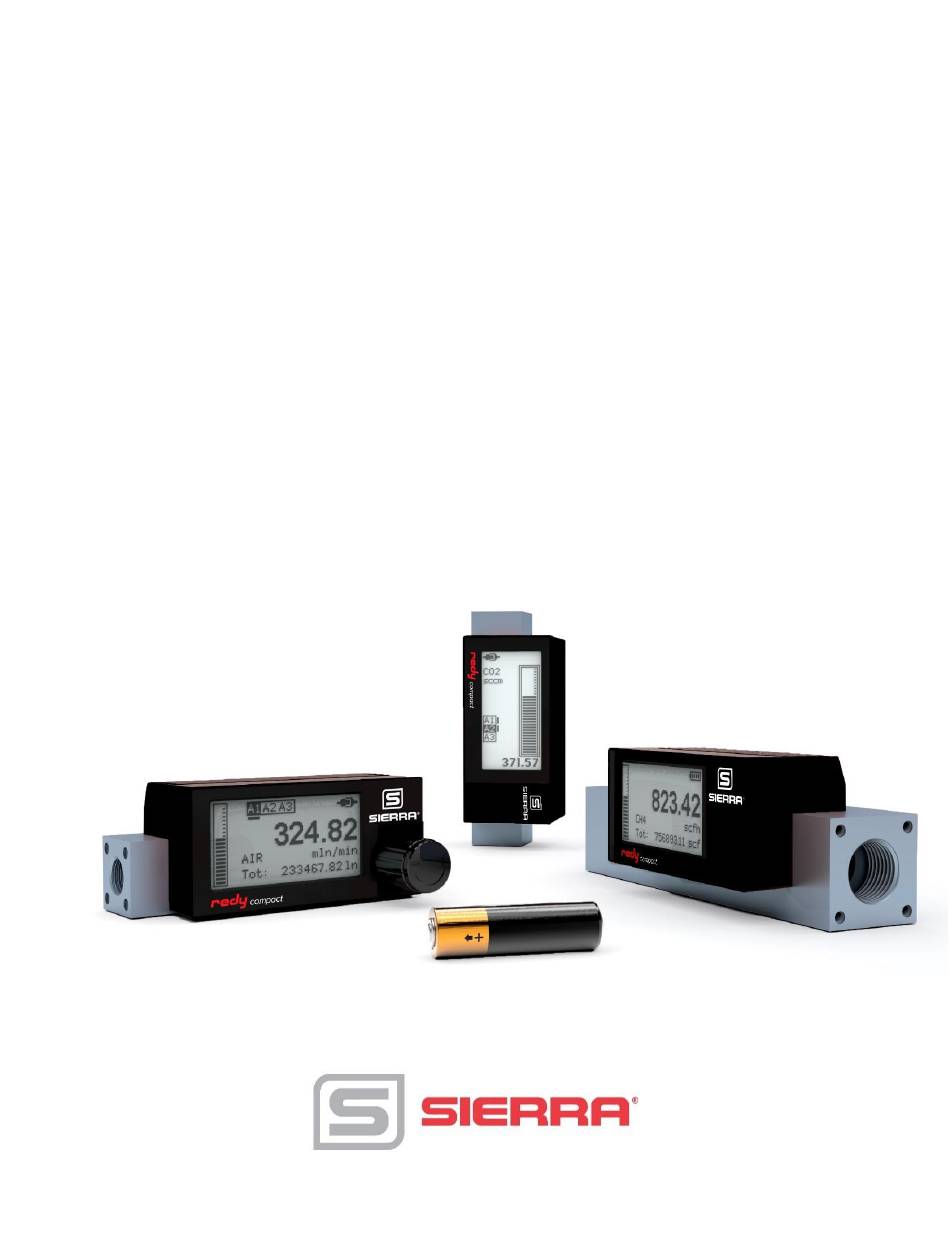

- Page 1 RedyCompact™ Series Thermal Mass Flow Meters and Manual Regulators for Gases RedyCompact™ Meter (GCM) RedyCompact™ Regulator (GCR) RedyCompact™ Meter with Alarm Module (GSC) RedyCompact™ Regulator with Alarm Module (GCA) Instruction Manual Part Number: IM-RedyCompact V1.Compact.EN A2-2...
- Page 2 Sierra Instruments. The content of this manual is provided for information only and may be altered without prior notice. Sierra Instruments assumes no responsibility or liability for any errors or inaccuracies in this manual. For the latest information on our products, visit our website www.sierrainstruments.com...
- Page 3 Warnings and Cautions “Warning,” “Caution,” and “Note” statements are used throughout this manual to draw your attention to important information. Symbol Key Symbol Symbol Descripition Meaning “Warning” statements appear with information that is important to protect people and equipment from damage. Pay very close Warning attention to all warnings that apply to your application.
- Page 4 The responsibility for safe operation lies with the user and designer of the facilities. Important Customer Notice- Oxygen Service Sierra Instruments, Inc. is not liable for any damage or personal injury, whatsoever, resulting from the use of Sierra Instruments standard mass flow meters or controllers for oxygen gas. You are responsible for determining if this mass flow meter or controller is appropriate for your oxygen application.
- Page 5 For urgent phone support you may call (800) 866-0200 or (831) 373-0200 between 8:00 a.m. and 5:00 p.m. PST. In Europe, contact Sierra Instruments Europe at +31 20 6145810. In the Asia-Pacific region, contact Sierra Instruments Asia at +86-21- 58798521.
-
Page 6: Register Your Product Today
Three (3) Year Warranty (Sierra MEMS Therma Mass Flow Sensor: RedySmart and RedyCompact Brands) All Sierra products are warranted to be free from defects in material and workmanship and will be repaired or replaced at no charge to Buyer, provided return or rejection of product is made within a reasonable period but no longer than three (3) years for calibration and non-calibration defects, from date of delivery. -
Page 7: Table Of Contents
Table of contents Register Your Product Today Introduction 1.10. Features of RedyCompact Thermal Mass Flow Meters 1.11. Scope of Warranty 1.12. Instructions and Warnings 1.13. Documentation and Cables Supplied 1.14. The Measurement Principle 1.15. Real, Standardized and Normalized flow 1.16. CMOS technology 1.17. - Page 8 Dimensional Drawings ¼” In Inches 6.12. Dimensional Drawings ½” In mm 6.13. Dimensional Drawings ½” In Inches 6.14. 6.15. Type Code Overview 6.16. Wetted Parts RedyCompact Series 6.17. Overview Default Settings Overview Menu RedyCompact Detailed Warranty Statement for RedySmart & RedyCompact Brands Index...
-
Page 9: Introduction
Please contact Sierra Instruments” Customer Service if you have questions about any aspect of the product (s), you may call (800) 866-0200 or (831) 373-0200 between 8:00 a.m. and 5:00 p.m. PST. In Europe, contact Sierra Instruments Europe at +31 20 6145810. In the Asia-Pacific region, contact Sierra Instruments Asia at +86-21-58798521. -
Page 10: Instructions And Warnings
• Contamination due to improper sealing • Contamination due to impure gases or penetration of liquids • Damage to electronic components due by over-voltage or electrostatic discharges, and corrosion damage due to aggressive environments • Functional failure due to incorrect operation or faulty parameterization •... -
Page 11: Documentation And Cables Supplied
Documentation and Cables Supplied 1.13. A printed quickstart quide is shipped together with each device. However, we recommend to visit our website to obtain the latest version of the manual and the latest firmware version for the RedyCompact. Every device comes with a USB A to USB Micro-B cable. This cable can be used to power the unit and to upgrade the firmware. -
Page 12: Real, Standardized And Normalized Flow
he temperature difference is related non-lineary to the mass flow, with very high repeatability. The electronics will, based on the calibration, convert this temperature difference in a linear and proportional indication of the mass flow of the gas. Real, Standardized and Normalized flow 1.15. -
Page 13: Cmos Technology
0.35% per K. Important Note Please note that Sierra standard uses the following densities for their main 3 gasses: Air: 1.293 gr/m3, N2: 1.2504 gr/m3, O2: 1.429 gr/m3 (All at 0°C and 1013.25 mbar absolute). If you use other densities or need additional information for other gasses, please contact the factory. -
Page 14: Block Diagram
Block Diagram 1.17. The following GCM block diagram shows the structure of the device. The block diagram does not show the optional manual control/needle valve (model GCR) that would normally be placed on the outlet of the unit. Power conditioning Interface Touch Display Micro processor... -
Page 15: General Device Specifications
2. General device specifications Media (real gas calibration): Air, O2*, N2*, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request) & N are calibrated with air. Accuracy: ±2.0% of full scale; Ranges > 200 ln/min ±3.0% of full scale (only G¼”... -
Page 16: Safety
Safety 2.10. Test Pressure: 16 Bara (232 psia) Leak rate to external: 1 x 10 mbar*l/s He Protection class: IP-50 EN 61326-1 Electrical Data for Meter GCM and Regulator 2.11. Power supply RedyCompact meter & regulator Standard AA Supply Voltage battery or USB micro-B power supply (DIN 62684) Option: External power 8...30 VDC , 120 mA. -
Page 17: Usb Interface
USB Interface 2.13. The unit has a female USB micro-B connection (DIN 62684) that can be used as an external power supply and to upgrade the firmware. USB micro-B is the same connector you find on older Android and Windows portable phones, you can use the charger of your telephone to power the RedyCompact. -
Page 18: Optional Modules
Optional Modules 2.15. As an additional option you can purchase a power supply or an alarm module. 2.15.1 Power Supply Module The power supply module, is provided with a voltage from 8-30 VDC , will power the unit. The unit comes with a 2-meter cable. 2.15.2 Alarm Module The alarm module provides three... -
Page 19: Calibration
If the gas or gas composition is different than the gas that the unit was calibrated for, the unit will not measure accurately. It is possible to program up to three different gases and gas mixtures, but this needs to be done at the factory or at a Sierra Instruments’ certified calibration center. Please... -
Page 20: Pressure Loss
note that the K-factors as used in the traditional capillairy MFM/MFC cannot be used for CMOS mass flow meters. Please contact the factory for additional information. Note Please note that, among other effects, the zero-point error (offset display) will be higher if the device is not operated with the type of gas, for which it had been calibrated. -
Page 21: Filter Settings
Filter settings 2.22. The filter settings smoothens the reading of pulsating or noisy flows. It can be set through the set- up menu. Higher filter settings will slow down the response time of the unit. Please always first try to find and remove the cause of your noisy or pulsating flow e.g. add volume to your system. -
Page 22: Installation And Commissioning
3. Installation and Commissioning Mounting Position and Mounting Location 3.10. Although the recommend mounting position is horizontal, the unit can used be upright, vertical or upside down. With a vertical mounting position, dependent on the type of gas and at pressures above 5 bara (72 psia, 500 kPa(abs)), a zero-point offset can be possible. -
Page 23: Fittings And Filters
• The size of the pipe must be matched to the measuring/control device. A diameter that is too small results in an increased pressure drop. • Check for any leaks before commissioning the devices. • For maintenance work, we recommend that a bypass system is used. This is particularly important where the gas supply must not be interrupted. -
Page 24: Electrical Power Supply
In pressurized-air applications using compressors, the air must be dry and free of oil. Please ensure that a suitable processing unit is located before the devices. In the case of gases from cylinders, in general no filter is needed. For more information, see chapter Maintenance. -
Page 25: How To Replace The Battery
How to replace the battery? 3.15. Warning Before replacing or installing the battery, disconnect any external power supply. The battery is placed in a compartment mounted above the body and connected to the housing that contains display and electronics. The battery compartment has three notches on each side. -
Page 26: Warm-Up Time
Warm-up time 3.16. All instruments of red-y line are ready for use within seconds of connecting the power. There is no significant warm-up time (<5 sec). -
Page 27: Operation
4. Operation Warning In case of incorrect handling of the flow meter the measurement function can be impaired. Figure 7: Horizontal Mode Figure 8 Vertical Mode... -
Page 28: Introduction
4.10. Introduction 4.10.1 Power Up Warning Before using the device verify that it is suitable for your application and check gas, range, pressure and temperature. You find these parameters on the calibration sheet. If any of these parameters deviate from your application please contact the manufacturer. - Page 29 To use swipe control, press the screen while moving your finger in one direction. You can move your finger to the top (“swipe up”), to the bottom (“swipe down”) to the left (“swipe left”) or to the right (“swipe right”). The minimum distance to move is about one centimetre. Since it’s a pressure sensitive touch screen swiping requires slight pressure.
- Page 30 4.10.6 Home Screens In horizontal home screen mode, the following home screens are available: (no icon) Overview Flow Total Alarm (A1, A2, A3) In vertical home screen mode a single home screen is available only. Every home screen displays the following information: Power Supply An external power supply icon (if powered by an external power supply) or a battery icon (if powered by battery) indicating the power source.
- Page 31 4.10.7 Menu Navigation The device can be configured for specific applications and preferences by using a graphical menu. This menu is entered from any home screen by a long press or by using swipe control (swipe up or swipe down). The menu is always displayed in horizontal orientation. To access the menu, the password must be entered if that feature is enabled (see 4.12.6 Security):...
- Page 32 The menu is operated by using the following buttons: The selection is moved up and down using the arrow buttons. A short press on an arrow button moves the selection by one position. A long press on an arrow button selects the first menu item in list or the last menu item in list.
- Page 33 The device selects between economy and performance measurement mode automatically depending on the power supply. This behavior can be changed and the measurement mode can be set manually. In that case an indicator shows whenever the measurement mode deviates from the default behavior: ECO: External power supply but operating in economy mode PERF: Battery power supply but operating in performance mode Sensor error...
-
Page 34: Main Menu
Main Menu 4.11. Important Note The menu is only available in horizontal mode. Below is an overview of the main menu structure. A complete overview of the entire RedyCompact menu can be found on the last pages of this manual. The home screens are Touch the home Home screen 1... - Page 35 4.11.2 Alarm Menu If you have installed the optional alarm module and once the alarm function is selected from the main menu, you can select which of the 3 alarms (A1, A2 or A3) you want to configure. Please note that alarm 3 has a different contact type and capacity than alarms 1 and 2 (see diagram in 2.15 Optional Modules).
- Page 36 Function With this submenu you can set the function of the alarm (Options: Flow high, low or window and totalizer). For more details see next page. Configure In this menu item you can set the details of the alarm like it alarm value(s), how the alarm is reset, Alarms delays, hysteresis and more.
- Page 37 4.11.2.3 Configure Alarm Menu Once you defined the function of an alarm you can define the details of the operation in this menu Numerical entry screen If you have to enter numeric values (Like an alarm value (Threshold)) you will see a little keyboard on the screen where you can enter a numerical value.
- Page 38 Hysteresis (Default: 0=OFF) The hysteresis is the difference between the value where the alarm turns on from turning off and the value where it turns off from turning on. This difference is defined in % of full scale. In figure 10 an example of a 50% threshold value high alarm with a 10% hysteresis.
- Page 39 Reset Trigger (Default: Falling edge): □ Rising edge When you use input 1 or 2 as an alarm reset, you can set exactly □ Falling edge □ on which action the alarm is reset. If for example the input is a Both edges □...
- Page 40 apply power again the saved value will be restored (Unless you activated the “reset on start” feature). Please note that if the flow rate exceeds the full scale of the unit (overflow), the totalized value will not be correct. Even if there is an overflow the totalizer operation will continue normally. However, since the flow value is limited the totalizer is totalizing the limited flow value only.
- Page 41 If required this frequency can be increased or reduced in this setting (Minimum value is 10 seconds). Warning Be aware that the lowering this value will decrease the EEPROM life expectancy. Sierra Instruments does not provide any warranty on the lifetime of the EEPROM.
- Page 42 4.11.4 Gas Selection The RedyCompact can store up to 3 different curves for different gases □ Air 300 ln/min or gas mixtures in its memory. If you have ordered more than one gas □ N2 300 ln/min when you purchased this unit, you can select the required gas here. The □...
-
Page 43: Settings
4.12 Settings In the settings menu you can adjust the user variables. See the chapters below for more details. 4.12.1 Measurement The RedyCompact has 2 measurement modes. When you set the measurement to “Auto”: 1) When on battery it takes a flow sample every 300 milliseconds and due to that extends the battery life 2) When on external power (24 VDC or USB) it takes a flow sample every 40 millisecond and due to that will have a faster response and a more... - Page 44 4.12.2.2 Backlight In this menu you can select the brightness of the backlight. The backlight is only available if you use an external power (USB or 24 VDC ). 4.12.2.3 Orientation The screen can be orientated (turned) in the most convenient position for reading (upside down or vertical).
- Page 45 4.12.2.6 Touch Input In this menu you can activate or deactivate swipe control and short touch Swipe control navigation: Short touch navi Swipe control: Ability to operate the device by swipe movements Short touch navigation: Ability to activate a selected menu item by touching the menu item text.
- Page 46 4.12.3 Units In the “Units” menu you can set the required engineering units for the totalizer and the flow indication. If there is a unit selected with too many digits, the device will show: “Out of range” on the display. If you select a totalizer unit that would create too many digits the totalizer will show 9999999.
- Page 47 when the flow shows quick changes. So when the flow is quickly rising or falling it will take less averages in it calculations. On this way the unit will react faster to changes in the flow. Averaging filter The averaging filter is a “moving average filter”. It calculates the average value of a number of measurements and shows the average on the display.
- Page 48 Notes: 1. Because the value is right-aligned, it is possible that depending on the actual flow you can see a change in the number of digits behind the decimal point. For example if the flow is changing from 2 to 2.01 and then 2.1 you can see: 2.0, 2.01 and 2.1 on the display. 2.
- Page 49 4.12.7 Battery Auto Off To extend the battery life to the maximum we recommend that you set this menu so that, when powered with a battery, the RedyCompact will switch off automatically after the indicated number of minutes. Please note that this menu has no effect if the unit is powered by USB or the external 24 VDC .
-
Page 50: Maintenance
Maintenance When operated properly and with the use of clean and dry gas, RedyCompact devices do not require any routine maintenance. There are no internal moving parts in the measurement part of the device. However, we recommend that the calibration is checked after 12 months. If your RedyCompact is still within tolerance, this time interval can be extended. -
Page 51: Returns
Please follow these easy steps to return your instrument for factory service: 1. To obtain a Return Materials Authorization (RMA) number from the Sierra Instruments to http://www.sierrainstruments.com/rma/new.php to create a Sierra Account. 2. Once you have created an account, click on the Submit New RMA tab and fill in the RMA form and follow the instructions. -
Page 52: Firmware Upgrade
Pack your instrument carefully. Use the original packaging and foam or bubble wrap (packing peanuts NOT recommended) and include a copy of the RMA form (complete with Sierra supplied RMA number) with the unit(s). Firmware Upgrade 5.12. Sierra Instruments continues to improve and add features to the firmware. Firmware updates are available free of charge on our website www.sierrainstruments.com. - Page 53 Note Alarm configurations set in a previous firmware version will not be affected by a firmware update.
-
Page 54: Troubleshooting
6. Troubleshooting In the following table we have compiled fault symptoms, their possible causes and suitable measures you can take. If you do not recognize your fault symptom, or the proposed measures were not successful, please consult your sales partner. If you are planning to return a product, please refer to the chapter 5.11 Returns. -
Page 55: Pressure Loss
Calibration issue with touch screen Apply calibration procedure for touch screen. work properly 4.12.2.7 Recalibrate If you need any support please contact Sierra’ Customer Service team at https://www.sierrainstruments.com/techsupport/techsupport.html. Pressure Loss 6.10. The following figures show examples of the pressure drop of a RedyCompact (measuring... -
Page 58: Dimensional Drawings ¼" In Mm
“P” referes to the optional fittings length. Fittings are options only. Standard process connection is female ¼” BSPP tread. You can find detailed information for the individual products on our homepage www.sierrainstruments.com. If additional information is needed, please consult your Sierra Sales Representative. -
Page 59: Dimensional Drawings ¼" In Inches
“P” referes to the optional fittings length. Fittings are options only. Standard process connection is female ¼” BSPP tread. You can find detailed information for the individual products on our homepage www.sierrainstruments.com. If additional information is needed, please consult your Sierra Sales Representative... -
Page 60: Dimensional Drawings ½" In Mm
“P” referes to the optional fittings length. Fittings are options only. Standard process connection is female ½” BSPP tread. You can find detailed information for the individual products on our homepage www.sierrainstruments.com. If additional information is needed, please consult your Sierra Sales Representative... -
Page 61: Dimensional Drawings ½" In Inches
“P” referes to the optional fittings length. Fittings are options only. Standard process connection is female ½” BSPP tread. You can find detailed information for the individual products on our homepage www.sierrainstruments.com. If additional information is needed, please consult your Sierra Sales Representative... -
Page 62: Type Code Overview
Type Code Overview 6.15. -
Page 63: Wetted Parts Redycompact Series
Wetted Parts RedyCompact Series 6.16. Instrument RedyCompact series Gerät Body 1.4404 (316L) or aluminium Grundkörper Body: O-Rings FKM (Standard), EPDM (option) Grundkörper: O-Ringe Flow divider 1.4305 Strömungsteiler Control valve 1.4305/1.4105/1.6908 Regelventil Control valve: O-Rings FKM (Standard), EPDM (option) Regelventil: O-Ringe... -
Page 64: Overview Default Settings
Overview Default Settings 6.17. Group Subgroup Name Options Default Remarks Totalizer Configure Home screen use Non- Resettable Resettable Gas selection Gas 1 Gas 2 Gas 3 Settings Measurement Auto Economy Performance Settings Display Home screens Overview (multiple choice) Flow Totalizer Alarm (A1) Alarm (A2) Alarm (A3) - Page 65 Settings Resolution Flow 0.0001 0.001 0.01 Auto 1000 10000 Settings Resolution Totalizer 0.0001 0.001 0.01 Auto 1000 10000 Settings Security Enable password Settings Battery auto off Disabled 15 minutes 30 minutes 60 minutes 1) If ordered for air or N or O and the unit is calibrated with air and all have the same operating conditions, range and dynamics, all these 3 gasses will be programmed.
-
Page 67: Overview Menu Redycompact
Overview Menu RedyCompact The home screens are Touch the home Home screen 1 Home screen 2 Home screen 3 Alarm screen A1** Alarm screen A2** Alarm screen A3** Swipe or touch screen less than 1 sec to only visible if they are button (Right top) in All information Flow screen... - Page 69 Alarm menu (Only valid if the Alarm Module has been install) The home screens are Home screen 1 Home screen 2 Home screen 3 Alarm screen A1** Alarm screen A2** Alarm screen A3** only visible if they are Touch screen less than 1 sec to move to Info and reset All information Flow screen...
-
Page 70: Detailed Warranty Statement For Redysmart & Redycompact Brands
In addition to Sierra’s standard three (3) year manufacturing warranty on all MEMS mass flow instruments produced, Sierra also offers a Lifetime No-Drift Sensor Warranty. Sierra defines no-drift as less than 1% of full scale over the life of the instrument. Therefore, if drift of greater than 1% of full scale occurs over the sensor’s lifetime, the sensor and/or entire instrument will be repaired or replaced and recalibrated free of charge. - Page 71 Sierra shall not be liable for installation charges, for expenses of customer for repairs or replacement, for damages from delay or loss of use, or other indirect or consequential damages of any kind. Sierra extends this warranty only to Sierra products properly used and properly installed for the particular application for which...
-
Page 72: Index
9. Index Accuracy ..................15 K-factors ................... 20 alarm contacts ..............18, 19, 55 alarm module ..............9, 18, 32, 40 alarm reset ..................39 Maintenance / Calibration check ............. 50 Alarms and notifications ..............32 measurement principle ..............11 Appendix ..................
