RMW10

4. Operation

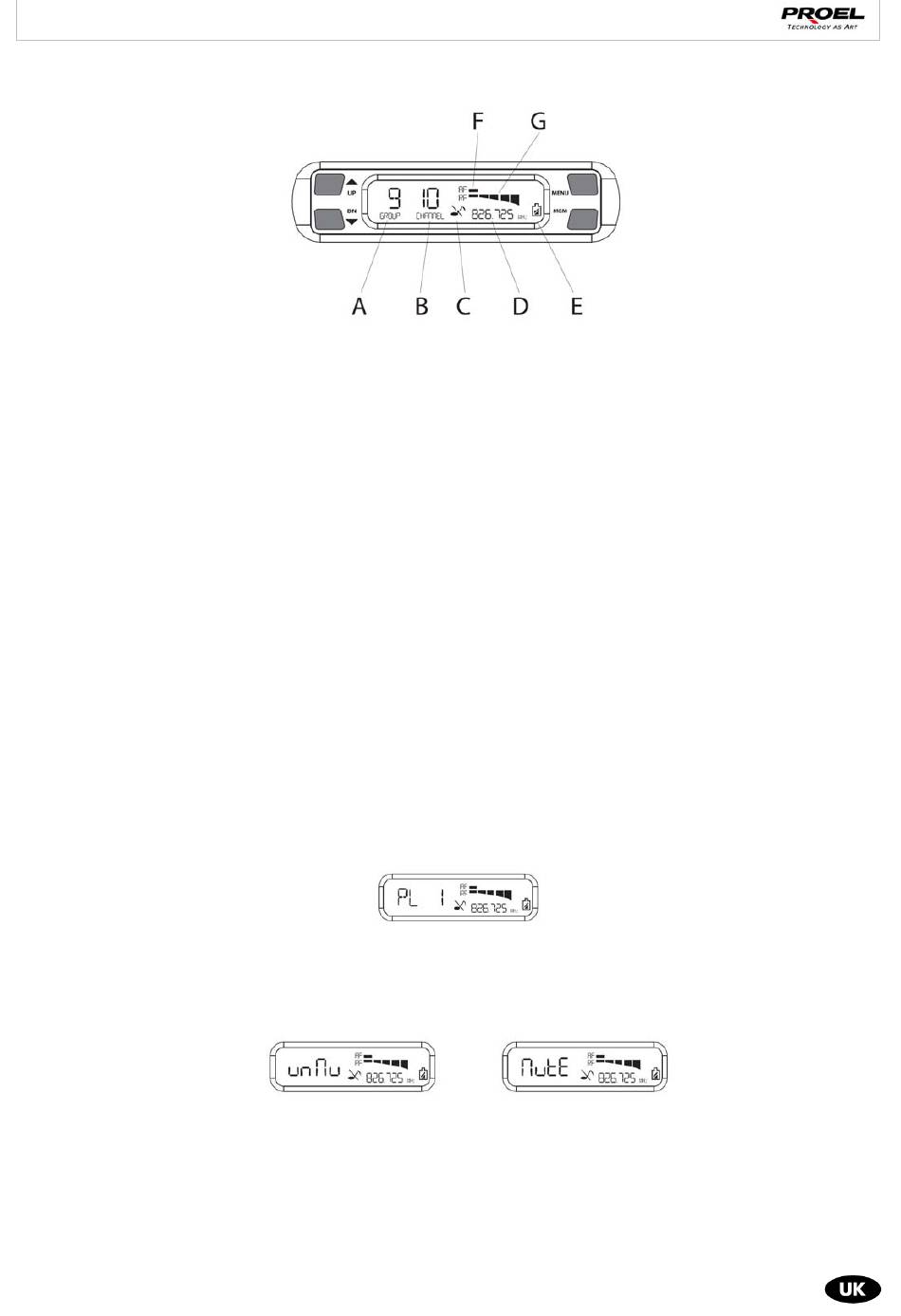

a) Receiver RMW10

A: Frequency group.
B: Channel.
C: Mute (symbol is displayed when function mute is activated).
D: Selected frequency.
E: Transmitter Battery charge level.
F: Audio in input level.
G: Level of the signal received.

Automatic scan

Pressing the MEM key for one second, the full band automatic scan is activated. The scan ends when a signal is located. The screen will
indicate this frequency. Press MEM to memorise the frequency. To continue the scan press UP.

Manual frequency selection

Press MENU key to select the GROUP function. Select the frequency group desired using keys UP and DOWN. The selected GROUP can be
memorised by pressing the MEM key.
Press the MENU Key two times to select the CHANNEL function. Select the frequency group desired using keys UP and DOWN. The selected
CHANNEL can be memorised by pressing the MEM key.

Output level control

Select line level mode pressing the MENU Key 3 times. The display indicates PL and the level current value:
Select the level using the UP and DN keys and confirm using MEM key.

Mute function

Press the MENU key 4 times to select the MUTE function. The UP and DN keys will select activate or disable MUTE. Confirm your choice with
the MEM key . When the Mute function is active there will be no audio signal output.
0 = 500mV - 1 = 300mV - 2 = 150mV
MUTE FUNCTION OFF
20
MUTE FUNCTION ON
