RMW10

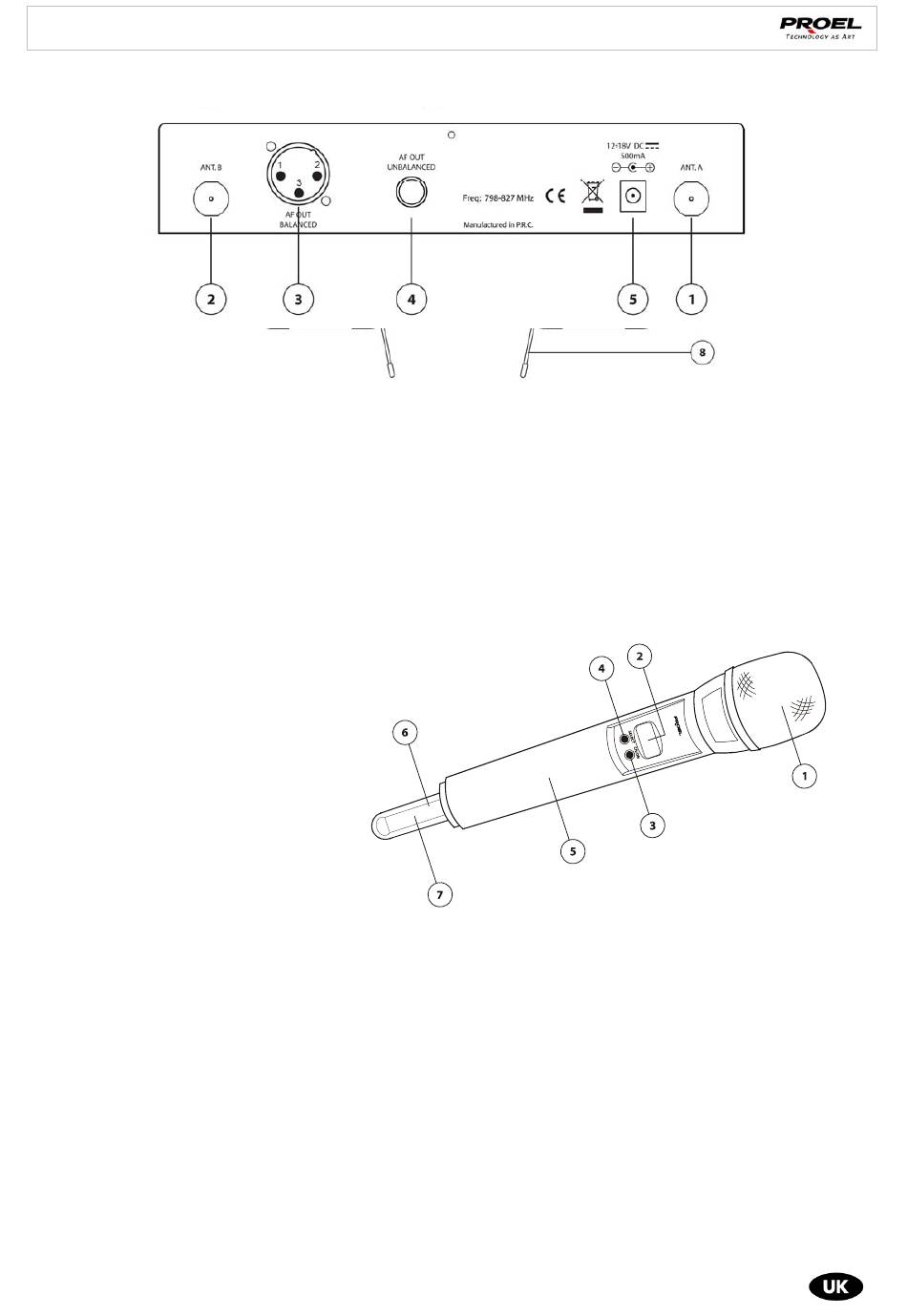

b) Rear Panel RMW10

1. Antenna A input
Insert one of the two antennas (included) and secure by screwing the external metal ring. The antenna should be in vertical
position.
2. Antenna B input
See point 1
3. XLR Balanced audio output
This output recommended for long distance between RMW10 and the mixer. Use a balanced, shielded cable and female XLR
connector.
4. 6.3 Jack Mono Unbalanced audio output
The unbalanced output should only be used if the RMW10 and the mixer are in close proximity. Use a jack mono 6.3 and a
shielded unbalanced cable.
5. VDC Power Connector
Connect the power supply cable to the VDC after having connected the plug to the main power supply (220-230Vac).

c) Handheld Transmitter WMP

1. Grille for microphone capsule protection
2. Display
Displays the Antenna symbol (when TX and RX are coupled), the operating frequency, battery level, channel and frequency
group, (PL) transmission power and LOCK.
3. CH/ON
Press the Transmitter switch for one second. The transmitter displays the current frequency and the battery charge level. Press
this switch again to pass in a cyclic mode to the following functions: CHANNEL - GROUP - PL - LOCK / UNLOCK. To disable the
transmitter press and keep pressing for one second.
4. SELECT
Allows the selection of the settings in the Function mode.
5. Battery location
Unscrew the microphone body to insert two AA 1,5V batteries (rechargeable as option) respecting the polarity.
6. Jack input for battery recharge
To recharge rechargeable batteries, connect the battery charger (optional) to this jack input.
7. Antenna
Ensure that the antenna is not covered (by hands for example), to avoid signal attenuation, loss or noise.
