MAINTENANCE AND DISCLAIMER ....................5 POWER SUPPLY..........................5 WARNING POSSIBLE HEARING DAMAGE!..................5 USER’S WARNINGS AND CE CONFORMITY..................6 INTRODUCTION ..........................7 DESCRIPTION ...........................7 RM3000TR TRANSMITTER........................7 RM3000R BODY PACK RECEIVER ......................8 OPERATING INSTRUCTIONS ......................10 BATTERY REPLACEMENT ........................10 SET UP A SINGLE SYSTEM .......................10 SET UP A SECOND RECEIVER......................11 SET UP A SECOND SYSTEM ......................11...
Proel products have operating warranty and comply their specifications, as stated by manufacturer.. Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the...
Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.
LICENSING INFORMATION: Frequency Range of RM3000TR: 863 – 865 MHz. RM3000TR is capable to exceed the RF power of short range devices in some countries: for all European countries the RF selector must be set always on minimum RF power.

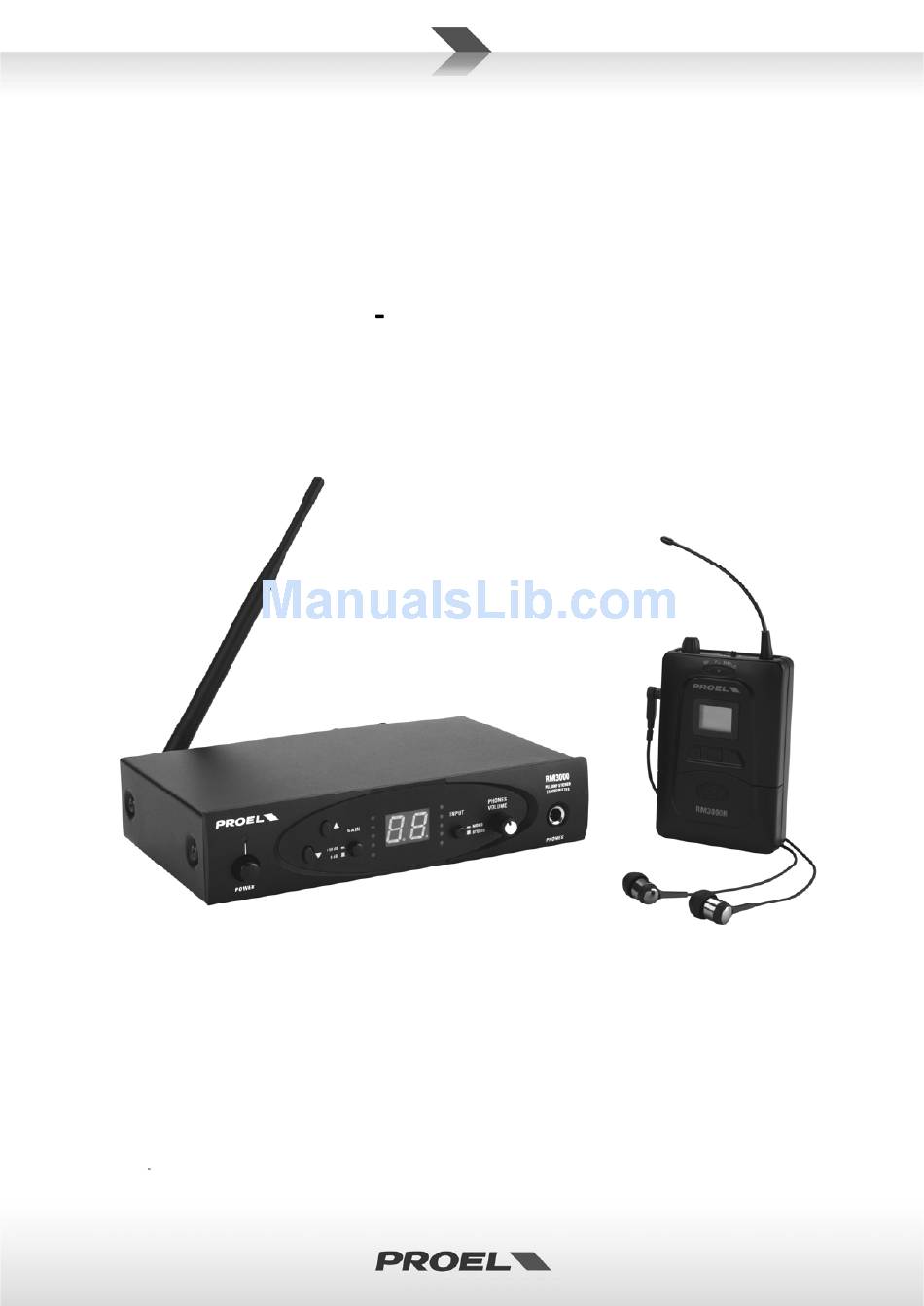

All our products are CE approved and designed for continuous use in professional systems. DESCRIPTION The RM3000TR is a UHF PLL controlled Wireless In ear Monitoring System providing a reliable and high quality signal transmission. RM3000TR features 2 units: RM3000 transmitter and RM3000R body pack receiver. The system is equipped...
7. R OUTPUT (XLR output BALANCED) Same as above for the R INPUT. 8. POWER ON/OFF switch: the LED shows the ON or OFF status of the transmitter. 9. PHONES Auxiliary headphones output. 10. PHONES VOLUME Volume potentiometer for the auxiliary headphones output. 11.
Page 9
(11) switch, where L and R signals are combined at the transmitter inputs). Channel number and its corresponding frequency: use the same channel as in the RM3000TR transmitter. You can choose any of the 8 channels available in the 863 865 MHz band.
OPERATING INSTRUCTIONS BATTERY REPLACEMENT For the Battery replacement use always 2x 1.5V AA size LITHIUM or ALKALINE type for the best performances. You can use also rechargeable batteries but in this case the operating time is shorter. Good quality ALKALINE batteries guarantee an operating time of about 6 8 hour. To replace the batteries in the RM3000R bodypack receiver slide down the battery cover (20) and insert the batteries following always the polarity marked inside the battery inlet.
SETTING UP A SECOND RECEIVER After you have set the first receiver and transmitter, leaving ON the transmitter repeat the operation for the second receiver: SETTING UP A SECOND SYSTEM If you need to use a second SYSTEM (receiver and transmitter) in the same application, you have to set a transmission channel different from that used in the first system.
INDICE TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA........15 AVVERTENZE PER LA SICUREZZA ....................15 IN CASO DI GUASTO........................15 IMBALLAGGIO, TRASPORTO E RECLAMI ..................15 GARANZIE E RESI..........................15 MANUTENZIONE E LIMITAZIONI D’USO..................16 ALIMENTAZIONE..........................16 ATTENZIONE POSSIBILI DANNI ALL’UDITO! ..................16 AVVERTENZE PER L’UTILIZZO E CONFORMITÀ CE................17 INTRODUZIONE..........................18 DESCRIZIONE ..........................18 TRASMETTITORE RM3000 ......................18...
8 giorni dal ricevimento della merce. GARANZIE E RESI I Prodotti Proel sono provvisti della garanzia di funzionamento e di conformità alle proprie specifiche, come dichiarate dal costruttore. La garanzia di funzionamento è di 24 mesi dopo la data di acquisto. I difetti rilevati entro il periodo di...
Pulire il prodotto unicamente con un panno asciutto. I Prodotti Proel sono destinati esclusivamente ad un utilizzo specifico di tipo sonoro: segnali di ingresso di tipo audio (20Hz 20kHz). Proel declina ogni responsabilità per danni a terzi causati da mancata manutenzione, manomissioni, uso improprio o installazione non eseguita secondo le norme di sicurezza.
RM3000TR opera nella bande di frequenze: 863 – 865 MHz. RM3000TR è in grado di superare la potenza RF dei dispositivi a corto raggio in alcune nazioni: per tutti i paesi europei il selettore RF deve essere sempre sulla minima potenza.
CE per utilizzazione continua in impianti di diffusione sonora. DESCRIZIONE Il sistema Wireless In ear Monitor RM3000TR opera in banda UHF con frequenza controllata da PLL ed è caratterizzato da una trasmissione affidabile e di ottima qualità. Il sistema Wireless In ear Monitor RM3000TR si compone di 2 unità: il trasmettitore RM3000 e il ricevitore portatile bodypack RM3000R.
7. R OUTPUT (XLR uscita BILANCIATA) Come sopra per il canale destro. 8. POWER Interruttore acceso/spento: il LED mostra lo stato acceso/spento del trasmettitore. 9. PHONES Uscita per cuffie ausiliarie. 10. PHONES VOLUME Potenziometro di volume per le cuffie ausiliarie. 11.
Page 20
21. POWER INDICATOR Questo indicatore LED arancio si illumina quando il ricevitore è acceso. 22. BATTERY LOW Questo indicatore a LED rosso si illumina quando le batterie sono esaurite: sostituire le batterie il più presto possibile. 23. RF Questo indicatore a LED verde si illumina quando il è presente il segnale radio: Il LED RF è...
29. LINE OUT Se si necessita di collegare un’altro apparato audio si può usare questa uscita. Questa è un’uscita mini jack terminata come segue: Schermo – MASSA, Anello – canale DESTRO, Tip – canale SINISTRO. Non collegare una seconda cuffia a questa uscita. 30.
premere a lungo uno dei tasti CHANNEL SELECT (15), finché il display (16) lampeggia, quindi premere ancora uno dei tasti CHANNEL SELECT (15) per scegliere lo stesso canale impostato nel ricevitore al fine di farli corrispondere: x Se non si preme nessun tasto entro 5 secondi, il ricevitore o il trasmettitore tornano allo stato normale.
SPECIFICHE TECNICHE RM3000 – UHF PLL Trasmettitore 8 Canali Canali RF 8 frequenze preimpostate Gamma di frequenze RF UHF: 863 865 MHz Deviazione di picco RF ±68 KHz Tipo di trasmissione RF Sintonizzazione PLL Tipo di modulazione RF FM Stereo banda larga Potenza RF a 50 L (low) <...
Page 24
EB10 – Cuffie In Ear Stereo Sensibilità 112 dB @ 1KHz, 1mW Impedenza 16 ohm Risposta in Frequenza 10 Hz – 20 KHz (±3 dB) Connettore 3.5 mm Mini jack 3 poli placcato oro...
