RMW10

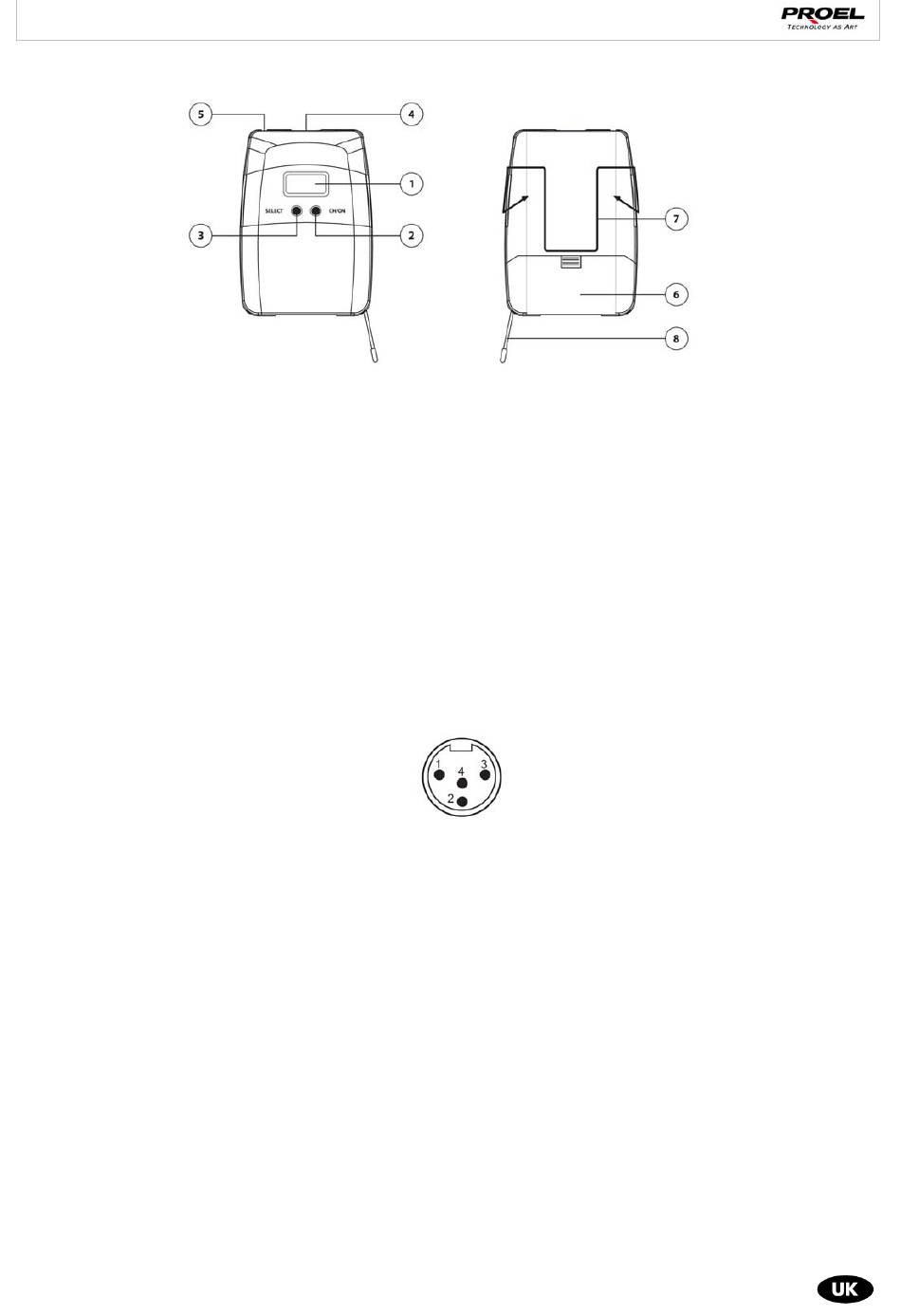

d) Body Pack Transmitter

1. Display
LCD displays: antenna symbol ( when TX and RX are couplet), operating frequency, charge battery level, CHANNEL, GROUP,
power transmission (PL), LOCK.
2. CH/ON
Press for one second to switch the Transmitter on. The transmitter displays the current frequency and the battery charge level.
Press this switch again to pass in a cyclic mode to the following functions: CHANNEL - GROUP - PL - LOCK / UNLOCK. To
disable the transmitter press and keep pressing for one second.
3. SELECT
Allows the selection of the settings in the Function mode.
4. Jack for battery recharge purposes
To charge rechargeable batteries, connect the battery charger (optional) to this jack input.
5. Mini 4P connector
Connect the clip microphone and headset to this connector: guitar, bass, keyboard (etc) .can be connected to this input.
6. Battery compartment
Open the battery housing and insert two AA 1,5V batteries or rechargeable batteries (optional) respecting the polarity.
7. Clip
8. Antenna
Ensure that the antenna is not covered (by hands for example), to avoid signal attenuation, loss or noise.
19
Pin 1: massa
Pin 2: + 5 V
Pin 3: Audio
Pin 4:
