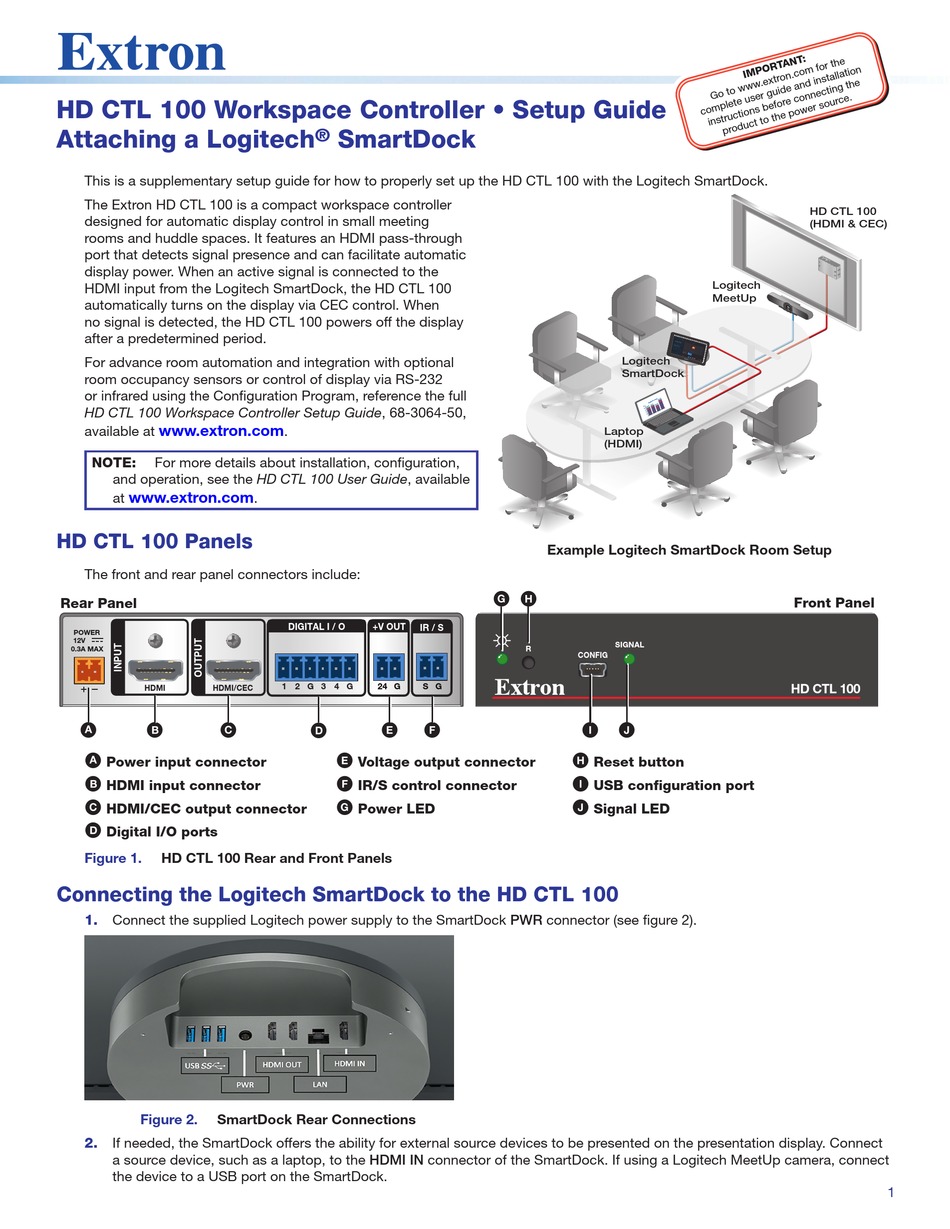

HD CTL 100 Workspace Controller • Setup Guide
Attaching a Logitech
This is a supplementary setup guide for how to properly set up the HD CTL 100 with the Logitech SmartDock.
The Extron HD CTL 100 is a compact workspace controller
designed for automatic display control in small meeting
rooms and huddle spaces. It features an HDMI pass-through
port that detects signal presence and can facilitate automatic
display power. When an active signal is connected to the
HDMI input from the Logitech SmartDock, the HD CTL 100
automatically turns on the display via CEC control. When
no signal is detected, the HD CTL 100 powers off the display
after a predetermined period.
For advance room automation and integration with optional
room occupancy sensors or control of display via RS-232
or infrared using the Configuration Program, reference the full
HD CTL 100 Workspace Controller Setup Guide, 68-3064-50,
www.extron.com
available at
NOTE:
For more details about installation, configuration,
and operation, see the HD CTL 100 User Guide, available
www.extron.com
at
HD CTL 100 Panels

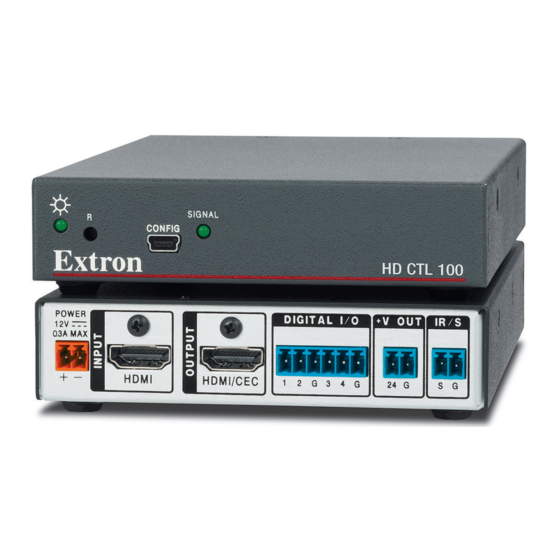

The front and rear panel connectors include:
Rear Panel
POWER
12V
0.3A MAX
HDMI
HDMI/CEC
A A
B B
C C
A
Power input connector
B
HDMI input connector
C
HDMI/CEC output connector
D
Digital I/O ports
Figure 1.
HD CTL 100 Rear and Front Panels
Connecting the Logitech SmartDock to the HD CTL 100
1.
Connect the supplied Logitech power supply to the SmartDock PWR connector (see figure 2).
Figure 2.
SmartDock Rear Connections
2.
If needed, the SmartDock offers the ability for external source devices to be presented on the presentation display. Connect
a source device, such as a laptop, to the HDMI IN connector of the SmartDock. If using a Logitech MeetUp camera, connect
the device to a USB port on the SmartDock.
®
SmartDock
.
.
DIGITAL I / O
+V OUT
IR / S
1
2
G
3
4
G
24
G
S G
D D
E E
F F
E
Voltage output connector
F
IR/S control connector
G
Power LED
Logitech
SmartDock
Laptop
(HDMI)
Example Logitech SmartDock Room Setup
G
H H
SIGNAL
R
CONFIG
I I J J
H
Reset button
I
USB configuration port
J
Signal LED
HD CTL 100
(HDMI & CEC)
Logitech
MeetUp
logi
tech
Front Panel
HD CTL 100
1
