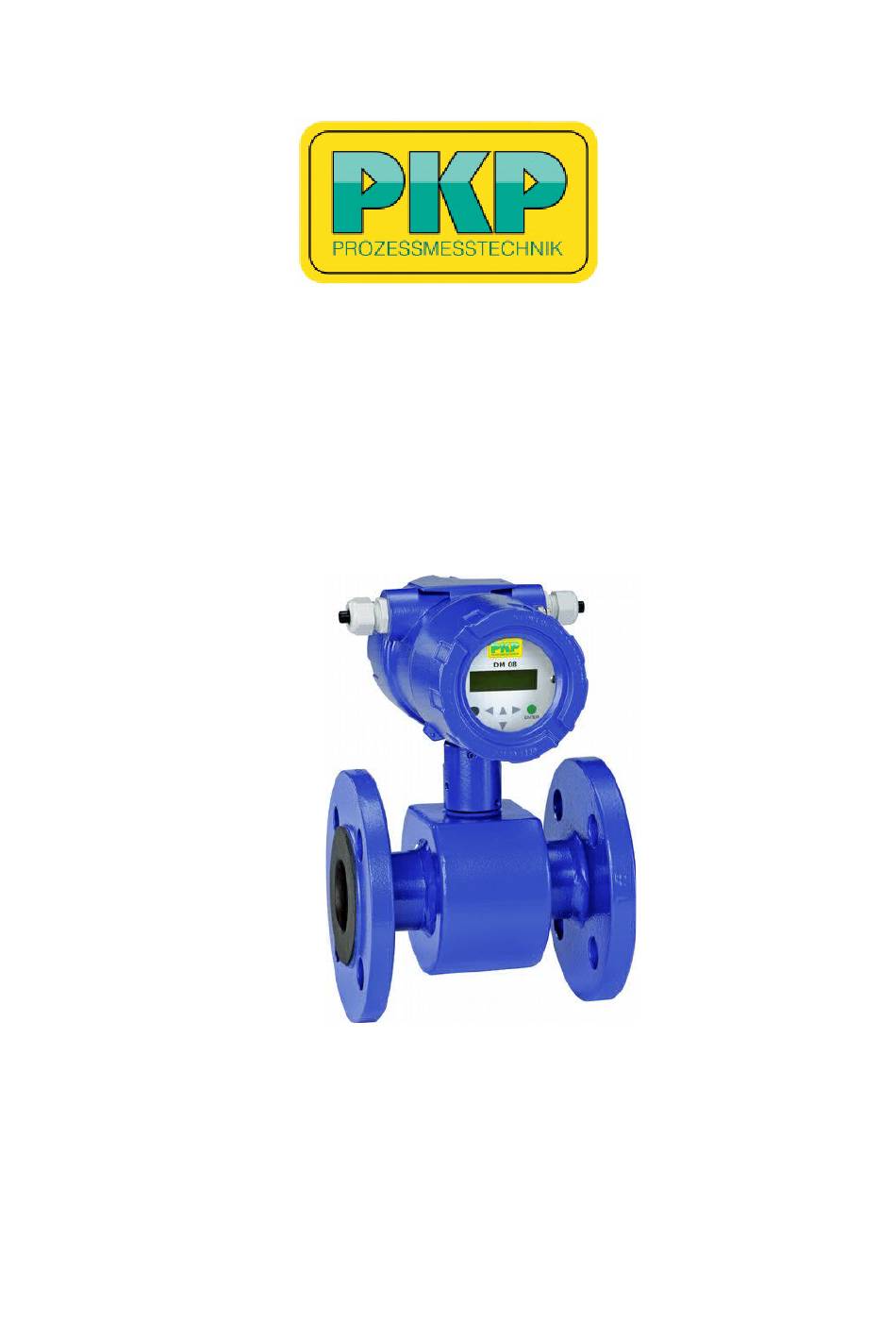

- Page 1 Instruction Manual DM08 Magnetic inductive flowmeter PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Table Of Contents
System errors........................44 Self-test errors.........................45 Return shipment to the manufacturer................46 Cleaning, maintenance, storage..................47 Cleaning...........................47 Maintenance........................47 Storage..........................47 Disassembly and disposal....................48 Technical Data........................49 Characteristics of the DM08....................49 Materials..........................51 Dimensions and weights....................52 Compact device........................52 Separate version (with wall bracket)..................53 DM08 Instruction manual 12/2018 page 2... -
Page 3: About This Operating Manual
Pay attention to and comply with infor- mation that is marked with this symbol. Reference to another section, document or source. > Follow the specified instructions and steps. • Item. Adhere to the given order. DM08 Instruction manual 12/2018 page 3... -
Page 4: Device Description
Junction box. Process connection. Versions: The DM08 is available as a compact device ( Fig. left) or in separate design ( Fig. right). Both designs are available in nominal widths from DN 15 to DN 200 with different features. Type plates: The type plates you can find at the backs of evaluation electronics and sensor. -
Page 5: Delivery, Unpacking And Accessories
Unpacking: > Carefully unpack the unit to prevent any damage. > Check the completeness of the delivery based on the delivery note. Scope of delivery: 1x DM08 according to the order data. • 1x operating manual. • certificates (optional) •... -
Page 6: Intended Use
Intended use Magnetic inductive flow sensor DM08 is only intended to be used for measuring and dos - ing / batching the flow of electric conductive, liquid media According to the Pressure Equipment Directive 2014/68/EU, only Group 2 fluids are per - mitted to be used. -
Page 7: Safety Instruction
( "Characteristics of the DM08"). Take appropriate measures to ensure that the medium does not freeze. Only use the DM08 if it is in perfect condition. Damaged or faulty devices must be checked without delay and, if necessary, replaced. -
Page 8: Construction And Function
Construction and function Construction The DM08 comprises a sensor and the display electronics. The sensor is used to measure fluid media. The display electrodes generate the coil current required for the magnetic field and prepares the induced voltage applied to the electrodes. -
Page 9: Functions
The display electronics needs to be mounted separately from the sensor if: the mounting area is difficult to access or there is a lack of space, • medium and ambient temperatures are extremely high, • there is strong vibration. • DM08 Instruction manual 12/2018 page 9... -
Page 10: Instructions On Potential Equalisation And Cathode Protection
Instructions on potential equalisation and cathode protection Potential equalisation The signal outputs (process outputs and the mains supply of the DM08 are galvanic iso - lated from each other. The housing and the interference filter of the mains supply are con- nected to PE. - Page 11 Create the potential equalisation in the separate design the same as described in the above sections. For the potential equalisation, the display electronics and the sensor are connected to each other through Pin 7 of the connecting cable. DM08 Instruction manual 12/2018 page 11...
- Page 12 Maximum AC voltage (V 33 V • Maximum DC voltage 60 V. • > Make sure that no higher potential is connected to FE. DM08 Instruction manual 12/2018 page 12...
-
Page 13: Sensor Installation Instructions
General: The DM08 can always be installed at any point on the pipeline in the horizontal as well as in vertical sections. Ideally, the sensor should be installed in a pipeline with a sufficient straight run, both before and after the measuring point. - Page 14 If several sensors are installed in series, the distance between each sensor must • be equal to the length of one sensor. If two or more sensors are to be installed in parallel, the distance between sensors must be at least 1 m. DM08 Instruction manual 12/2018 page 14...
-
Page 15: Mounting
• Mounting As a compact device, the DM08 is installed directly into the pipeline. With the separate design, the sensor is installed in the pipeline. The display electronics can be attached to the wall with the bracket. -
Page 16: Electrical Connection
> De-energize the electrical system before connecting the DM08. Make the electrical connection of the DM08 through the terminal strips in the interior of the display electronics. For the separate design, the sensor cable for the electrodes and the magnetic current are required in addition. - Page 17 24 V : 30 V : 60 mA : 1.8 W Recommendation Pull-Up / Pull-Down resistance ~5 kΩ. Wiring current output (passive): An external voltage supply is required when connecting the passive current output. DM08 Instruction manual 12/2018 page 17...
-
Page 18: Electrode And Magnetic Current Line
> The inner shields are connected to terminal 7 and 22 respectively. Commissioning Before switching on the DM08 for the first time, please observe the following instructions. Check that the DM08 has been installed correctly and that all screw connections are sealed. -
Page 19: Operation
The ESC key is used to cancel the current action and leads to the next higher level. This is used for rollback. Pressing ESC key twice moves you directly to the MEASURED VALUES func - tional class. DM08 Instruction manual 12/2018 page 19... - Page 20 Display mode is the standard (default) operating mode when the device is switched on. 2. Programming. The parameters of the DM08 can be changed in this operating mode. After entering the corresponding password, either only the customer-modifiable functions (customer pass- word) or all functions (service password) are released for modification.
- Page 21 This password can be changed when the device is first put into operation. Therefore changes should be kept in a safe place. The factory setting for the DM08 customer password is: "0002". The service password allows modification of all functions and parameters. This password is not given to customers.
-
Page 22: Functional Classes (Main Menu)
Functional classes (main menu) The software functions of the DM08 are divided into functional classes. They are arrayed in a circle and can be navigated by using the or cursor keys. To go back to your start- ing point (the MEASURED VALUES functional class) press Esc. -
Page 23: Measured Values
Measured values: Volume flow rate: The MEASURED VALUES functional class If you select the function volume flow includes all functions for displaying the mea- current value for the volume flow will be dis- sured values. played. Example: Volume flow. 100.0 m3/h The displayed unit is defined in the func- tional class FLOW using the function vol-... - Page 24 XXX.X m3 in the functional class SETTINGS diameter XXX.XX m3/h SENSOR + DM08“. Relative flow rate: The relative flow rate Q is the percentage ratio of the (current) volume flow Q the upper range value of the volume flow.
- Page 25 QV + flow velocity: Raw value display: If the function QV+ flow velocity is selected, The raw value display supports fault diag- in the first line current value of the volume nostics and trouble shooting. Please inform flow and in the second line the current flow our service department about the clear text velocity will be displayed.
- Page 26 After the operator switched off the device or vent changes for software parameters of the no keystroke occurs for about 15 minutes, DM08 by the control unit without permission. the authorization for changes are cancelled If the operator does not enter a valid pass- and the password must be entered again.
- Page 27 Service password: Totalizer unit: The service password is not required for For selecting the desired function please parameter settings which are relevant for use the key ▲ or ▼. operation. The service password is reserved for service After choosing the function Totalizer unit technicians and not provided to customers.
-
Page 28: Measurement Processing
21). measured value as the current output and By pressing Esc or toggling to [no] the cur- pulse output of the DM08. rent action will be aborted without changing For selecting the desired function within a the totalizer. - Page 29 Low flow cut off: Flow The low flow cut off is a threshold for flow The FLOW functional class includes func- rate (percentage the upper-range value). tions that affect lower- and upper-range val- ues and the processing of the measured If the volume drops below this value, the dis- flow rates.
- Page 30 Otherwise, the settings only can be watched The measuring variable volume flow rate is but not changed. shown by the DM08 as well as an analogue The ESC key is used for discarding current output as a pulse output. changes.
- Page 31 Limit value messages Volume flow limit MAX: Fig: Limit value message and hysteresis. The MAX limit value for volume flow can be shown by the status output. The value for volume flow limit MAX is a per- centage of the current upper-range value QV URV.
-
Page 32: Pulse Output
Density: Pulse output If a mass unit in kg or t is used as flow unit, The PULSE OUTPUT functional class the density of the medium must be entered includes the functions regarding the pulse in [g/l]. The mass flow will be calculated output. - Page 33 When choosing an improper combination of Pulse value: these parameters (e.g. the number of pulses per time unit cannot be generated due to the This function is used to define how many pulse width which is too large), one of the pulses will be output per accumulated unit.
-
Page 34: Status Output
As mentioned in "Selection window / make a Status output selection", one of the following settings can be chosen. The functional class STATUS OUTPUT includes the functions for setting the status Setting Function output. closed Status output operates like break contacts opened Status output... -
Page 35: Current Output
The range from 4 to 20,5 mA is according to Current output the NAMUR-recommendation and uses the measuring range up 104%. The CURRENT OUTPUT functional class includes the settings for the current outputs of the display electronics. For selecting the desired function within the class please use the keys ▲... - Page 36 One of the following settings can be chosen If simulation mode is activated, all output (→ "Selection window / make a selection", p. signals will be generated depending on the 21): selected items. This function enables testing of peripherals connected to the device with- out water flow.
- Page 37 One of the following settings can be chosen Direct simulation – status output *: (→ "Selection window / make a selection", p. 23): Using the function Simulation direct status output the status output can be affected directly. Setting Function direct Status-, pulse-, and current out- For selecting the desired function within the put* will be set directly...
- Page 38 Direct simulation – current output *: Self-test Using this function the requested value for the current output can be defined. The function class SELF-TEST includes all functions relating to the self-test of the sen- For selecting the desired function within the sor.
- Page 39 Example: Reference calibration on / off: The function Reference calibration on/off is used to enable or disable the periodical recalibration of the transmitter. This function The default setting for the monitoring func- is useful for periodical self-monitoring and tion for the field coil current is „on“. for maintaining the long-term stability of the display electronics.
-
Page 40: Setting Sensor
Example: Setting Sensor This functional class SETTINGS SENSOR + DM08 includes the general settings for the For changing the parameter please refer to device. the description in section "Input window / modify a value". Empty pipe detection on / off:... - Page 41 Language: during installation (the flow of direction is marked on the sen- English and German are available for the sor with an arrow), the display user guidance of the DM08. electronics displays negative The function Language is intended for set-...
- Page 42 Example: Excitation frequency: The function Excitation frequency is in- tended for setting the excitation frequency of the field coil current. Because of the induc- For changing the parameter please refer to tance of the field coils the maximum fre- the description in Section "Selection window quency is limited and that’s why it can’t be / make a selection".
- Page 43 Example: Software version (information field): After selecting the function Software version Reset system error: the version of the DM08 software will be dis- played: This function is intended to reset the system error list. After choosing the desired function using the key ▲...
-
Page 44: Errors And Returns
> Comply with § 8.3 "Return shipment to the manufacturer"! CAUTION! Material damage! The DM08 cannot be repaired by the user. In case of a defect, the device must be returned to the manufacturer for repair. > Never perform any repair on the DM08 yourself. -
Page 45: Self-Test Errors
The following table details what problems you can solve yourself and how to solve them. If it is not possible to rectify a problem, please return the unit for repair together with a short error description, the ambient conditions and the period of use until the problem appeared. DM08 Instruction manual 12/2018 page 45... -
Page 46: Return Shipment To The Manufacturer
PKP for repair must be free of toxins and hazardous substances. That also applies to cavi- ties in the devices. If necessary, the customer must neutralise or purge the unit before return to PKP. -
Page 47: Cleaning, Maintenance, Storage
Cleaning, maintenance, storage Cleaning Clean the DM08 with a dry or slightly damp lint-free cloth. Do not use sharp objects or aggressive agents for cleaning. Maintenance The DM08 is maintenance-free cannot be repaired by the user. In case of a defect, the device must be replaced or returned to the manufacturer for repair. -
Page 48: Disassembly And Disposal
> Remove the DM08 using suitable tools. Disposal: No household waste! The DM08 consists of various different materials. It should not be disposed of with house-hold waste. Comply with the relevant regulations of your country when disposing the units. > Take the DM08 to your local recycling plant >send the DM08 back to PKP. -
Page 49: Technical Data
The technical data of customised versions may differ from the data in these instructions. Please observe the information specified on the type plate. Characteristics of the DM08 *1) Reference conditions: Media temperature 10...30 °C; Ambient temperature 20...30 °F; warm-up period 30 min.;... - Page 50 DM08 DN 15...DN 200 factory scaled measuring range for … corresponds to: DM08 Instruction manual 12/2018 page 50...
-
Page 51: Materials
Materials DM08 Instruction manual 12/2018 page 51... -
Page 52: Dimensions And Weights
Dimensions [mm] 1) Weight: Sensor ○ Compact device. valid for DN 15...DN 50 (PN 40), DN 65…DN 150 (PN 16), DN 200 (PN 10). 2) installation length: without protecting ring ○ with protection ring. DM08 Instruction manual 12/2018 page 52... -
Page 53: Separate Version (With Wall Bracket)
Separate version (with wall bracket) Display electronics Sensor: The dimensions L, W, D and H corresponds to the values of the table on the compact device (→ p. 52). DM08 Instruction manual 12/2018 page 53... - Page 54 • • • • • • • • • • • • • • • •...
