    Proper Usage The variable area flowmeters of the DS08 series are used exclusively for monitoring and indicating continuous flows of liquid media that do not attack the materials used. All other usage is regarded as being improper and outside the scope of the device.
  • Page 3 Do not use flow monitors with fast-switching valves. The series DS08 flow meter devices should not be deployed as the sole agents to prevent dangerous conditions occurring in plant or machinery. Machinery and plant need to be designed in such a manner that faulty conditions and malfunctions do not arise that could pose a safety risk for operators.
  • Page 4: Overview

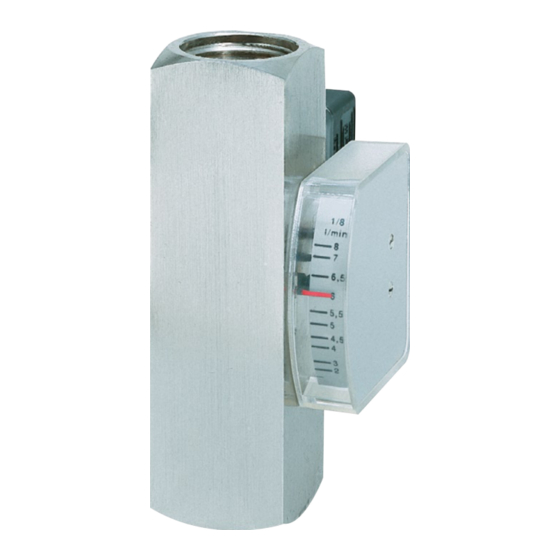

    A scale is applied to the device body, to which the desired switch point can be adjusted. Display scale: On the device, a display housing is mounted with integrated indicator scale and pointer movement. The pointer on the scale indicates the current flow value. DS08 Instruction manual 03/2020 page 4...
  • Page 5: Installation

    This may result in serious injury to the user.  if the mediums is contaminated by solids, a strainer must be installed before the device (e.g. SF00 or SF01 from PKP) DS08 Instruction manual 03/2020 page 5...
  • Page 6 Direction of flow: Only install the flow monitor in one of the positions displayed in the drawing. The medium must flow in the direction of the arrow (from a low to a high scale value). DS08 Instruction manual 03/2020 page 6...
  • Page 7: Connecting Devices Equipped With Reed Switches

    Capacitive Load Capacitive loads consist e.g. of long connection cables or capacitive consumers. WARNING: High current spikes at switching on (this will exceed the nominal current) Protective measures: (examples) Limitation of current by a resistor DS08 Instruction manual 03/2020 page 7...
  • Page 8 But it cannot be guaranteed that for specific applications more adequate Boucherot cells may exist. For Reed switches of 10 – 40 VA Voltage [V] Resistance [Ohm] Capacitance [nF] 1500 For Reed switches of 40 – 100 VA Voltage [V] Resistance [Ohm] Capacitance [nF] 1000 DS08 Instruction manual 03/2020 page 8...
  • Page 9: Electrical Connection

    250 V / 1 A / 30 VA, 3UT6 = Ex-SPDT, T6* min load: 3 VA (2 m cable) * Exact max. switching capacity: see ATEX documents ** Safety class M12x1 plug for DS08.M: IP65 DS08 Instruction manual 03/2020 page 9...
  • Page 10: Contacts For Ds08.M

    Switching contact with connector acc. to EN 175301-803: Normally Open (NOC) Change Over (COC) Switch position under no-flow condition Switch position under no-flow condition The ground-pin is not used The ground-pin is not used DS08 Instruction manual 03/2020 page 10...
  • Page 11 Switch position under no-flow condition Switch position under no-flow condition Switching contact with cable: The individual cores of the cable are numbered according to the following connection dia - gram: Normally Open (NOC) Switch position under no-flow condition DS08 Instruction manual 03/2020 page 11...
  • Page 12: Contacts For Ds08.S

    Switching contact with connector acc. to EN 175301-803: Normally Open (NOC) Change Over (COC) Switch position under no-flow condition Switch position under no-flow condition The ground-pin is not used The ground-pin is not used DS08 Instruction manual 03/2020 page 12...
  • Page 13 Switching contact with cable: The individual cores of the cable are numbered according to the following connection dia - gram: Normally Open (NOC) Change Over (COC) Switch position under no-flow condition Switch position under no-flow condition DS08 Instruction manual 03/2020 page 13...
  • Page 14: Setting The Switch Point

    3. Re-tighten the switch contact housing set screws (1) using a screwdriver. Observe the correct tightening torque of 0,4 Nm. The set switch point corresponds to the switch-off point of the switch contact by decreas- ing flow. DS08 Instruction manual 03/2020 page 14...
  • Page 15: Troubleshooting Guide

    Incorrect reduction fitting or Correct pipe diameter pipe diameter is too small Device is dirty Disassemble and clean the device Device is defective Remove device from system and contact PKP DS08 Instruction manual 03/2020 page 15...
  • Page 16: Maintenance / Maintenance Plan

    Maintenance / Maintenance plan Intervals for replacing wear parts DS08 type flow monitors require very little maintenance due to the small number of mov- ing parts. The intervals for the replacement of wear parts depend significantly on the oper - ating conditions as well as on the composition of the medium flowing through the device.
  • Page 17 Description: Viscosity compensation, mounting position and reliability: The flow meter and switch model DS08 works according to a The built-in spring and the magnetic float guarantee an abso- modified variable area principle. The float is guided in a cylin- lute reliability of the meter. This spring, which pushes the float drical measuring tube by means of a spring.
  • Page 18 2X = SPDT for SPS application all other wetted parts: stainless steel 1.4571 3ST5 = Ex-N/O, T5 (100 °C), with 2 m cable, for DS08.S 3ST6 = Ex-N/O, T6 (80 °C), with 2 m cable, for DS08.S *only with reduced connection 3UT5 = Ex-SPDT, T5 (100 °C), with 2 m cable, for DS08.S...
  • Page 19 3 VA (2 m cable) *Exact max. switching capacity: see ATEX documents ATEX-designations: ** Safety class M12x1 plug for DS08.M: IP65 Contacts 3SM and 3UM for DS08.M: ATEX II 2 G Ex ib IIC and ATEX II 2 D Ex ib IIIC for connection to certified intrinsically safe circuit, temperature range -5 °C <...
  • Page 20 Please note that the switch-on points are higher due to the hysteresis. For applications where pressure surges are to be expected, please contact PKP! • Dirt traps SF00, SF01 • Protection relay MSR01 • M12 Plug connector PVC-cable SM12 PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 •...
