TE Connectivity 90084 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Anvil
Jaws
Ratchet

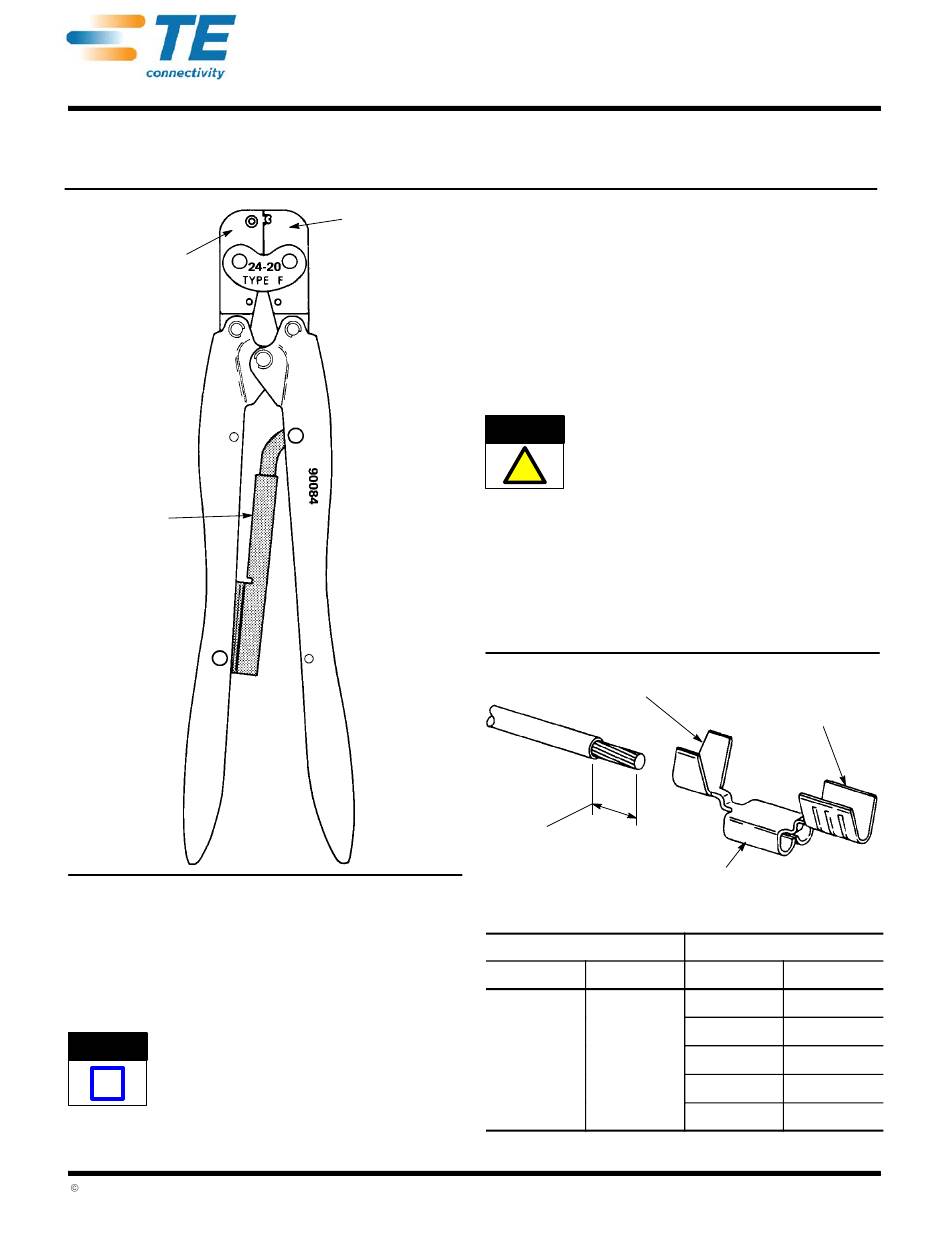

Figure 1
1. INTRODUCTION
Hand Crimping Tool 90084 is designed to crimp the
loose piece (LP) Tab Receptacle terminals listed in
Figure 2. Read these instructions thoroughly before
crimping any terminals.
All dimensions in this document are in metric
NOTE
units [with U.S. customary units in brackets].
i
Figures and illustrations are for identification only
and are not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 6, REVISION SUMMARY.
2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
Hand Crimping Tool 90084
2. DESCRIPTION
Crimper
Jaws
This tool features two crimper jaws, two anvil jaws, a
terminal locator, and a ratchet.
The terminal locator positions the terminal between
the crimping jaws.
The ratchet ensures full crimping of the terminal.
Once engaged, the ratchet will not release until the
tool handles have been fully closed.
3. CRIMPING PROCEDURE
Refer to the chart in Figure 2 and select wire within
the specified wire size and insulation diameter. Strip
the wire to the length indicated --do NOT cut or nick
the wire strands.
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
The crimping jaws bottom before the ratchet
CAUTION
releases. This is a design feature that ensures
!
maximum electrical and tensile performance of
the crimp. Do NOT re- - adjust the ratchet.
Insulation
Barrel
Wire Strip Length
3.57 [.141]
Tab Receptacle
WIRE
SIZE (AWG) INSUL DIA
1.02 to 2.03
24 to 20
[ 040 to 080] [.040 to .080]
Figure 2
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408- - 7114
21 MAR 12 Rev B
Wire
Barrel
TERMINAL NO.
LP STRIP
60560 60477
60561 60436
60578 60524
61403 60524
60751 60530
1 of 4
