Jøtul C 620 has a fan solution that increases air
circulation in the convection chamber, thereby
effectively warming the room and providing
enhanced comfort.
Installation
Check that all the parts are included in the package:
Fan
Installation manual
Bag of screws and cable ties
Control box
Cable and plug

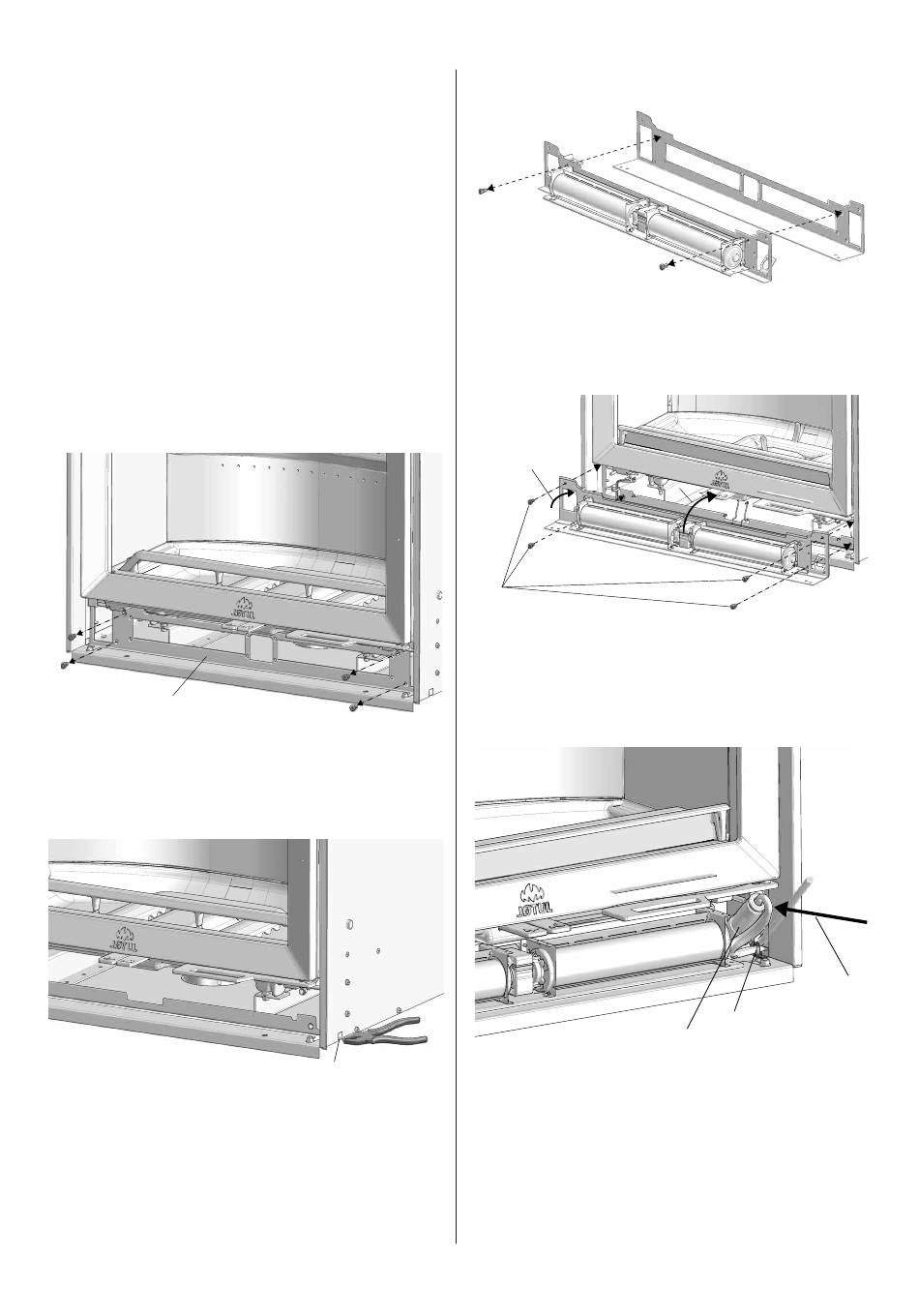

Fig 1
A
1. Unscrew the 4 screws securing the front bracket (A) with
a 5 mm Allen key.
2. Tilt out the front bracket (A).
Fig 2
1. Use pliers to remove the cable lid.
Fig 3
1. Unscrew the screws from the front bracket, and use them
to secure the fan to the front bracket.
Fig 4
2
1. Tilt in the front bracket and fan.
2. Reattach the 4 screws (see fi g.1) securing the front bracket
with a 5 mm Allen key.
3. Flip the thermostat inwards.
Fig 5
1. Thread the cable with the female connector through the
1
slot made in fi g.2, and connect it to the fan.
2. Bend the connection inwards, so that the connector will fi t
inside the frame (see the installation manual that comes
with the cassette).
3. Use a cable tie to secure the cable to the bracket on the
bottom of the fan cover (make sure there is enough cable
for the connector to fi t).
3
1
1
ENGLISH
2
3
3
