ENGLISH

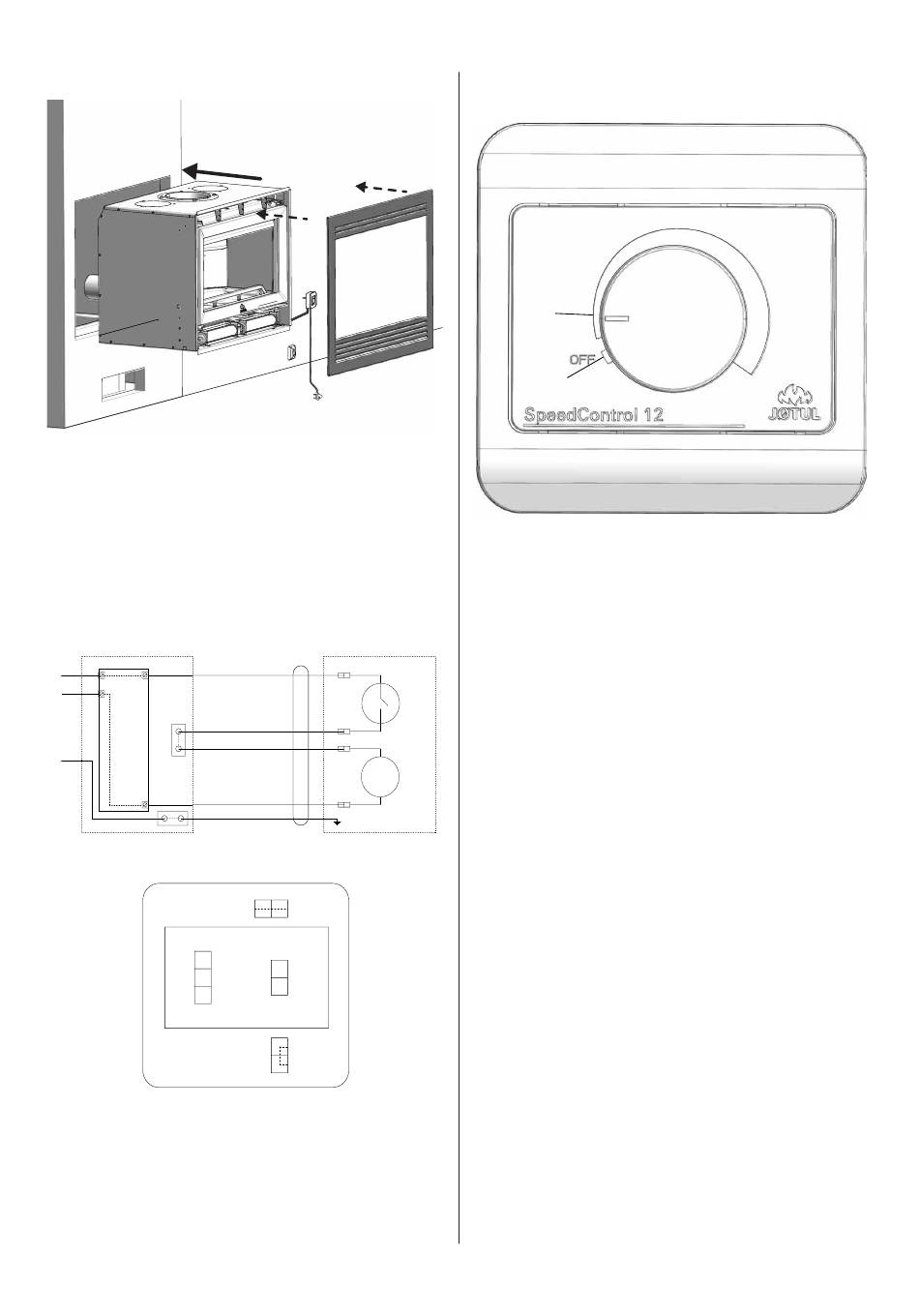

Fig 6
1. Install the cassette into the surround and mount the frame,
as shown in in the installation manual that comes with the
cassette. There must be room for the cable to fi t without
being damaged on the outside of the cassette. NB: The
frame must be installed, as it protects the electrical
parts of the fan.
2. Install the control box (Fig. 8) in a suitable location,
following the wiring diagram in fi g. 7.
Fig 7a
Control box
(180 - 230VAC)
L out
L
N
PE
Reg N.
Fig 7b
L
N
1. Connect the wires in the control box according to fi g.7a+b.
NB: Installation must be carried out by a qualifi ed
electrician in conformance with local regulations.
The control box can now be connected to an electrical source.
4
Fan
Connector
Brown
Thermostat
1
White
2
Black
4
Motor
Blue
3
Yellow/green
PE
Yellow/Green
L
Brown
OUT
REG
Blue
N
White
Black
Fig 8
B
A
A:
The fan is off
B:
The fan starts at the selected speed when the burn
chamber starts to generate heat. When the burn
chamber has cooled down again, the fan stops
automatically.
Lowest speed approx. 140 m
Highest speed approx. 180 m
Setpoint
Start:
50
o
C
Stop:
35
C
o
The fan will start once the burn chamber reaches 50
prox. 45 minutes after lighting the fi re), and stop automatically
when the temperature drops below 35
Fuse:
500 mA (not replaceable)
250 V
Power consumption: 16 W
3
/h
3
/h
C (ap-
o
C.
o
