TRANSMITTER OPERATING LOGIC
The wireless controls via transmitter operate with step by step
logic.
PHOX

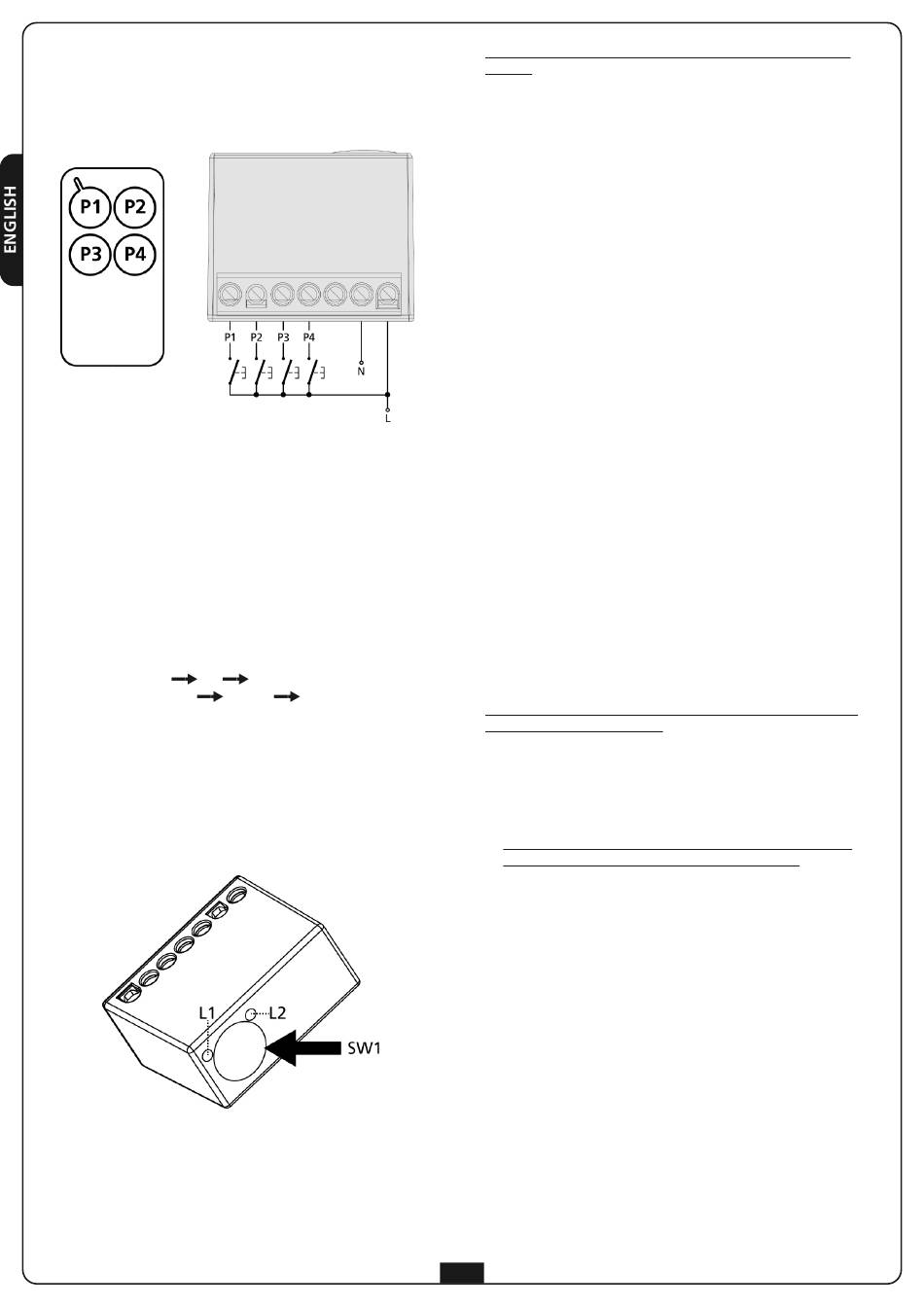

The transmitter buttons function in pairs, by storing button
P1(UP), the P3 button (DOWN) is also automatically learnt. The
same for the pair P2 and P4.
To use STOP you must press the button that controls the
opposite movement to the one in course:
• roller shutter moving UP: press button P3 or P4
• roller shutter moving DOWN: press button B1 or P2
Each time the buttons are pressed, the operating logic will be as
follows:
Button P1 / P2 : UP UP
Button P3 / P4 : DOWN
TRANSMITTER STORAGE
Up to 30 pairs of buttons can be stored in each module.
The button SW1 is used to start the data saving procedure in the
desired DEV-R1 module
L1 - the led lights up when you press the SW1 button to store
or clear transmitters
L2 - the led lights up when the DEV-R1 module receives a code
which is stored in the memory
DEV-T1
UP
DOWN DOWN
To store a transmitter TX1 on a blank control unit proceed as
follows:
WARNING: the first transmitter stored fixes the direction of
motion of the motor.
1. Press the button SW1 of the module DEV-R1 to be
programmed: the led L1 lights up
2. Press and hold (for around 5 seconds) buttons P1+P2 of the
TX1 transmitter until the motor begins to move in a direction:
the L1 LED will turn off
3. Release the buttons: the motor will stop
4. To store the button pair P1-P3 proceed as follows:
- if the roller shutter was rising before it stopped, press the
P1 button (P1 button = up, P3 button = down)
- if the roller shutter was descending before it stopped, press
the P3 button (P1 button = up, P3 button = down)
5. To store the button pair P2-P4 proceed as follows:
- if the roller shutter was rising before it stopped, press the
P2 button (P2 button = up, P4 button = down)
- if the roller shutter was descending before it stopped, press
the P4 button (P4 button = up, P2 button = down)
6. The receiver waits for a new code to be stored for 8 seconds
7. Memorise all the transmitters necessary
8. After 8 seconds without a valid transmission, the led is
turned off and the receiver returns to normal operating mode
Try to operate the roll-up shutter and check that it works
with the logic above described. If the logic is reversed, it is
necessary to delete all the codes stored and start again the
above procedure.
TRANSMITTER STORAGE VIA RADIO
This procedure allows for storage of transmitters without directly
accessing the module.
NOTE: it is necessary to use a remote control previously stored
(TX1) and proceed as follows:
1. Take the roll-up shutter to half its way with TX1
2. Press and hold (for around 5 seconds) buttons P1+P2 of the
TX1 transmitter until the motor begins to move in a direction
3. Release the buttons: the motor will stop
4. Press the P1 or P2 button of the TX2 transmitter to be stored:
the button pair (P1-P3 or P2-P4) of the new transmitter is
stored with the same logic as the TX1 transmitter
5. The receiver waits for a new code to be stored for 8 seconds
6. Memorise all the transmitters necessary
7. After 8 seconds without a valid transmission, the led is
turned off and the receiver returns to normal operating mode

MEMORY CLEARING

This procedure enables to clear all the transmitters stored in the
DEV-R1 module.
1. Switch off the DEV-R1 module
2. Hold the button SW1 and at the same time switch on the
DEV-R1 module
3. After 2 seconds, release the button SW1: the motor confirms
successful clearing by moving in both directions for half a
second
