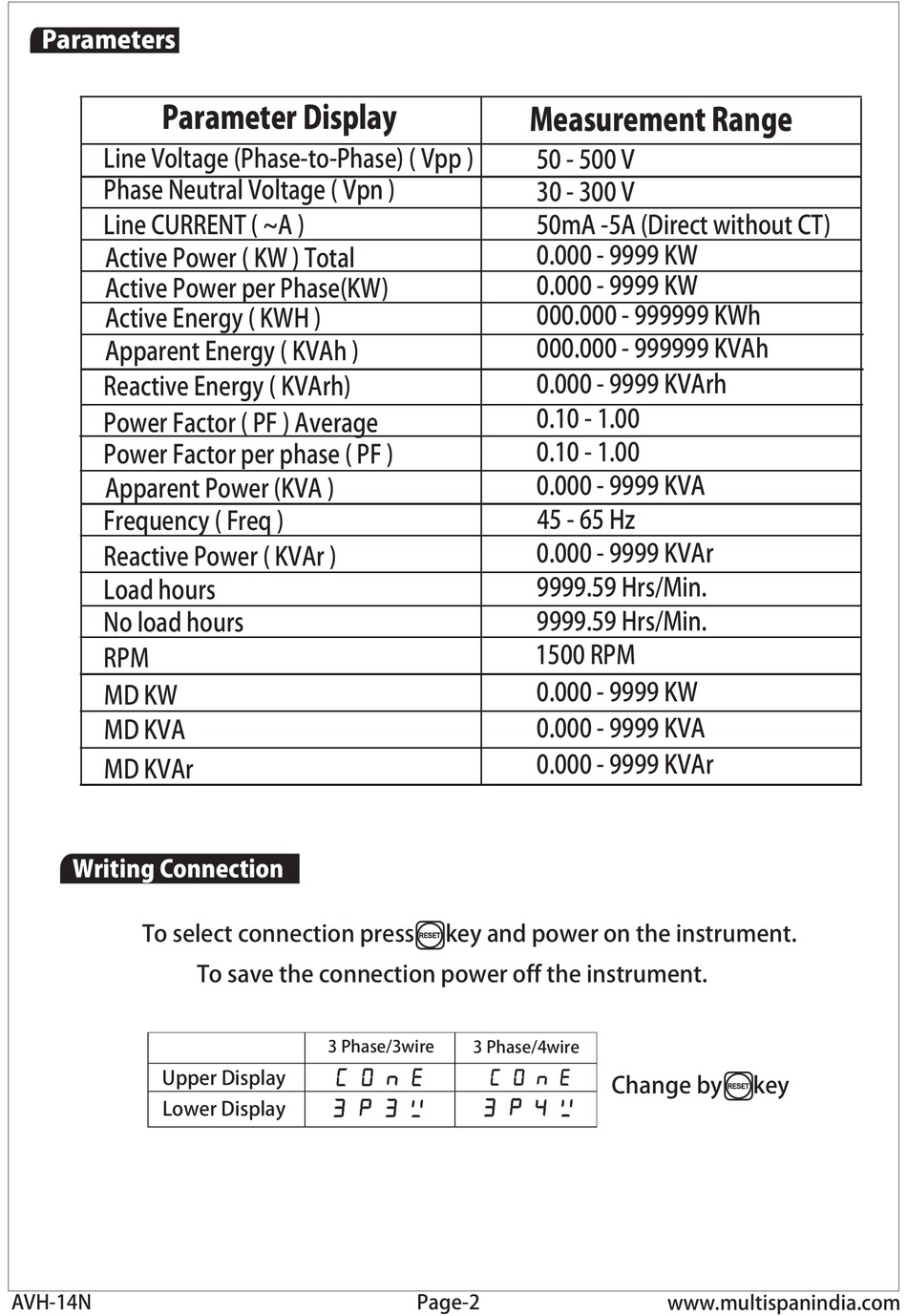

Parameters
Parameter Display
Line Voltage (Phase-to-Phase) ( Vpp )
Phase Neutral Voltage ( Vpn )
Line CURRENT ( ~A )
Active Power ( KW ) Total
Active Power per Phase(KW)
Active Energy ( KWH )
Apparent Energy ( KVAh )
Reactive Energy ( KVArh)
Power Factor ( PF ) Average
Power Factor per phase ( PF )
Apparent Power (KVA )
Frequency ( Freq )
Reactive Power ( KVAr )
Load hours
No load hours
RPM
MD KW
MD KVA
MD KVAr
Writing Connection
To select connection press
Upper Display
Lower Display
AVH-14N
To save the connection power off the instrument.
3 Phase/3wire
Measurement Range
50 - 500 V
30 - 300 V
50mA -5A (Direct without CT)
0.000 - 9999 KW
0.000 - 9999 KW
000.000 - 999999 KWh
000.000 - 999999 KVAh
0.000 - 9999 KVArh
0.10 - 1.00
0.10 - 1.00
0.000 - 9999 KVA
45 - 65 Hz
0.000 - 9999 KVAr
9999.59 Hrs/Min.
9999.59 Hrs/Min.
1500 RPM
0.000 - 9999 KW
0.000 - 9999 KVA
0.000 - 9999 KVAr
key and power on the instrument.
3 Phase/4wire
Page-2
Change by
key
