Kentec Electronics Taktis Quick Start Manual
Fire alarm control panel
Hide thumbs
Also See for Taktis:
- Operating instructions manual (17 pages) ,
- Operation manual (15 pages) ,
- Installation manual (202 pages)
Related Manuals for Kentec Electronics Taktis
Summary of Contents for Kentec Electronics Taktis
- Page 1 Fire Alarm Control Panel Taktis Quick Start Guide Man-1172EN Rev. 01 *Man-1172EN* Taktis Quick Start Guide For Internal Use Only...
-
Page 2: What's In The Box

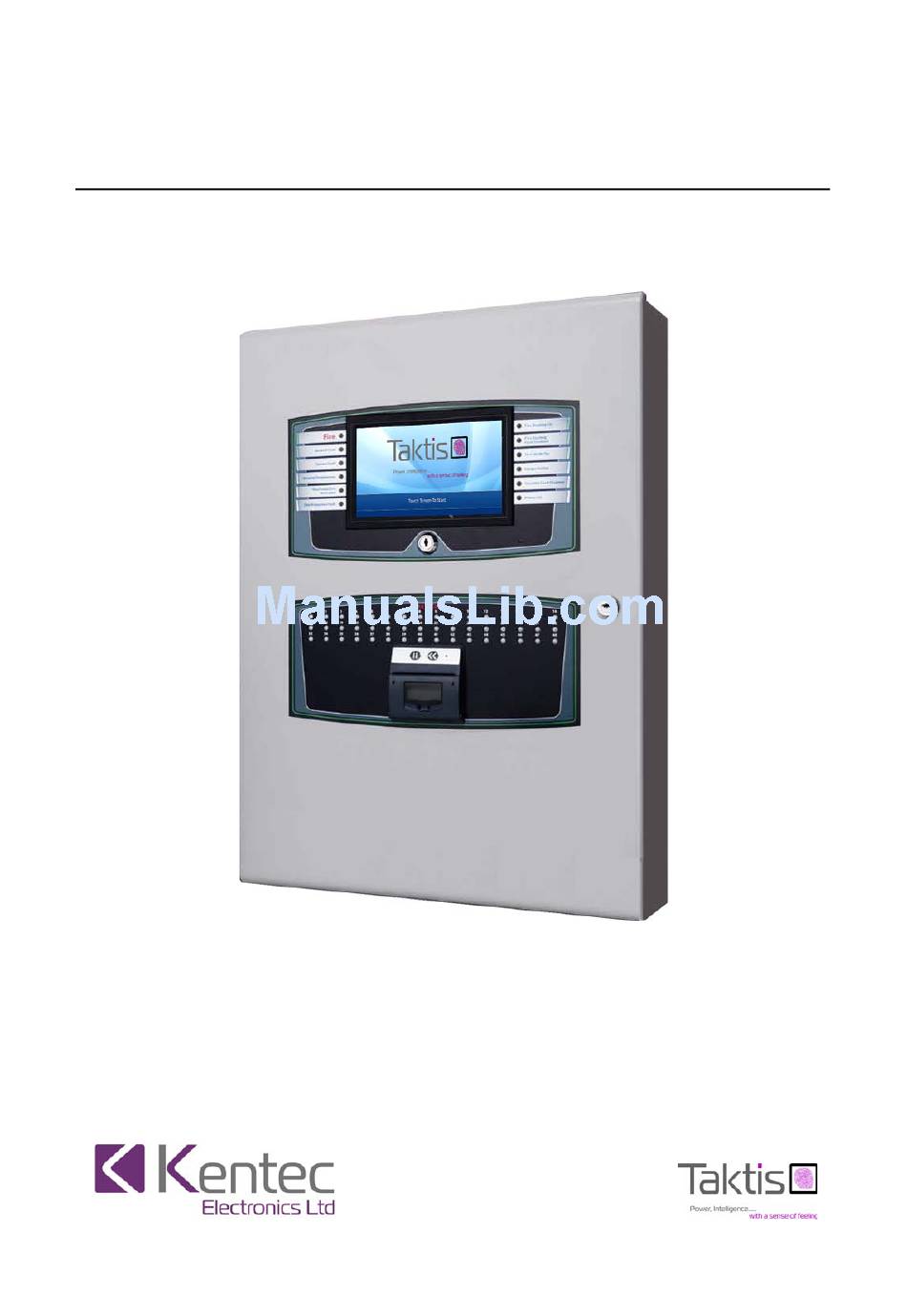

Taktis Quick Start Guide Taktis Quick Start Guide This Start Guide describes 2 to 8 loop and 2 to 16 loop models of the Kentec Taktis FACP (Fire Alarm Control Panel). Models of this FACP support Hochiki and Apollo loop protocols. - Page 3 Taktis Quick Start Guide QR Codes The QR codes below provide links to the Taktis FACP Installation and Operation Manuals. Using your Smartphone, tablet or device install a third party QR Code Reader and scan the code to open the documents.
-
Page 4: Panel At A Glance
Taktis Quick Start Guide Panel at a Glance The diagrams below provide an overview of the panel main components and features: Figure A-3 2 to 8 Loop Panel Internal Layout Description Comment Description Comment Panel Indicators Enable Keyswitch Refer to Installation Manual for Refer to Installation &... - Page 5 Taktis Quick Start Guide Figure A-4 2 to 8 Loop Panel Chassis Layout Description Comment Description Comment Enclosure Fixing Main Board Use 5mm bolts/screw fixings. Refer to Refer to Installation Manual for details. fixing the cabinet in installation section Hole for details.
- Page 6 Taktis Quick Start Guide Figure A-5 2 to 8 Loop Panel Rear of Door Description Comment Description Comment Hinge Loops Lower Opening Refer to Installation Manual for details. Earth Link Product Label/Logo For continuity only. Refer to Installation Manual for details.
- Page 7 Taktis Quick Start Guide Figure A-6 2 to 16 Loop Front Panel Layout Description Comment Description Comment Panel Indicators Zone Indications Refer to Installation Manual for Up to 144 Zone Indications. Refer details. to Installation Manual for details. Touch Panel Display...
- Page 8 Taktis Quick Start Guide Figure A-7 2 to 16 Loop Panel Internal Layout Description Comment Description Comment Enclosure fixing hole Battery Use 5mm bolts/screws fixings. Refer to Installation manual for Refer to fixing the cabinet in details. installation section for details.
- Page 9 Taktis Quick Start Guide Figure A-8 2 to 16 Loop Panel Rear of Door Description Comment Description Comment Earth Link Printer (Optional) For continuity only. Refer to Refer to Installation Manual for Installation Manual for details. details. Hinge Loop Refer to Installation Manual for...
-
Page 10: Hanging The Enclosure
Taktis Quick Start Guide Hanging the Enclosure To hang the enclosure proceed with the following steps. For details on how to remove the enclose components please refer to the Installation Section of the FACP Installa- tion Manual. 1. Start by marking the fixing centres for the upper two enclosure fixing points. Ensure your fixing centres are level. - Page 11 Taktis Quick Start Guide 2. Attach the two fixings to the wall using appropriate wall plugs. Screw fixings half-way home 3. Hang the enclosure on the two fixings, through the enclosure key-way fixing points. Figure A-10 Hanging the enclosure on the key-way fixing points 4.
-
Page 12: Environmental Considerations
Taktis Quick Start Guide Compliance Taktis FACP’s are compliant with EN54-2, EN54-4 and EN54-13 are available with 2 to 8 loop or 2 to 16 loop in four standard enclosure sizes. The modular construction allows control panels to be configured with a range of options including, zonal fire indicators, a printer, additional supervised ancillary inputs and outputs, networking Taktis FACP’s together for... -
Page 13: Rating Label
Taktis Quick Start Guide N54-4: 1997 +A1:2002 +A2:2006 (Power supply equipment for fire detection and fire alarm systems for buildings.) Table 3: EN54-4: 1997 +A1:2002 +A2:2006 (Functions Provided) Operation from a main power supply- EN54-4 clause Operation from a standby battery - EN54-4 clause 5.2 Monitor and charge the standby battery - EN54-4 Recognise and notify supply faults - EN54-4 clause 5.4... -
Page 14: Terms And Conditions
Terms and Conditions Details of Kentec Electronics Ltd. Terms and Conditions including Warranties and Returns & Repair Policies can be found on our website at the following locations: Terms, Conditions &... - Page 15 Taktis Quick Start Guide This page is intentionally left blank. Man-1172EN Rev. 01 Taktis Quick Start Guide...
