WIRING

IV.
Any unused zones must have the EOL resistor across it (unless all eight are
disabled by dip switch 6).

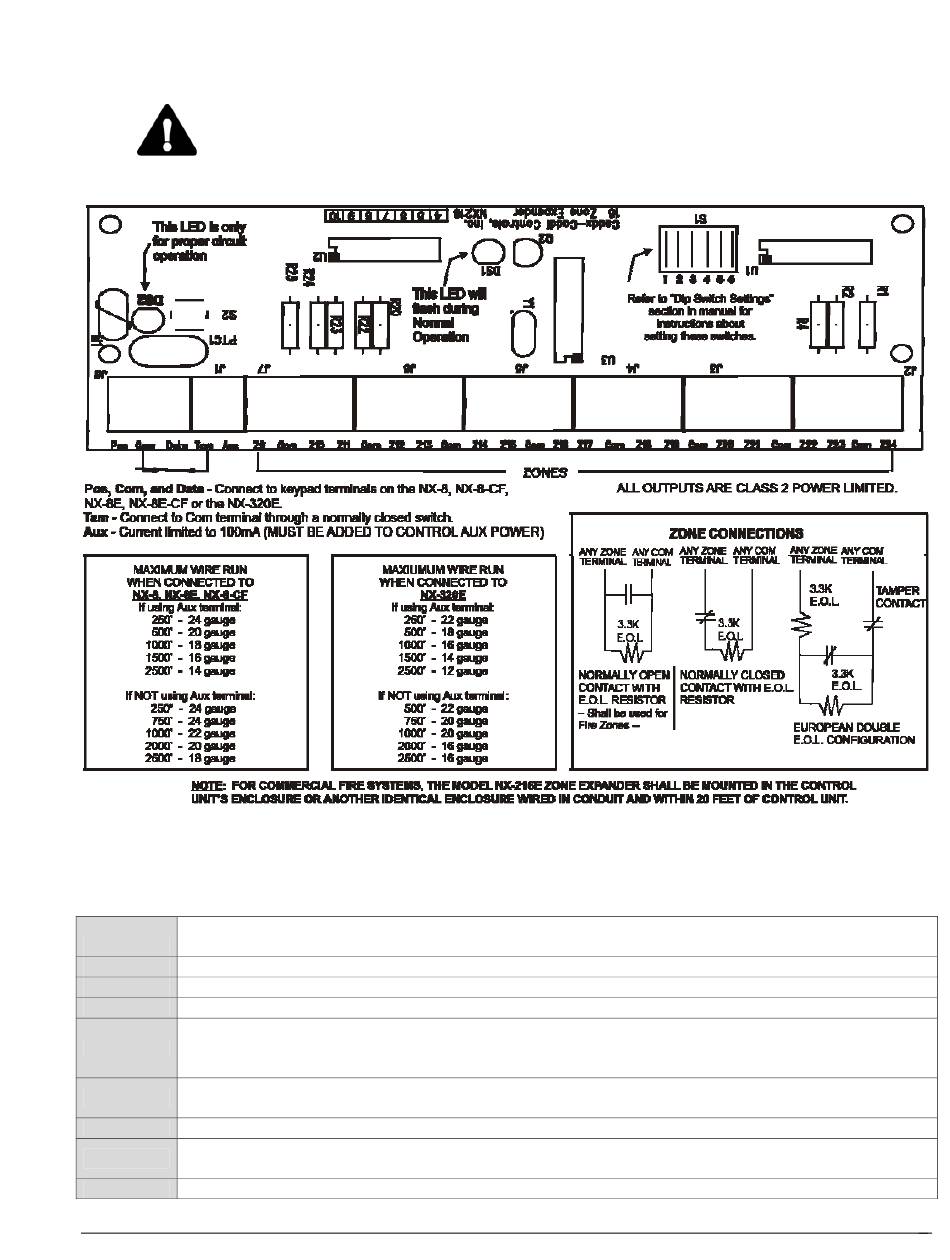

Figure IV—1

TERMINAL DESCRIPTION

V.
Connect to the KP POS terminal of the NetworX control panel (refer to Compatibility chart on the back
POS of this manual). Current draw is 30 mA.
COM Connect to the KP COM terminal of the control panel.
Connect to the KP DATA terminal of the control panel. (See the wiring diagram for wire specifications)
DATA
Connect as shown on diagram. IF NOT USED, CONNECT TO A COM TERMINAL.
TAM
Can be used to power devices directly from the NX-216E. Power is coming from the control panel
therefore the current draw of these devices must be added to the total current draw of the NX-216E.
AUX
This output is current limited to 100 mA.
Connect to one side of zone 9 loop. Connect the other side to COM terminal. Open or short causes
Z9
alarm. (See wiring diagram for examples)
Common (-) terminal for zones 9 & 10.
COM
Connect to one side of zone 10 loop. Connect the other side to COM terminal. Open or short causes
Z10
alarm. (See wiring diagram for examples).
Z11—Z24 Connect as described for Z9 & Z10.
NX-216E Zone Expander
