TCL Alcatel POP4-10 4G&VF Repair Document

Hide thumbs Also See for Alcatel POP4-10 4G&VF:
Table of Contents

Advertisement

Quick Links

TCL

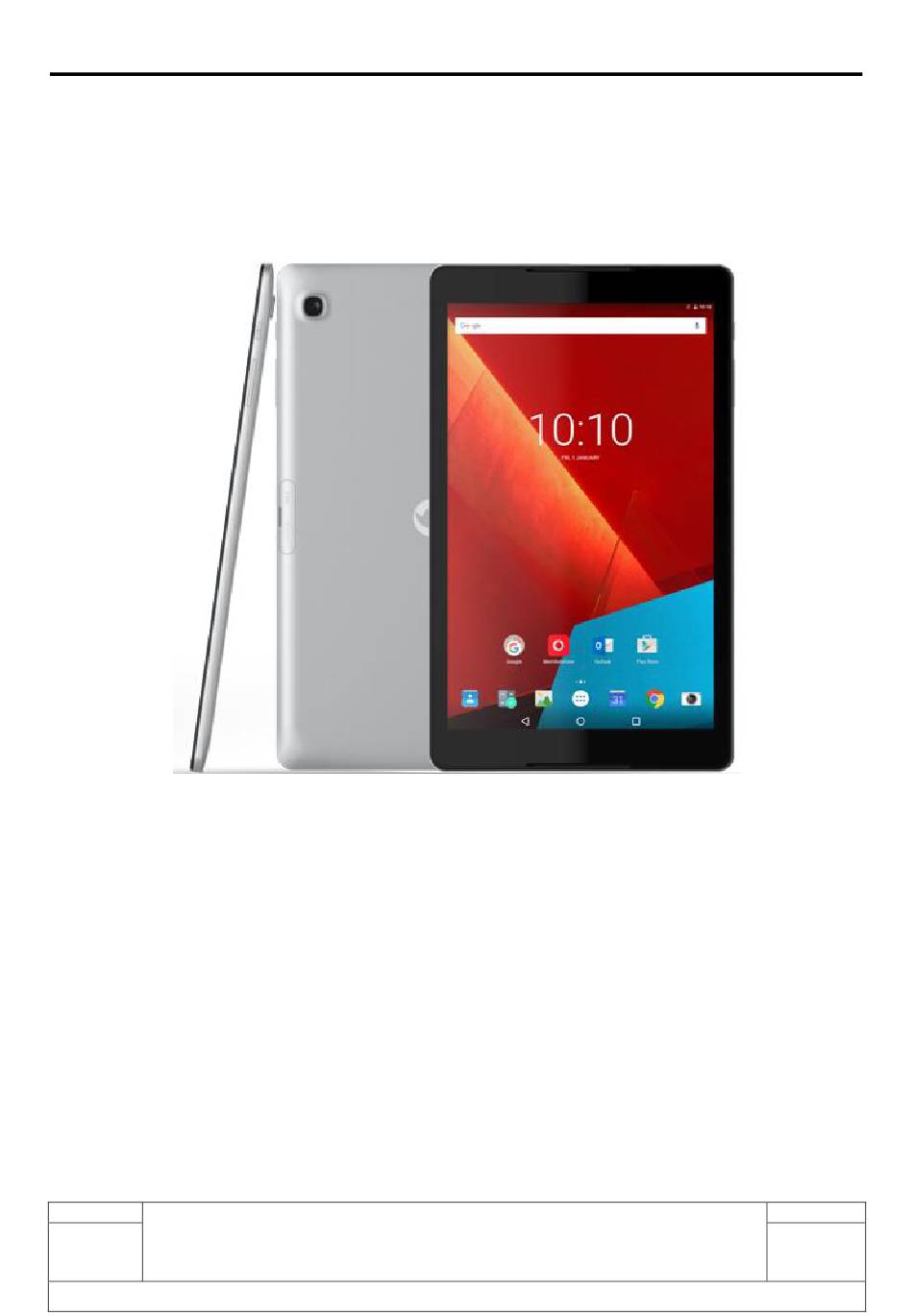

L2 Repair Document
Communication Ltd.
POP4-10 4G&VF
9030G/9030Q/VFD1400
Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior
notice on the characteristics of described equipments.
Rev.
Page
1.0
1/44
9030G/9030Q/VDF1400 Level 2 Repair Document
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
