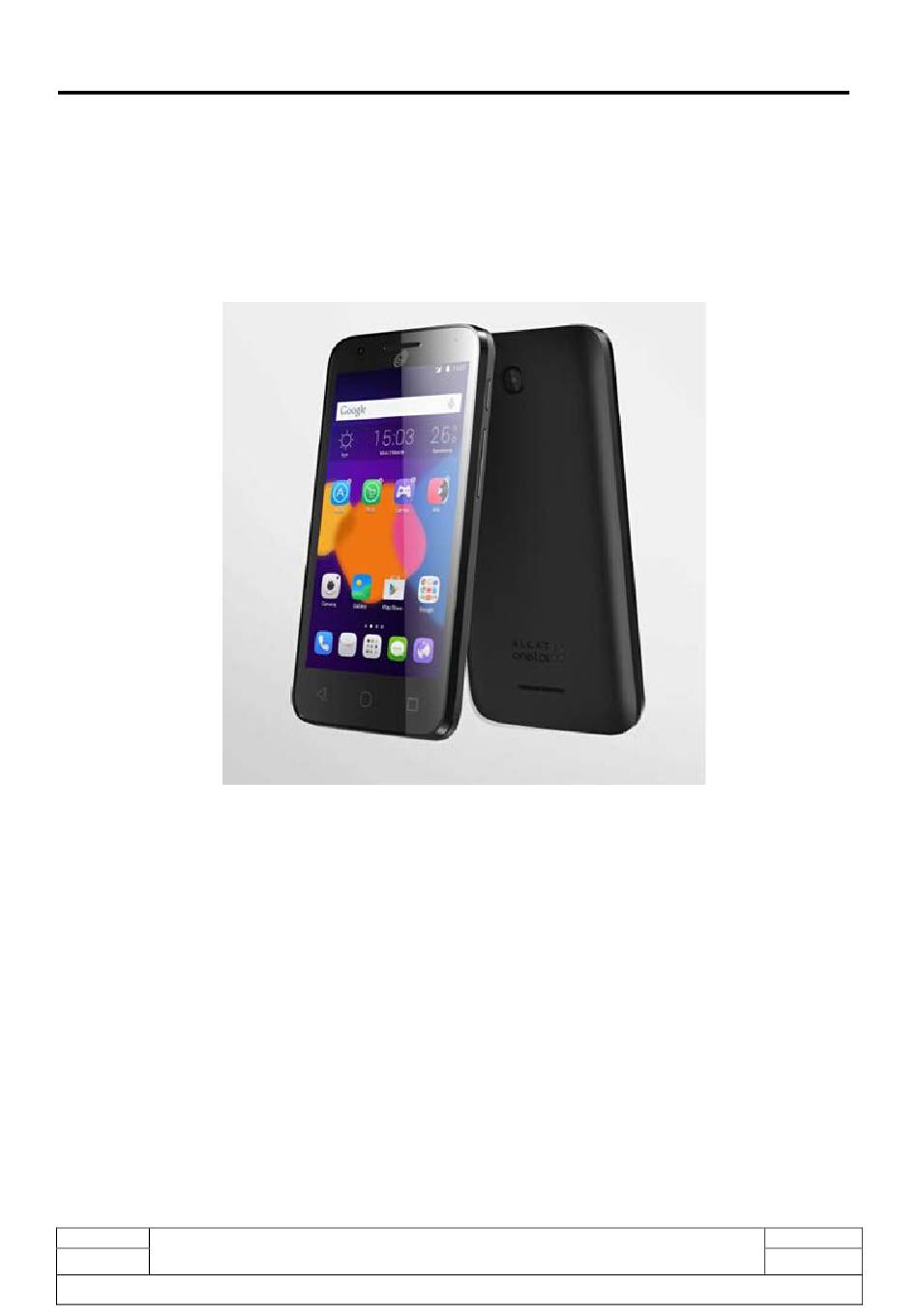

TCL
L1 Service Manual
Communication Ltd.
Pixi4-4.5 TF
A570BL & A571VL
Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior
notice on the characteristics of described equipments.
Rev.
Page
A570BL & A571VL L1 service manual
1.0
1/28
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alcatel Pixi4-4.5 TF and is the answer not in the manual?

Questions and answers

Related Manuals for TCL Alcatel Pixi4-4.5 TF

Summary of Contents for TCL Alcatel Pixi4-4.5 TF

  • Page 1 L1 Service Manual Communication Ltd. Pixi4-4.5 TF A570BL & A571VL Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior notice on the characteristics of described equipments. Rev. Page A570BL & A571VL L1 service manual 1/28...
  • Page 2 L1 Service Manual Communication Ltd. 2016-02-16 Draft creation Peter Ye Abby Zhou Shawn Xiao Rev. Date Modification description Prepared By Checked By Approved By Rev. Page A570BL & A571VL L1 service manual 2/28 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

  • Page 3: Table Of Contents

    L1 Service Manual Communication Ltd. Content General ............................. 4     Portable Label ..........................7     Label zones ............................7     Commercial label samples: ......................8     L1 Spare Part List ..........................9     Accessory ............................9  ...

  • Page 4: General

    L1 Service Manual Communication Ltd. 1. General Pixi4-4.5 TF ATT_VWZ ALCATEL ONETOUCH (A570BL&A571VL) is a phone with MSM8909 platform (Quad Core 1.1GHz), and BT/WLAN/MP3, social network service etc functions. A571VL is Single SIM and work with the EVDO: BC0/1,LTE B4/13; A570BL is Single SIM and work with the GSM 850/900/1800/1900 UMTS: B2/4/5 ATT B2/4/5/17 (TMO B2/4/5/12/17).
  • Page 5 L1 Service Manual Communication Ltd. Touch Panel Type on-cell Touch Points 2 points with gesture ROM (eMMC) Capacity RAM Capacity Memory Internal, End user memory size 4.4GB External storage Capability Yes(Micro SD, up to 32GB) Pixel Auto focus Touch Auto Focus Continuous Auto Focus Camera Flash Main camera...
  • Page 6 L1 Service Manual Communication Ltd. IrDA NFC TAG USB OTG USB 2.0 HDMI/MHL Audio Jack Pogo pins Touch Icon position out of LCD VA area Wireless Display Capability (Miracast) Mini HDMI USB Moderm Tethering Battery capacity(mAh) 1780mAh Battery type hard pack Battery Standby time (Hours) Talking time (Hours)

  • Page 7: Portable Label

    L1 Service Manual Communication Ltd. 2. Portable Label 2.1 Label zones Rev. Page A570BL & A571VL L1 service manual 7/28 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

  • Page 8: Commercial Label Samples

    L1 Service Manual Communication Ltd. 2.2 Commercial label samples: A570BL-2A**US1 IMEI V01 A571VL-2A**US1 IMEI V05 Rev. Page A570BL & A571VL L1 service manual 8/28 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

  • Page 9: L1 Spare Part List

    L1 Service Manual Communication Ltd. 2.3 L1 Spare Part List Please get the latest SPL in Forlog system. 2.5 Accessory 2.5.1 Battery Battery picture Rev. Page A570BL & A571VL L1 service manual 9/28 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
  • Page 10 L1 Service Manual Communication Ltd. Battery feature Model Element Capacity Battery Li Lithium 1780mAh Battery life The bellowing table shows the nominal battery life respectively in standby and talking mode. These typical values are expressed in normal temperature with battery initially full charged and under good ratio coverage.

  • Page 11: Charger

    L1 Service Manual Communication Ltd. If the battery is new, charge it before use. Battery icon will appear after charging a short time. If the battery is deeply discharged, battery icon will appear after charging several minutes and accompany with a slight sound. 2.5.2 Charger 2.6 Maintenance policy...

  • Page 12: For Standard Accessories (Charger, Headset And Usb Cable)

    L1 Service Manual Communication Ltd. 2.6.2 For standard accessories (charger, headset and USB cable) Warranty check Functional check Replacement of defective accessories 2.6.3 If input the following codes on handset, you can: Code Description *#06# Display IMEI number *#2886# Enter Auto Test mode *#3228# Check current software version End user format...
  • Page 13 L1 Service Manual Communication Ltd. 2. Press “volume” key to select “wipe data / factory reset”, press “power” key to confirm; 3. Press “volume” key to select “Yes—delete all user data” and the press “power” key to double confirm the factory reset;...
  • Page 14 L1 Service Manual Communication Ltd. 4. Factory reset complete, press “volume” key to select “reboot system now” and press “power” key to confirm. Rev. Page A570BL & A571VL L1 service manual 14/28 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

  • Page 15: Cell Phone Maintenance

    L1 Service Manual Communication Ltd. 2.7 Cell phone maintenance Equipments for handset test. Handset with full power. One SIM card. It is recommended the following tools: One PC with Windows 2000/NT/XP/Windows 7. One ampere meter for charger current test. 2.8 Invoice check Check warranty status of Handset by POP (Proof of Purchase) ;...

  • Page 16: Imei Check

    L1 Service Manual Communication Ltd. mouth year If IMEI sicker (commercial label) is lost but the phone can be power on, input “*#2886#” at dial mode and then select “MANU” “Traceability” to check date code, IMEI info, CU-REF, PTH(PTM), etc. If the phone can’t power on, please read data code by using Sugar tool.

  • Page 17: Visual Mechanical Inspection

    L1 Service Manual Communication Ltd. Position of humidity sensitive sticker. Humidity sensitive sticker is on the Furnished frame. Here is the humidity sensitive sticker. 2.11 Visual Mechanical inspection Mechanical warranties check items: Corrosion Corrosion on the USB connectors, SIM connectors, and other metal surfaces Hole Holes (Diameter >...

  • Page 18: Accessories Inspection

    L1 Service Manual Communication Ltd. Scratch (length > 3mm) Scratches on any surface, including the front casing, furnished frame, battery cover, LCD Lens, keypad Distortion Bend, twisted or crushed on the h/s, cover/casing or connectors Broken LCD broken, casing broken, cover broken Dropped.

  • Page 19: Cell Phone Maintenance Procedure

    L1 Service Manual Communication Ltd. 2.13 Cell phone maintenance procedure Check that the SIM card is set correctly. Power on the cell phone. If the cell phone asks to input NCK code, which means it is SIM locked, and can only be worked with dedicated SIM card.
  • Page 20 L1 Service Manual Communication Ltd. II. Press “Pass” to continue; Display I. You will see the LCD display three colors: RED, GREEN and BLUE if it functions well; II. Press “Pass” to continue; LCD BLACK I. You will see the LCD displays black if it functions well; II.
  • Page 21 L1 Service Manual Communication Ltd. II. Press “Pass” to continue. Front CAMERA Press “Pass” to continue if the main camera functions well. MAIN CAMERA Press “Pass” to continue if the front camera functions well. CAMERA LED I. Camera LED will turn on if it functions well; II.
  • Page 22 L1 Service Manual Communication Ltd. introduces some emergency call numbers through the headset left if it functions well; II. Press “Pass” to continue; III. You will hear a voice prompt which introduces some emergency call numbers through the headset right if it functions well; IV.
  • Page 23 L1 Service Manual Communication Ltd. III. Put the handset “face down”, “down”, “left”, “right” and “face up” according to instruction, and then the instruction will disappear and it will say “All positions checked” if it functions well; IV. Press “Pass” to continue. I.

  • Page 24: Replace The Handset Parts

    L1 Service Manual Communication Ltd. etc. on the screen if it functions well; II. Press “Pass” to continue. Calling I. It will make a Emergency call if it functions well; II. Hang up to continue. Secinfo I. It will show some info in the screen; II.

  • Page 25: Battery Test

    L1 Service Manual Communication Ltd. wrist should be grounded. This picture illustrates the connection. The operator wears an electrostatic conduct bracelet which connected to an anti-static pad. And the pad place on the work surface which connected to the metal structure workbench, the whole being earthed.
  • Page 26 L1 Service Manual Communication Ltd. Following fixed battery icon display : After charging (charger connected) Table 2.1 Battery charge status on handset If the display does not light on or battery icon does not flash when the charger or the cell phone’s charge function is defective with mechanical or electronics.

  • Page 27: Charger Test

    L1 Service Manual Communication Ltd. 3.3.2. Charger test When the standard charger is connected to the cell phone, check correct running of the charge indicator on the display (refer to item 3.3.1 ). Use the ampere meter to test the current of the charger. Connect the power supply to ampere meter with adapter.
  • Page 28 The reading of the charger output should be 350 mA~550 mA If you have any question or problem, please feel free to contact us (tct_gcc_techSupport@tcl.com) . Thanks for your cooperation. TCL Communication Ltd. Global Customer Service TS Dept. Mar.23 , 2016 Rev.
