TCL
L1 Service Manual
Communication Ltd.

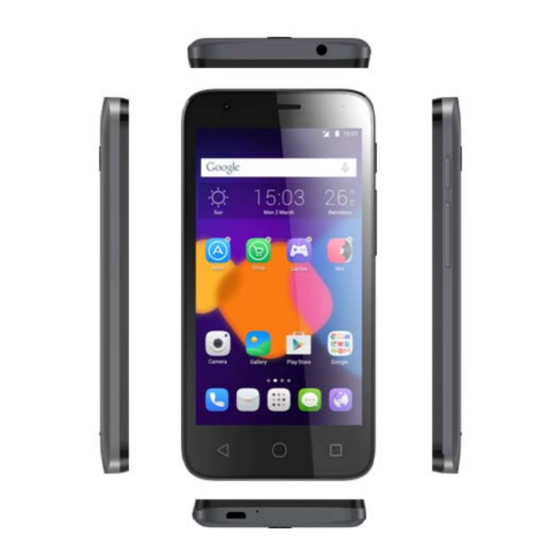

PIXI4-4.5 GOPHONE
4060A
Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior
notice on the characteristics of described equipments.
Rev.
Page
1.1
1/28
4060A Level 1 Service Manual
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Advertisement
Table of Contents
Related Manuals for TCL PIXI4-4.5 GOPHONE
Summary of Contents for TCL PIXI4-4.5 GOPHONE
- Page 1 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. PIXI4-4.5 GOPHONE 4060A Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior notice on the characteristics of described equipments. Rev. Page 1/28 4060A Level 1 Service Manual...
- Page 2 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Verify Update 2016-05-10 Preliminary Draft Mani Lee Abby Zhou Damon Han Rev. Date Modification description Prepared By Checked By Approved By Rev. Page 2/28 4060A Level 1 Service Manual All rights reserved.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Content General ............................. 4 Portable Label ..........................6 2.1. L abel zones ............................6 2.2. C ommercial Label Samples ......................7 ... -
Page 4: General
Communication Ltd. 1. General PIXI4-4.5 GOPHONE (4060A) is a MSM8909 Platform phone with Quad Core, @ 4x1.1GHz, and BT/WLAN/MP3, social network service etc functions. It originally installed android M. It can work with the 2G Data GSM 850/900/1800/1900, 3G Data B2 / B4 / B5, HSPA+ (21M bit/s DL), 4G Data B2 / B4 / B5 / B12 MFBI. - Page 5 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Card slot 1SIM + TF card SIM Card Number SIM Slot 1 3FF (Micro-SIM) SIM Slot 2 SIM Slot 3 Available Ports TF card slot Hot swap No for Sim card, yes for TF card Audio Jack 3.5mm audio jack Multimedia Output...
-
Page 6: Portable Label
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Video 720@30fps Other features Yes, with A-GPS Accelerometer (G sensor) SW solution by default, HW P-sensory Proximity Sensor compatible Sensors Light sensor E-Compass Gyro ---- Hall Switch ---- Battery capacity (mAh) '1780mAh Standby time... -
Page 7: Commercial Label Samples
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2.2. Commercial Label Samples Rev. Page 7/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization. -
Page 8: Cu Label
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 4060A-2AAQUS0 IMEI V02 2.3. CU label 4060A-2AAQUS0 CU V01 Rev. Page 8/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization. -
Page 9: L1 Spare Part List
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2.4. L1 Spare Part List Please get the latest SPL in Forlog system. 2.5. Accessory 2.5.1. Charger 2.5.2. End user USB cable 2.6. Maintenance policy This chapter describes the maintenance of the 4060A series phone authorized at L1 repair centre. The maintenance operations can only be performed in approved repair centres. -
Page 10: For Handset
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. General Main L1 maintenance operations are as following: 2.6.1. For handset: Warranty check Function test SW downloading Replacement of the defective handset. 2.6.2. For standard accessories (charger, headset and USB cable) Warranty check Functional check Replacement of defective accessories... -
Page 11: Cell Phone Maintenance
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. When to use: If you can’t start your handset or when you start your handset, there will be something wrong with it, like can’t charge or can’t charge normally. What does it do when you use End user format function: it will format end user area, and your handset will come back to factory model, everything you save or set in the handset (except SIM card) will be lost. -
Page 12: Invoice Check
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2.8. Invoice check 1. Check warranty status of Handset by POP (Proof of Purchase) firstly. 2. If the end user lost his POP, then consider the data code on commercial label as the purchasing day. Coding year Coding month Coding day... -
Page 13: Imei Check
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2.9. IMEI Check Power on the handset, enter ”Settings” -> “About” -> “Status” ”IMEI” If the IMEI sticker in the back casing is not lost: We should make sure that the IMEI number MUST be the same with the one on the IMEI sticker; if not, it’s out of warranty policy. -
Page 14: Visual Mechanical Inspection
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2.11. Visual Mechanical inspection Mechanical warranties check items: Corrosion Corrosion on the USB connectors, SIM connectors, and other metal surfaces Hole Holes (Diameter > 1mm) on any surface, including front casing, decorate frame, battery cover, LCD Lens, keypad. -
Page 15: Accessories Inspection
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. LCD broken, casing broken, cover broken Dropped. Keypad tear off, LCD lens, connectors fallen off Gap: External physical damage relating to abnormal use, like front case and frame opened Others: Damage caused by disassembly like wrong part assembly, lost of components Use in abnormal environment like too high temperature with plastic melts... - Page 16 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Press *#2886# in dial screen and then you will see the interface displaying the SW version. Select “Auto” to start the auto test, or select “MANU” to do the MMI test manually. If one of the tests failed during “Auto”...
- Page 17 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. IX. You will see the LCD display grey if it functions well. X. Press “Pass” to continue. KEYPAD I. You will see the key of the V+, V-, and power, click the corresponding key, then the key turn gray on the screen.
- Page 18 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Vibrator You can feel the vibration if it functions well. Accessories Insert the headset. You will hear one record in left discrete; The “Volume Down “and “Volume Up” will display grey if it functions well. III.
- Page 19 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. III. Press “Pass” to continue; G-Sensor Put the handset up and towards up according to instruction; Put the handset towards the directions indicated by instructions; it will say “All positions checked”...
-
Page 20: Software Download
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. II. Press”Pass” to continue; I. It will run GPS and search for satellite, and then it will display info such as “PRN”, “SUR”, etc. on the screen if it functions well; Press”Pass”... - Page 21 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Rev. Page 21/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 22 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 2) Double click to install the Multi-Download QCT_SP, and then select the “Install driver” check box for the driver installation. Rev. Page 22/28 4060A Level 1 Service Manual All rights reserved.
- Page 23 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Rev. Page 23/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
-
Page 24: Sw Download Process
All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. 3.3 SW download process Login the Multi-Download QCT_SP, then select the 4060A model: Note: upgrade during the power on status.. The upgrade Diag is disabling by default, press “###2324 #” in dial screen, then the pop up window will dis play “Diag Protector OFF”... - Page 25 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. There are two upgrade mode during the power off status.. a. Insert the USB cable, and then reinstall the USB driver (You can refer to the item 3.2 for the details of Android USB driver installation) b.
- Page 26 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. Click the ‘Download’ button, it will display the SW version , IMEI, Cu ref etc of the handset. Rev. Page 26/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 27 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. III. Upgrade finished: If you have any question or problem, please feel free to contact us. Thanks for your cooperation. Rev. Page 27/28 4060A Level 1 Service Manual All rights reserved.
- Page 28 All manuals and user guides at all-guides.com L1 Service Manual Communication Ltd. TCL Communication Ltd. Global Customer Service TS Dept. Mar,16 , 2016 Rev. Page 28/28 4060A Level 1 Service Manual All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
