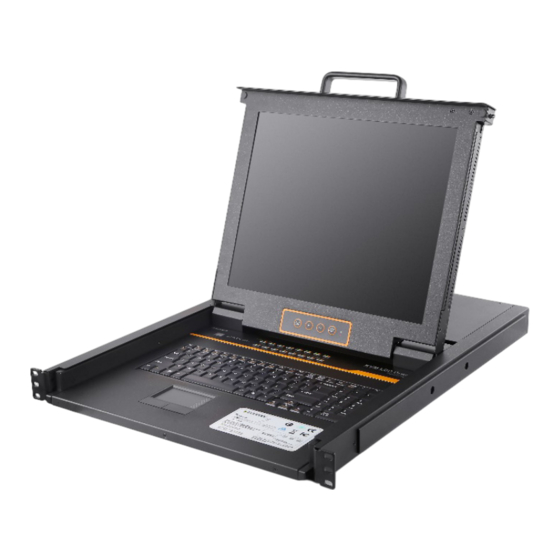

KinAn LC1932 User Manual

Rackmount kvm console（8 port / 16 port/ 24 port / 32 port）

Hide thumbs

page of 25

/ 25
Bookmarks

Quick Links

Download this manual

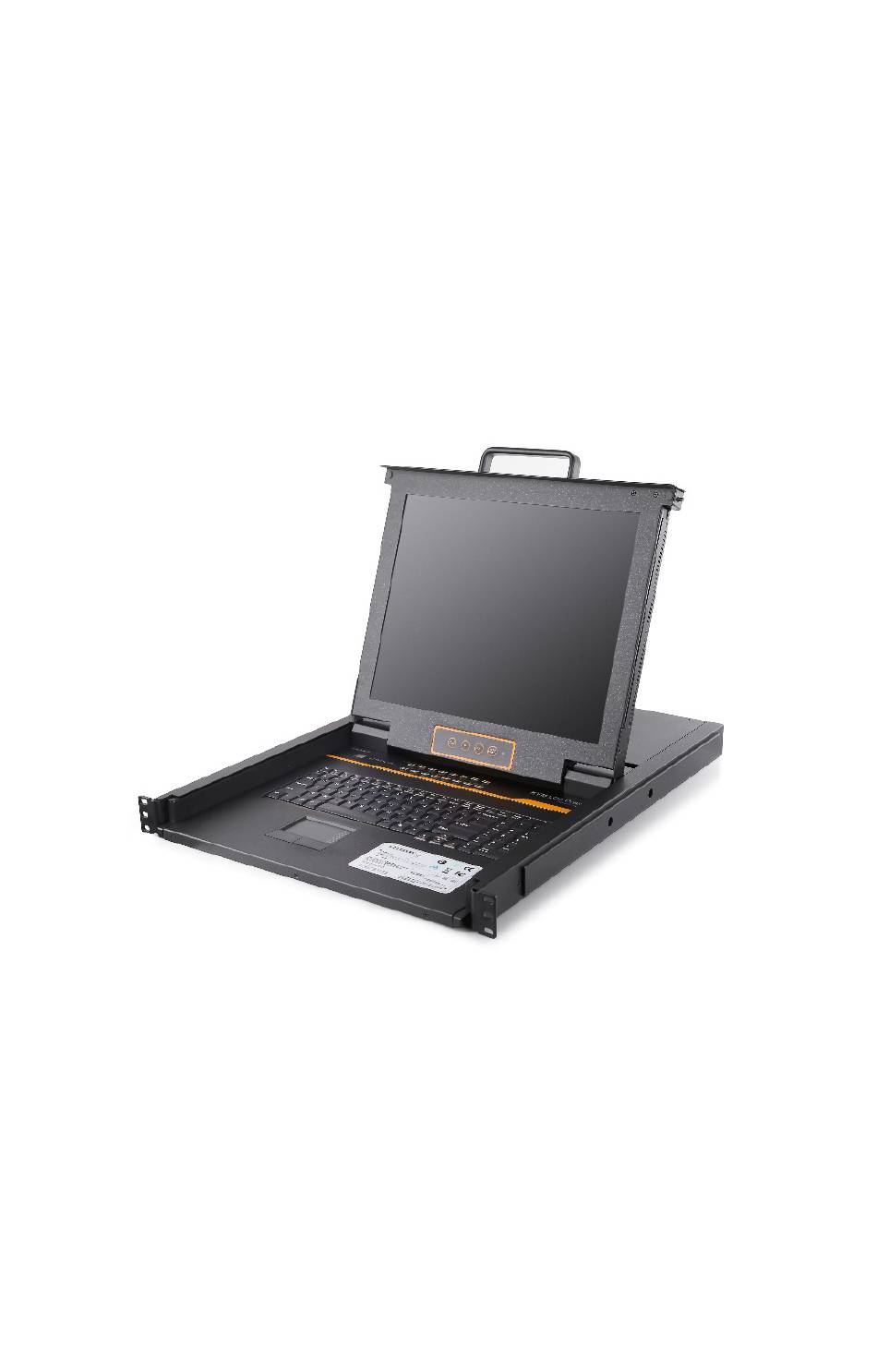

Rackmount KVM Console

（8 Port / 16 Port/ 24 Port / 32 Port）

User Manual

www.kinankvm.com

Print date: 2024/10

Version: V5.5

Need help?

Do you have a question about the LC1932 and is the answer not in the manual?

Questions and answers

Summary of Contents for KinAn LC1932

Page 2 User Manual 8 Port/16 Port /24 Port /32 Port Contents Overview ...................... 3 Description ........................... 3 Features ...
Page 3 User Manual 8 Port/16 Port /24 Port /32 Port Overview Description The KVM console integrates multiple‐port CAT5 KVM switches in a 1U height console. Multiple computers can be controlled from the single monitor‐keyboard‐mouse console. It is easy and fast to install the CAT5 KVM console; you just need to connect corresponding cables to the right ports of the CAT5 KVM and its module without software ...
Page 4 User Manual 8 Port/16 Port /24 Port /32 Port Front View 1‐1.1 front view 1．LCD Module 2．Rear Bracket Slot ...
Page 5 User Manual 8 Port/16 Port /24 Port /32 Port Structure and Size (17”) 1‐1.2 Structure and Size (19”) 1‐1.3 - 5 - ...
Page 6 User Manual 8 Port/16 Port /24 Port /32 Port Rear View CONSOLE 100-240VAC/50~60Hz CONSOLE 100-240VAC/50~60Hz CONSOLE 100-240VAC/50~60Hz CONSOLE 100-240VAC/50~60Hz 1‐1.4 ...
Page 7 User Manual 8 Port/16 Port /24 Port /32 Port Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 600‐850mm (17〞), 716‐825mm (19〞) in a standard 19”rack. ...
Page 8 User Manual 8 Port/16 Port /24 Port /32 Port Installation Diagram 1) Make sure the KVM console has been connected to the ground.( ①) 2) Connect any available KVM port and KVM adapter with CAT5 cables.( ②) 3) Connect the adapter to the KVM and the PC or server(③) 4) Plug the female port of the power cable in the KVM power socket, and plug the male port ...
Page 9 User Manual 8 Port/16 Port /24 Port /32 Port KVM Adapter PS/2 Adapter Model No. Keyboard/Mouse Explanation KCM‐1100P PS/2 Connect to PS2 / VGA server ...
Page 10 User Manual 8 Port/16 Port /24 Port /32 Port Operation  Release the release catch; UNLOCK UNLOCK UNLOCK 2‐2.1 unlocking *Note: The release lock can only do horizontal locking, it can’t bear any load. ...
Page 11 User Manual 8 Port/16 Port /24 Port /32 Port Closing the console  Close the LCD display panel and the power automatically shut down.  Push the release catch in the direction of the arrow; pull the LED panel all the way in until it automatically locks up. AUTO LOCK ...
Page 12 User Manual 8 Port/16 Port /24 Port /32 Port LED Operating Instructions 3‐1.1 16 Port LED button front view No. Components Function 1‐16 ...
Page 13 User Manual 8 Port/16 Port /24 Port /32 Port 3‐1.2 24Port /32 Port LED button front view No. Components ...
Page 14 User Manual 8 Port/16 Port /24 Port /32 Port OSD Operation Double click the right button of the mouse or double click hotkey 【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD ...
Page 15 User Manual 8 Port/16 Port /24 Port /32 Port OSD Functions Menu Keys Submenu/Explanation Set User login‐Set User login account and password Set accessible‐Set access permissions ADM F1 ...
Page 16 User Manual 8 Port/16 Port /24 Port /32 Port F1‐ADM  Menu Overview Operating instructions 1) Press【F1】or 【←】【→】enters the F1 submenus. 2) Press ...
Page 17 User Manual 8 Port/16 Port /24 Port /32 Port 2. Set Accessible—press【Enter】to select Set Accessible, then below menu appears: (diagram 4‐1.3) ...
Page 18 User Manual 8 Port/16 Port /24 Port /32 Port 【F7】 to add or delete a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column. (See below diagrams). While BRC mode is in effect, we can synchronous operate multiple computer ports. Note: While BRC mode is in effect, the mouse is forbidden to use. ...
Page 19 User Manual 8 Port/16 Port /24 Port /32 Port F2‐Scan  Menu Overview Operating instruction Press【F2】or 【←】【→】enters the F2: submenus. ...
Page 20 User Manual 8 Port/16 Port /24 Port /32 Port F3‐Set  Menu Overview Operating instructions 1) Press【F3】or 【←】【→】enters the F3 submenus. 2) Press ...
Page 21 User Manual 8 Port/16 Port /24 Port /32 Port OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey” submenu. Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 ...
Page 22 User Manual 8 Port/16 Port /24 Port /32 Port F4‐Tool  Menu Overview Operating instructions 1）Press【F4】or 【←】【→】enters the F4 submenus. 2) Press ...
Page 23 User Manual 8 Port/16 Port /24 Port /32 Port F6‐Edit port names  Select the port with【↑】【↓】 key;  Press F6 and key in the new name or modify the old one, then press Enter to ...
Page 24 User Manual 8 Port/16 Port /24 Port /32 Port Appendix Specifications(17〞) Model LC1708 LC1716 LC1724 LC1732 Direct 8 ...
Page 25 8 Port/16 Port /24 Port /32 Port Specifications (19〞) Model LC1908 LC1916 LC1924 LC1932 Direct 8 16 24 32 Computer connections ...
