- Page 1 Installation guide Overfill warning device Model 84824, series “A” December 2016 Date of issue Form number 403496 Version 2 Read manual prior to installation or use of this product. Keep manual nearby for future reference.
-
Page 2: Table Of Contents
Contents Description..... . . Owner/Operator responsibility ..Installation ..... . . Maintenance . -
Page 3: Description

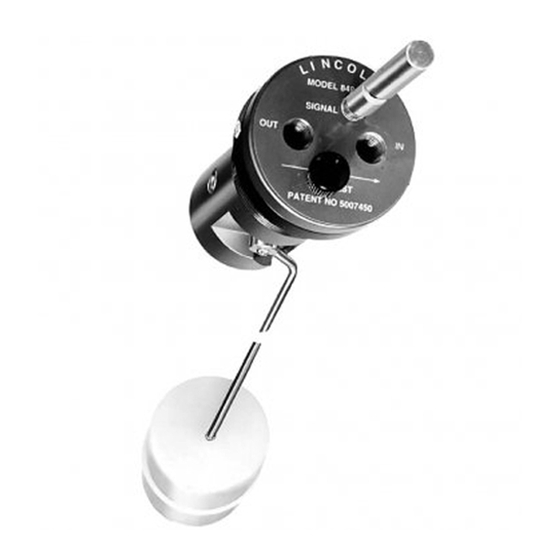

Description Model 84824 overfill warning device, designed for double wall tanks, functions as air supply shut-off to pump when tanks reach near full capacity. In shut-off position, air is diverted from pump to signal whistle to alert full tank condition. Warning device automatically resets when tank is emptied. -
Page 4: Installation
Installation Maintenance 1 Valve must be installed in direction that Overfill warning device is similar to fine air will permit free rise and fall of float tool in that effective life and performance assembly. Inspect tank interior for baffles can be reduced by dirty air (air that has not that can obstruct float action. -
Page 5: Exploded Views
Fig. 1 / in. NPT Float direction Air in port indicator arrow Signal/whistle port Test port Out port Collar Signal whistle Test port cap Tape measure Collar set screw Ø 2 in. pipe Valve body (50,8 mm) 8 in. (203,2 mm) Valve body 29 / in. - Page 6 This page left intentionally blank.
- Page 7 This page left intentionally blank.
-
Page 8: Warranty
General Conditions of Sales, available at: www.lincolnindustrial.com/technicalservice or www.skf.com/lubrication. ® SKF is a registered trademark of the SKF Group. ® Lincoln is a registered trademark of Lincoln Industrial Corp. © SKF Group 2016 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permis- sion is granted.
