the installation is complete, click "arduino.exe" again to enter the IDE programming interface.

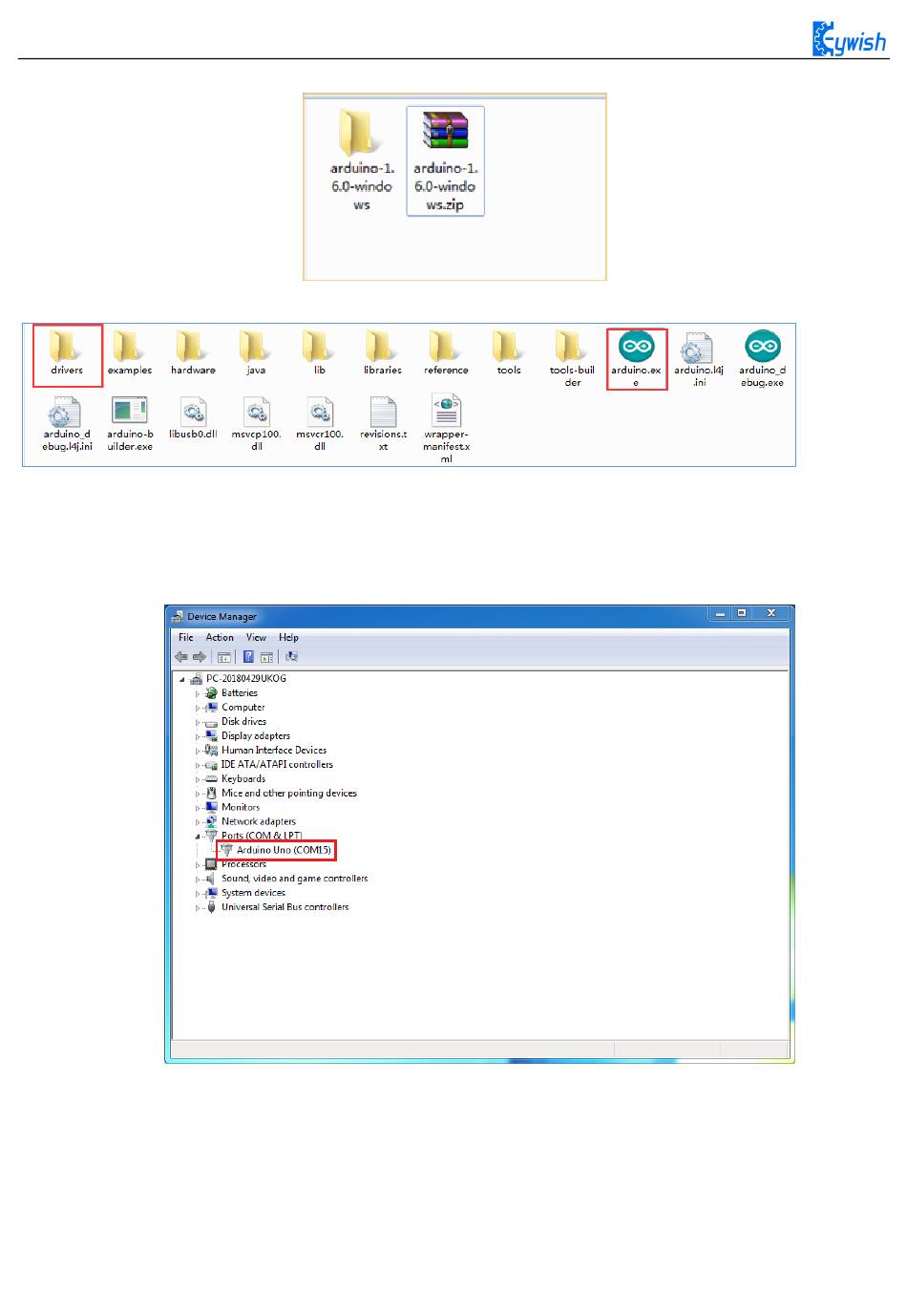

Figure 2.1.2 Arduino IDE Installation Package
Figure 2.1.3 Extracted files
When finish the installation of the IDE，we need to connect to the Arduino mainboard，click"My
Computer"→"Properties"→"Device Manager"→ "Viewing Ports (COM and LTP)"，If you can see
as the Figure 2.1.4
Figure 2.1.4 Driver installation success interface
That indicates the driver has been installed successfully. At this time we open the IDE, select the
corresponding development board model and port in the toolbar to use normally. If you see Figure 2.1.5, it
means that the computer does not recognize the development board and you need to install the driver
yourself.
