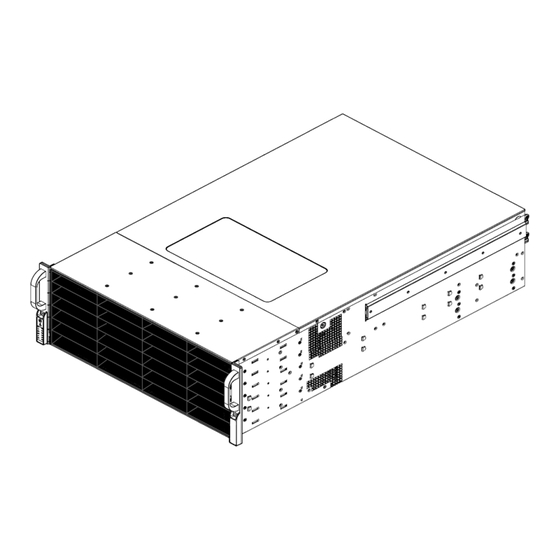

Chassis Replacement Instructions
This document describes how to swap out the chassis of a
SnapScale X4 node from Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Prepare the Node

Power Off and Remove

1. At the Web Management Interface, go to Storage > Nodes
and click the node name to view the Node Properties page.
2. Click Remove Node from SnapScale and confirm.
3. If the node is running, wait for the node to reboot as an
Uninitialized node, and then press the Power button on
its left flange to shut it down.
4. When all the front LEDs are off, disconnect the power
cords of the node.
5. Disconnect all remaining cables from the node.

Remove the Bezel

1. If locked, unlock the bezel.
2. Press the release button toward the center and pull the
right side out.
3. Pull the left tabs out of their slots and set the bezel aside.
10400469-002 12/2013
IMPORTANT: For SnapScale nodes running ROS 3.x,
contact Overland Technical Support before attempting
this procedure. Go to
support
for details.
©2013 Overland Storage, Inc.
SnapScale
™
http://docs.overlandstorage.com/
Client
Client
Storage
Storage
1Gb Config
X4 Node
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SnapScale X4 Node and is the answer not in the manual?

Questions and answers

Related Manuals for Overland Storage SnapScale X4 Node

Summary of Contents for Overland Storage SnapScale X4 Node

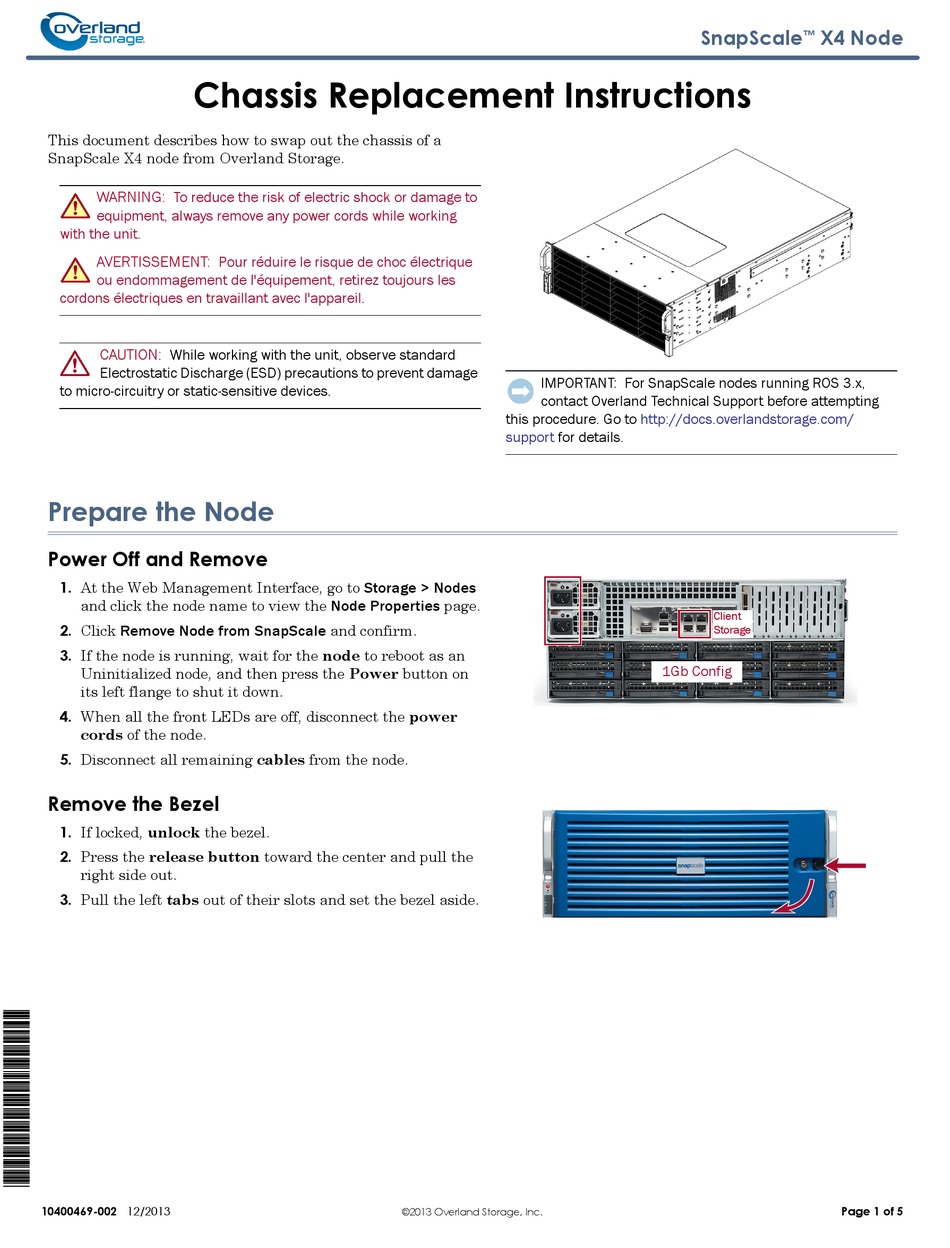

  • Page 1 ™ Chassis Replacement Instructions This document describes how to swap out the chassis of a SnapScale X4 node from Overland Storage. WARNING: To reduce the risk of electric shock or damage to equipment, always remove any power cords while working with the unit.
