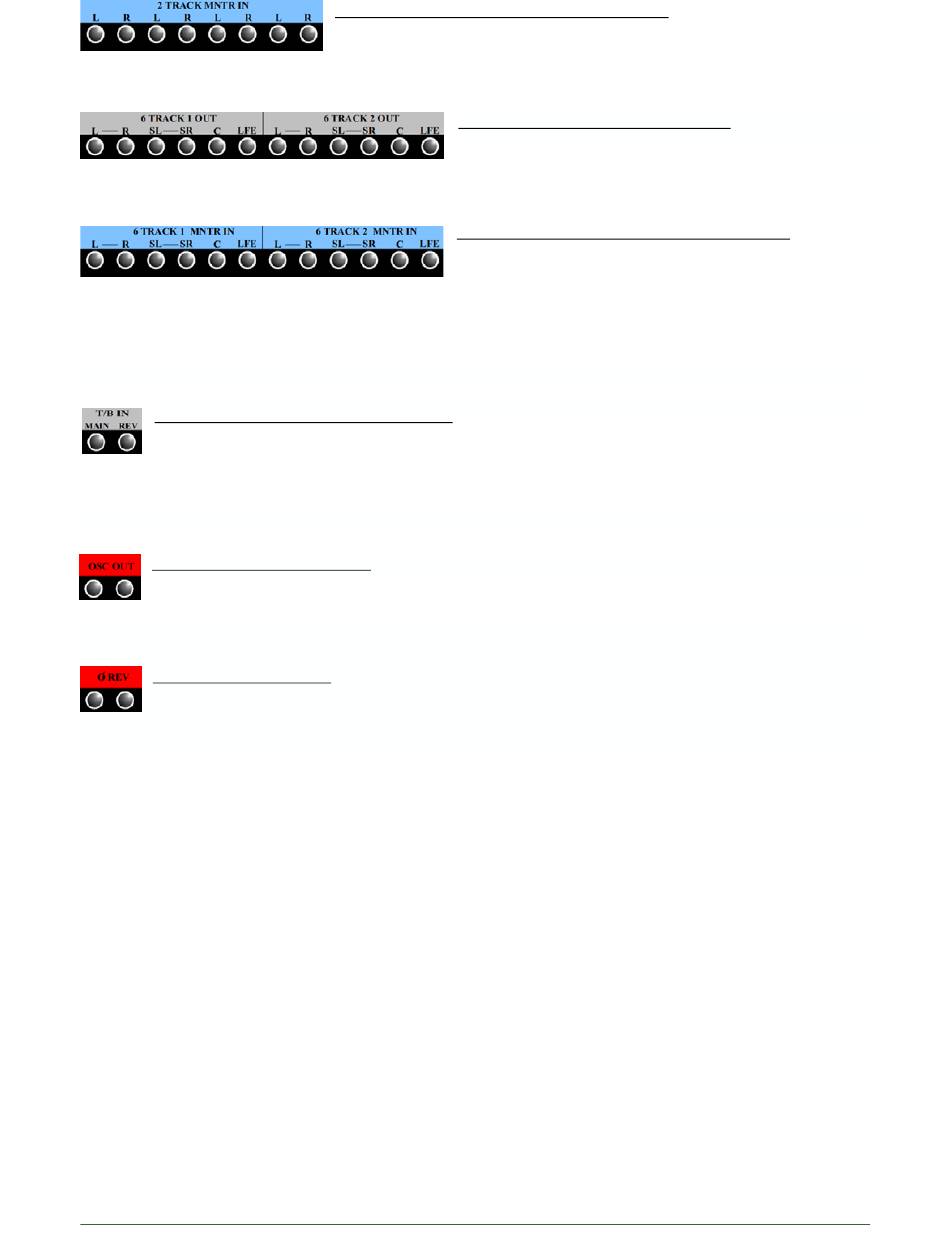

Talkback Patch Points

T/B IN (Talkback Input MAIN and REV): Inputs for external sources routed to Talkback
• MAIN: Mic input an external mono source
The EXT TBK button must be engaged for the external source to be routed
o
REV (Reverse Talkback): Input for the reverse talkback mic
•

Oscillator Patch Points

OSC OUT (Oscillator Output): Output of the console sine-wave generator
• Signal is present when the Oscillator ON button is engaged
• The same signal is present at both points

Phase Reverse (polarity inverter)

Ø REV (Phase Reverse): Polarity inverting patch points
The two points are wired out of polarity with each other
•
• A signal patched into one jack will be out of polarity (phase reversed) at the
other point
L e g a c y A X S
2 TRACK MNTR IN (2-Track Monitor Inputs):
Feeds the 2T1, 2T2, 2T3, 2T4 monitor playback selectors
Half-normalled from 2T1 – 2T4 OUT
Patching to these points will replace the feed to the 2 track
monitor selectors with the patch cord signal
6 TRACK MNTR IN (2-Track Monitor Inputs):
to the Talkback outputs when Talkback is activated
6T1-6T2 OUT (6-Track Outputs 1-2): Returns from the
external 5.1 surround playback source outputs
Left, Right, Left Surround, Right Surround,
Center, and LFE
Half-normalled to 6 TRACK MNTR IN 1-2
Feeds the 6T1 & 6T2 monitor playback
selectors
Half-normalled from 6 Track 1-2 OUT
Patching to these points will replace the feed
to the 6-track monitor selectors with the
patch cord signal
