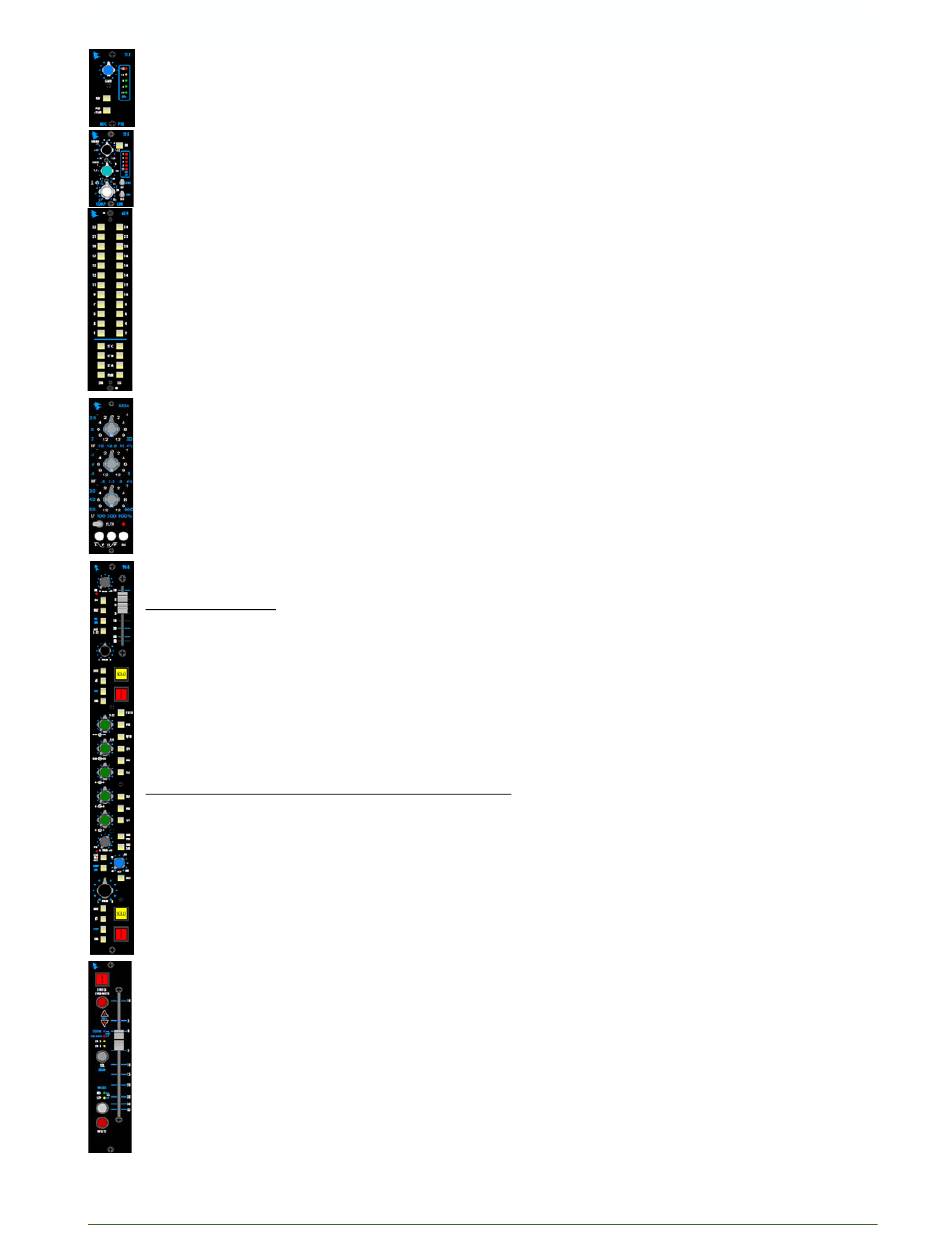

Channel Strip Overview

Upper 200 Slot
212 Microphone Preamplifier (standard configuration)
•
• Optional 205 Direct Input Module
Lower 200 Slot - May be fitted with one of three processor options:
215 Sweep Filter
•
225 Compressor/Limiter (standard configuration)
•
235 Noise Gate/Expander
•
624 Bus Assignment Module
• Routes Small Fader or Large Fader to Multitrack Buses 1-24
• Routes Small Fader and Large Fader to stereo Program Buses (STA, STB, STC)
• PAN switch to engaged the pan-pot for both faders
Left/Right panning to stereo Program Buses
o
Odd/Even panning to Multitrack Buses
o
500 Series EQ Slot
Receives lower 200 slot output (COMP) when engaged (standard configuration)
500 series equalizers:
•
550A 3-Band EQ
o
550b 4-Band EQ
o
560 10-Band Graphic EQ
o
565 Filter Bank
o
• Any VPR Alliance approved 500 Series module (except preamps)
968 Input Module
Channel Controls
Input Selection: Input
•
-6dB Line In Pad In/Out
•
Signal Processing Routing:
•
Output Routing:
•
Direct Output Routing: DIR SM and DIR PRE
o
Small Fader to Multitrack Buses: 24
o
• Auxiliary Sends 1-12: Level, Pan, ON/off
Pre-fader Routing
o
Aux Send 5-12 from Small Fader
o
Large and Small Fader Controls (on both paths)
Input TRIM
•
Ø: Phase Reverse: Polarity inverter
•
FILT: High-pass Filter In/Out: Sweep on Large Fader, fixed on Small Fader
•
INS: Insert Return In/Out
•
Pan-pot
•
• 45mm Small Fader
SOLO
•
• Solo and channel routing SAFE mode
MUTE
•
948 Large Fader
100mm long-throw automated resistive Large Fader
•
L e g a c y A X S
FLIP and ALT Line In to Small Fader
COMP LRG and EQ SM
