NOTE: Aux Sends 5-12 can be fed from the Small Fader path by engaging the AUX 5-12 button
in the 968 Small Fader controls.

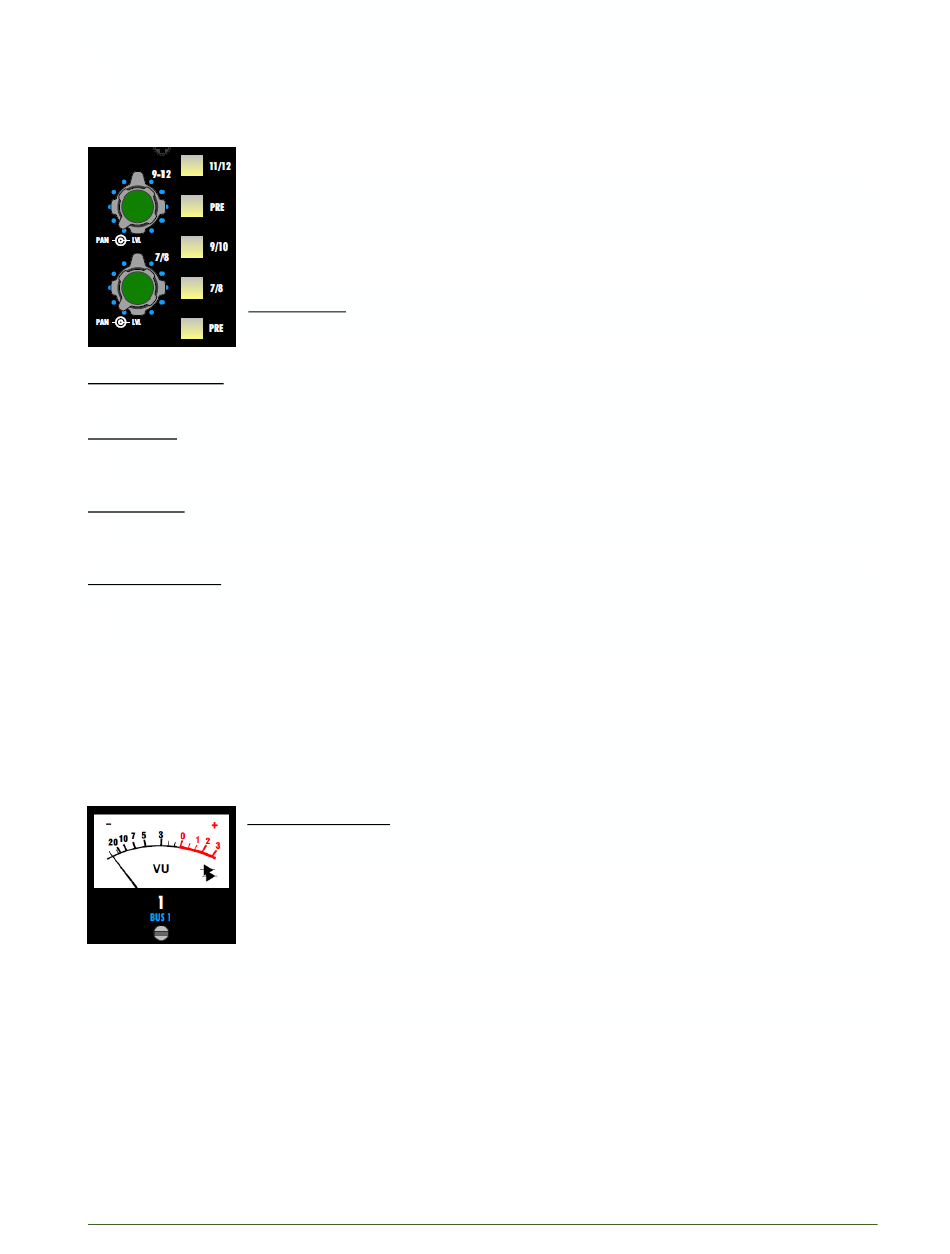

Stereo Aux Sends 7-12
Aux Sends 7-12 are organized as three stereo Aux Sends that may be used as a
cue sends for headphones during recording or effects sends during mix down.
Stereo Aux Sends 9/10 and 11/12 can be used simultaneously, but will share the
same level and pan-pot.
Aux Sends 7-12 are fed post-fader from the Large Fader signal by default.
ON (on/off): On/off switch for each stereo Aux Send
7/8, 9-12 (LVL): Stereo level potentiometer for each stereo send
The inside or top pot is the level control for each stereo pair
•
7/8 (PAN): Stereo pan-potentiometer for each stereo send
The outside ring or bottom pot is the pan-pot for each stereo send
•
• -2.5dB pan law
9-12 (PAN): Stereo pan-potentiometer for each stereo send
The outside ring or bottom pot is the pan-pot for each stereo send
•
• -2.0dB pan law
PRE (Pre-Fader): Engaging the PRE button will switch sends 5/6-7/8 or 9/10-11/12 to be sourced pre-
fader from the assigned path
Normally fed post-fader from the Large Fader path
Illuminates when engaged
NOTE: Aux Sends 5-12 can be fed from the Small Fader path by engaging the AUX 5-12 button
in the 968 Small Fader controls.

Channel VU Meters

A VU Meter is provided for each channel, along with a LED Peak Indicator for each audio path (Small
Fader and Large Fader).
VU (Volume Unit): Channel level indicator
The channel VU Meter can be fed from the following points:
The feed to the channel VU Meter is determined by the selection made using the VU SELECT controls
in the Master Section. These selections are global and apply to all channel VU Meters.
L e g a c y A X S
Illuminates when the stereo send is ON
Small Fader path input (pre-EQ & Insert)
Large Fader path input (pre-EQ & Insert)
Channel Direct Output
Associated Multitrack Bus Output
Stereo Program Bus Output (on channel VU meters 25-32)
