API Legacy AXS Operator's Manual page 77

CAUTION: The MIC PREAMP INPUT patch point will carry 48-Volt phantom power when the 48V
button is engaged on the associated 212 Mic Preamp. Care should be used and 48V
should be always be disengaged when patching to these points.
Patch points for alternate external sources (such as virtual instruments, extra DAW returns, etc.)
normalled to the ALT LINE INPUT patch points are not provided in the standard configuration. However,
the ALT LINE INPUTs are available via a multi-pin connector on the back of the patch bay to allow normal
interfacing to these points.
L e g a c y A X S

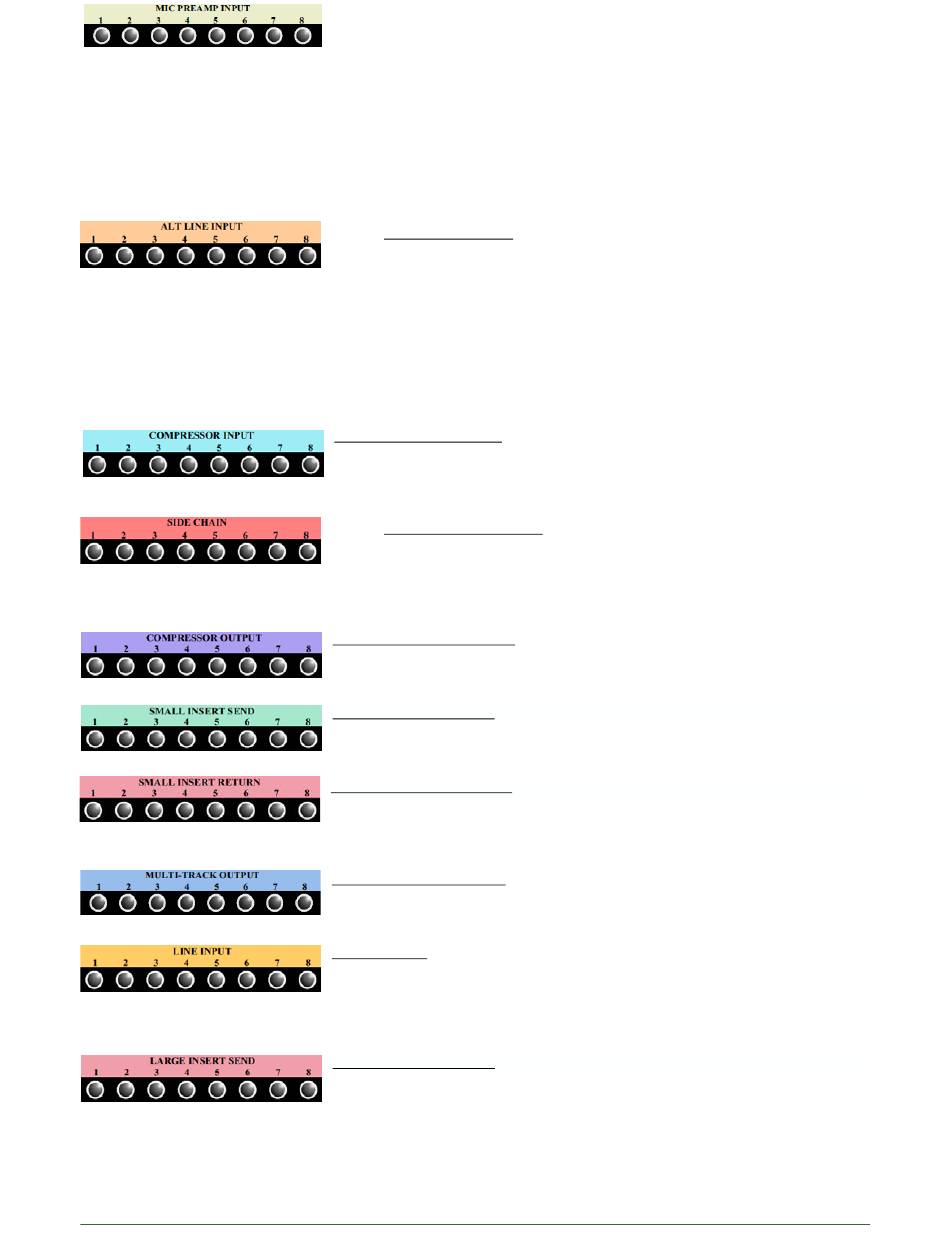

MIC PREAMP INPUT: 212 Mic Preamp inputs
• Balanced, low-impedance, mic-level input
Full-normal from MIC TIE-LINE patch points
•
• Breaking input: Inserted patch cord will replace normalled
connection
• Not used with 205 Direct Input Module
ALT LINE INPUT: Secondary line-level inputs
•
Balanced, low-impedance, line-level input
•
• Alternate input to the Small Fader path
Half-normal from owner specified source (patch optional)
•
• Breaking input: Inserted patch cord will replace normal input
COMPRESSOR INPUT: Lower 200 slot input
Balanced, low-impedance, line-level input
•
• Breaking input: Inserted patch cord will replace normalled
connection
SIDE CHAIN (input): Lower 200 slot detection path input
•
• Balanced, low-impedance, line-level input
Full-normal from COMPRESSOR INPUT
•
Breaking input: Inserted patch cord will replace normalled
•
connection
COMPRESSOR OUTPUT: Lower 200 slot output
Balanced, low-impedance, line-level output
•
• Outputs split if patched
SMALL INSERT SEND: Insert Send from Small Fader path
Always active
Pre-fader, post-EQ
SMALL INSERT RETURN: Insert Return to the Small Fader path
Patched signal is inserted in the Small Fader path when the
INS button is engaged
Pre-fader, post-EQ
MULTITRACK OUTPUT: Multitrack recorder returns
Half-normal to LINE INPUT
•
• Outputs split if patched
LINE INPUT: Main line-level inputs
Balanced, low-impedance, line-level input
•
Half-normal from MULTITRACK OUTPUT
•
Breaking input: Inserted patch cord will replace normalled
•
connection
LARGE INSERT SEND: Insert Send from Large Fader path
Always active
Pre-fader, post-EQ
