MONO: Sums the Left and Right speaker feeds to mono
• Illuminates when engaged
ALL CUT: Cuts the feed to all control room speaker feeds
Illuminates when engaged
•

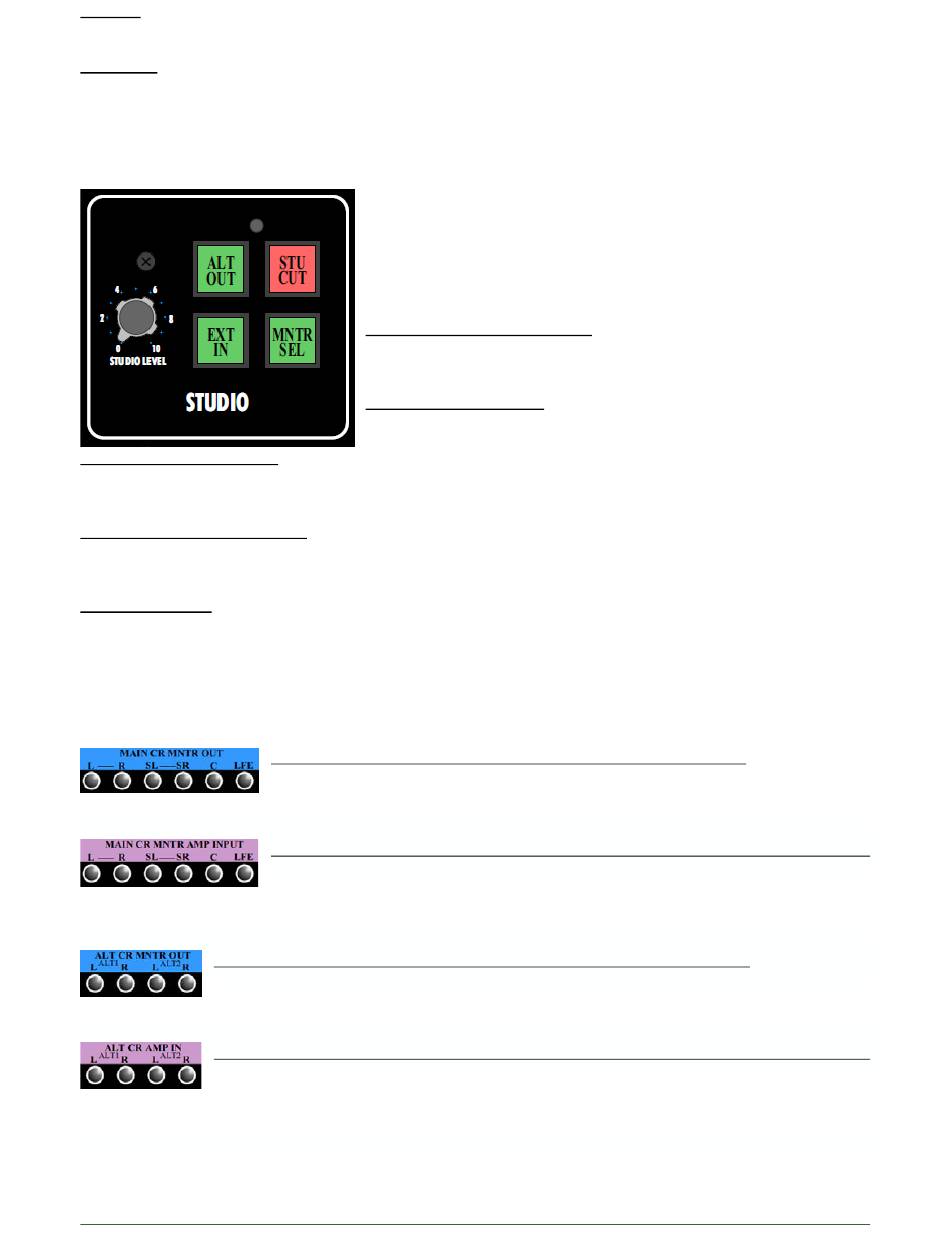

Studio Monitoring

Studio monitor feeds are provided for two (2) studio monitor systems.
EXT IN (External Input): Route the signal from the EXT STUDIO MNTR IN patch points to the studio
monitor feed
Illuminates when engaged
ALT OUT (Alternate Output): (Alternate Output): Activates the studio monitor alternate outputs
Activates a second set of studio monitors
Illuminates when engaged
STUDIO LEVEL: Level control for the studio monitor outputs
Sets the level for the main studio and alternate monitor system outputs
Fed from the studio monitor source selectors

Monitor System Patch Points

Control Room Monitor Patch Points
ALT CR MNTR OUT (Alternate Control Room Monitor Outputs 1 & 2): Outputs to the
alternate control room monitor systems 1 & 2
ALT CR MNTR AMP INPUT (Alternate Control Room Monitor Amplifier Inputs 1 & 2):
Inputs to the alternate control room monitor amplifiers 1 & 2
•
•
L e g a c y A X S
There is one studio monitor output that normally feeds the main
studio monitor system. The output can be switched to feed an
alternate studio monitor system (ALT OUT) instead of the main
system.
The studio monitor systems can be fed from the following sources:
MNTR SEL (Monitor Select): The selected control room monitor
source is routed to the studio loudspeakers
Illuminates when engaged
STU CUT (Studio Cut): Cuts all studio speaker feeds
• Illuminates when engaged
MAIN CR MNTR OUT (Main Control Room Monitor Outputs): Outputs to the
MAIN control room monitor system
Half-normalled to MAIN CR MNTR AMP INPUT
Outputs split if patched
MAIN CR MNTR AMP INPUT (Main Control Room Monitor Amplifier Inputs):
Inputs to the main control room monitor amplifiers
Half-normalled from MAIN CR MNTR OUT
•
Breaking input: Inserted patch cord will replace the feed to the main
•
monitor amps with the patch cord signal
Half-normalled to ALT CR MNTR AMP INPUT 1 & 2
Outputs split if patched
Half-normalled from ALT CR MNTR OUT 1 & 2
Breaking input: Inserted patch cord will replace the feed to the alternate
monitor amps with the patch cord signal
