Illuminates in red when engaged
Stereo Fader (not shown): Controls the output level of the Stereo Return output
Full-size 100mm resistive fader
+10dB of gain
-∞
dB of attenuation
Unity gain when set to 0dB
Controlled by automation
Meter: Displays Stereo Return output level
• Stereo 5-segment LED meter
To make stereo Program Bus and/or Grand Master assignments from the Stereo Return, engage the
buttons for the desired Program Bus(es) (STA, STB, and/or STC) and/or the Grand Master (GM). The
engaged button(s) will illuminate indicating the assignment has been made to that bus.

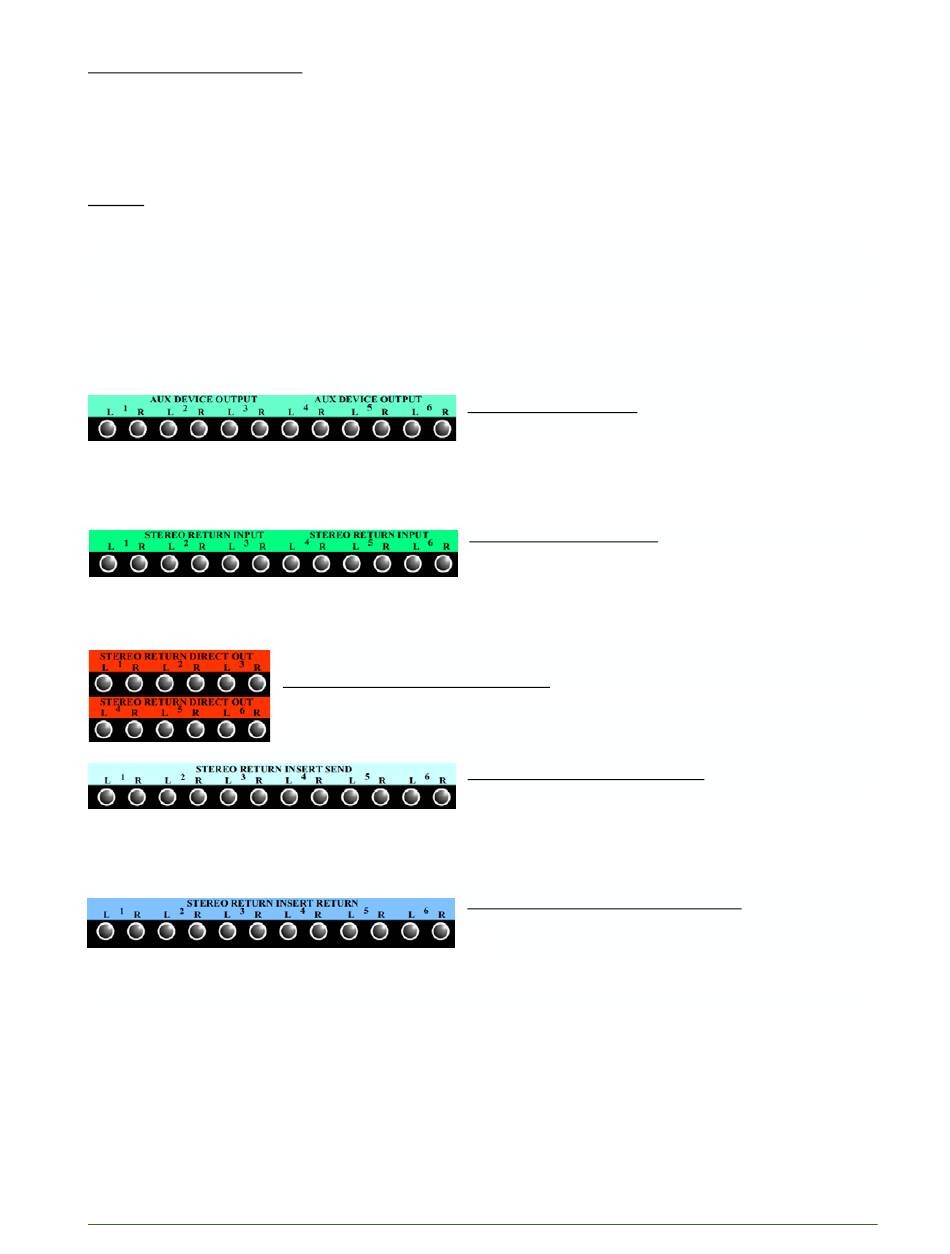

Stereo Return Patch Points

The following section outlines Stereo Return patch points.
L e g a c y A X S
STEREO RETURN DIRECT OUTPUT: Stereo Return Direct Output
• Outputs split if patched
AUX DEVICE OUTPUT: Stereo output connections for
external devices
Balanced, line-level, low-impedance
Half-normalled
INPUT
Outputs split if patched
STEREO RETURN INPUT:
Balanced, line-level, low-impedance
Half-normalled from the AUX DEVICE
OUTPUT
Breaking input: Inserted patch cord will
•
replace normalled connection
STEREO RETURN INSERT SEND: Stereo Return Insert
Send
Pre-fader
Always active
Outputs split if patched
STEREO RETURN INSERT RETURN: Stereo Return
Insert Return
• Patched signal is inserted in the Stereo Return
signal flow when the INS button is engaged
Pre-fader
50
to the STEREO RETURN
