Channel Insert Patch Points

A set of INSERT SEND and INSERT RETURN patch points for each fader path (Large and Small) are
provided in the Channel patch bay.

Lower 200 Slot Patch Points

COMP IN, SIDE CHAIN, and COMP OUT patch points in the Channel patch bay provide access to the
lower 200 slot signal processor interfacing.

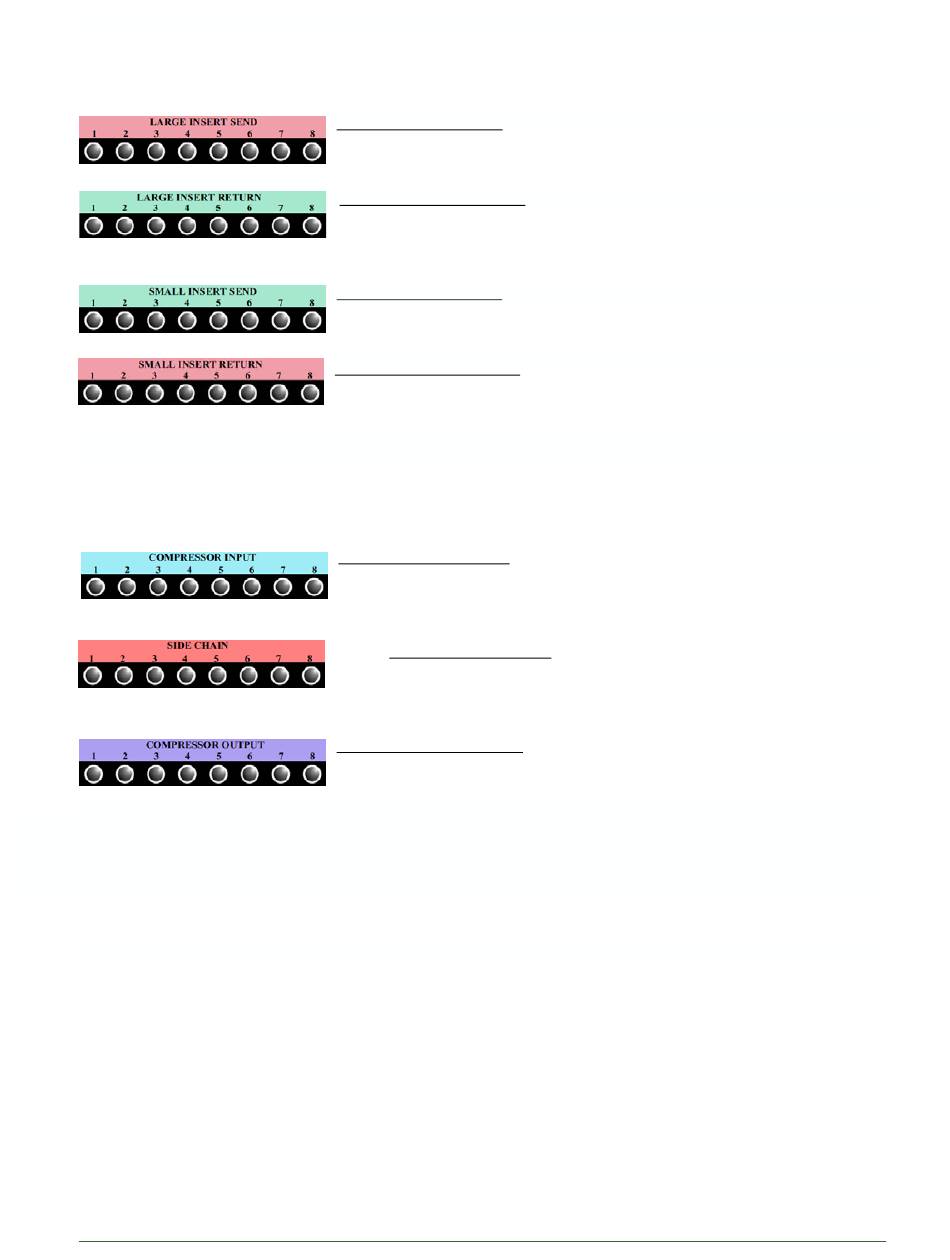

L e g a c y A X S
LARGE INSERT SEND: Insert Send from Large Fader path
Always active
Pre-fader, post-EQ
LARGE INSERT RETURN: Insert Return to the Large Fader path
Patched signal is inserted in the Large Fader path when the
INS button is engaged
Pre-fader, post-EQ
SMALL INSERT SEND: Insert Send from Small Fader path
Always active
Pre-fader, post-EQ
SMALL INSERT RETURN: Insert Return to the Small Fader path
Patched signal is inserted in the Small Fader path when the
INS button is engaged
Pre-fader, post-EQ
COMPRESSOR INPUT: Lower 200 slot input
Balanced, low-impedance, line-level input
•
Breaking input: Inserted patch cord will replace normalled
•
connection
• SIDE CHAIN (input): Lower 200 slot detection path input
Balanced, low-impedance, line-level input
•
Full-normal from COMPRESSOR INPUT
•
Breaking input: Inserted patch cord will replace normalled
•
connection
COMPRESSOR OUTPUT: Lower 200 slot output
• Balanced, low-impedance, line-level output
• Outputs split when patched
