Solo Controls

PFL (Pre-Fader Listen): Activates the Pre-Fader Listen Solo mode of for all solos
Fed post-Insert and pre-fader
Illuminates when engaged
PFL 2 (Pre-Fader Listen 2): Activates the Pre-Fader 2 Listen Solo mode of for all solos
Fed post-preamp/COMP and pre-EQ
Allows monitoring of the DIR PRE feed point
Illuminates when engaged
SOLO CLR (Solo Clear): Disengages all active channel SOLOs
• Momentary (does not stay engaged)
Does not clear AUX MASTER AFL solos
•
• Flashes to indicate any active SOLO or AFL
SOLO LEVEL: Sets the level of the Solo Bus feed to the Control Room monitors
Sets AFL Solo level
Sets PFL Solo level
MOM (Momentary): Activates the momentary solo mode on channels and Stereo Returns
The solo function will be active only while a SOLO button is held down
•
One or more SOLO buttons may be engaged at once
•
• Illuminates when engaged
ADD (Additive): Activates the additive solo mode on channels and Stereo Returns
Multiple SOLO buttons may be engaged at once
•
Any pressed SOLO buttons will remain engaged when pressed and released
•
Individual SOLO buttons may be disengaged by pressing a them second time
•
Illuminates when engaged
•
L e g a c y A X S

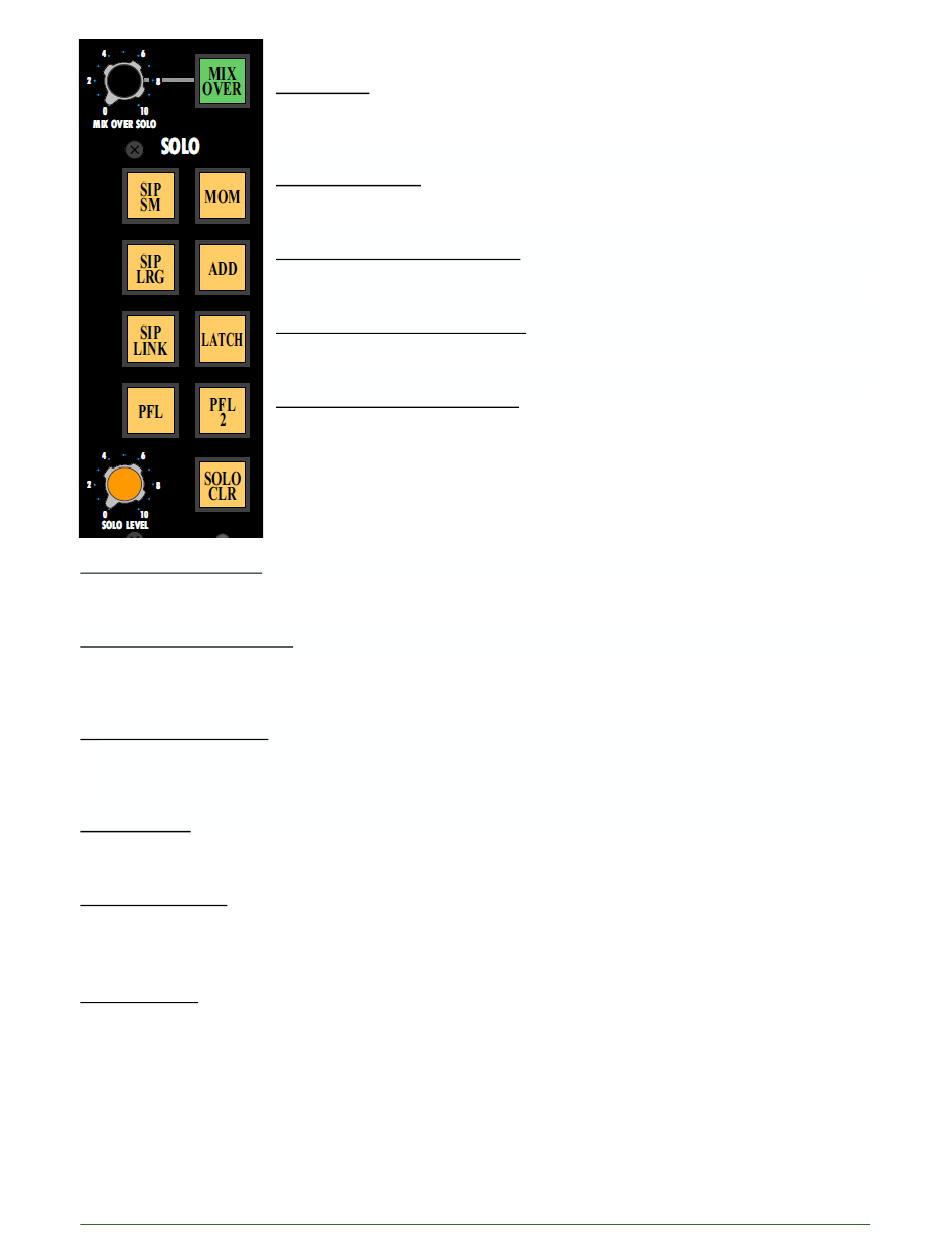

SOLO controls operate as follows:
MIX OVER: Activates the "Mix Over Solo" function
• Enables mixing of the Solo Bus and the selected control room monitor
source
Illuminates when engaged
MIX OVER SOLO: Level control for the "Mix Over Solo" function
Adjusts the balance between the Solo Bus and the control room
•
monitor source when the Mix-Over-Solo function is activated
SIP SM (Solo-In-Place Small): Activates the Solo-In-Place mode for Small
Fader path solos
Illuminates when engaged
SIP LRG (Solo-In-Place Large): Activates the Solo-In-Place mode for Large
Fader path solos
Illuminates when engaged
SIP LINK (Solo-In-Place Link): Links Large Fader and Small Fader SIP solos
Solo-In-Place must be the active solo mode
Engaging a Small Fader solo will cause unsoloed/unsafed Large and
Small faders to mute and vice versa
Without SIP LINK active, mutes will only be applied to the fader path
where a SIP solo is active
Illuminates when engaged
