Important:
Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the bike rack is installed in the correct locations.
Check the contents of kit before commencing fi tment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Layout
Maximum carrying capacity: 15kg (33lbs) per bike. Max 4 Bikes. Totalling 60kg/ 130lbs.
Warning: Do not attempt to fi t the bike carrier to your vehicle unless you fully understand this fi tting instructions. Please direct
any questions regarding fi tting to the dealer from where the bike carrier was purchased. Use only non-stretch fastening ropes
or straps.
Recommendations:
It is essential that all bolt connections be checked after driving a short distance when you fi rst install your bike carrier. Bolt
connections should be checked again at regular intervals (once a week is enough, depending on road conditions, usage, loads
and distances travelled). You should also check the bike carrier each time it is re-fi tted. Always make sure to fasten your load
securely. Please also ensure that all loads are evenly distributed and that the centre of gravity is kept as low as possible.
Bike carrier must be removed when putting vehicle through an automatic car wash.
In some states it may be against the law to obstruct clear view of lamps and registration plates. It is suggested that the Rhino-
Rack Number Plate Holder (RBCA011) be purchased.
Caution: The handling characteristics of the vehicle changes when you transport a load on the roof or at the rear. For safety
reasons we recommend you exercise extreme care when transporting wind-resistant loads. Special consideration must be
taken into account when cornering and braking.
Note for Dealers and Fitters
It is your responsibility to ensure this fi tting instruction is given to the end user or client
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhino-Rack Australia Pty Ltd and may not be used or changed for any other purpose than intended.

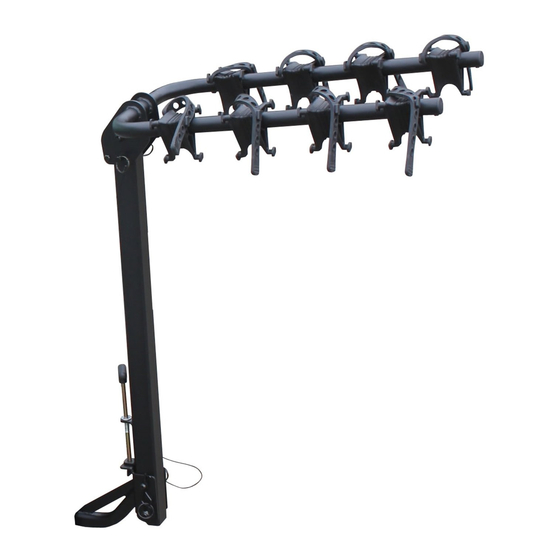

Rhino-Rack 4 Bike Carrier RBC044
Important Information
Document No: R259
Prepared By: Kayle Everett
Authorised By: Chris Murty
CONTROLLED
Fit Time: 20min
Issue No: 02
Issue Date: 01/11/2016
Page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rhino-Rack RBC044
Summary of Contents for Rhino-Rack RBC044
- Page 1 Issue No: 02 (Fax) (02) 9638 4822 Authorised By: Chris Murty Issue Date: 01/11/2016 These instructions remain the property of Rhino-Rack Australia Pty Ltd and may not be used or changed for any other purpose than intended. Page 1 of 5...
- Page 2 Rhino-Rack 4 Bike Carrier RBC044 General Parts List Item Component Name Part No. Support Arm Mast Receiving Bar Multi Facted Bike Holders Rubber Straps Lever Instructions R1181 Tools Required: 1: Socket Wrench 2: Allen Key Note: Check all Box are present.
- Page 3 Rhino-Rack 4 Bike Carrier RBC044 Insert the Clevis Pin into the hole of the Security Pin. Insert the Pivot Bolt into the Lower hole of the Receiving Bar. The two Flat Washers must be against either side of Install the Locking Nut. Use a Socket Wrench to install.
- Page 4 Rhino-Rack 4 Bike Carrier RBC044 Using the Rubber Straps on the Loop a Strap over the top of the Frame Loop a Strap around the rear of the Carrier, Fix the rear of the Frame and secure in place. Frame and secure as shown.
- Page 5 Rhino-Rack 4 Bike Carrier RBC044 Note Top View: For additional Bikes (4 max), face Bike in alternate directions. This = 1x 15kg will ensure the (33lbs) MAX Bikes will not clash together = 1x 15kg during travel. (33lbs) MAX Ensure there is...
