Rhino-Rack RTL002 Instructions Manual

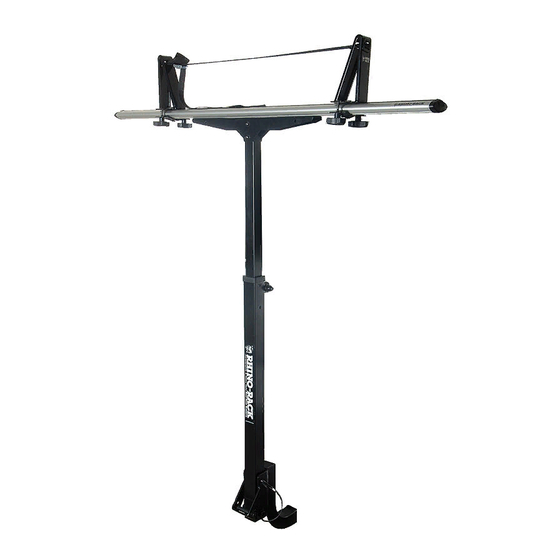

Rhino-Rack Kayak T-Load 2" Hitch Mount (RTL002)
Important:
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of kit before commencing fitment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Layout
Maximum carrying capacity: 60kg (132lbs)
Please refer to your vehicle manufacturers handbook for maximum carrying capacity of your roof racks. Always use the lower of
the two figures. Load must be evenly distributed over the crossbars.
Warning: This product requires a certain level of manual handling of long and sometimes heavy objects. Ensure that
you have assessed the following criteria before carrying out a lift.
Your physical ability and strength.
Your general state of health and fitness
Dimensions of the object, such as height reach and grip areas
Do not attempt to fit the T-load to your vehicle unless you fully understand this fitting instructions. Please direct any questions
regarding fitting to the dealer from where the T-load was purchased. Use only non-stretch fastening ropes or straps.
Recommendations:
It is essential that all bolt connections be checked after driving a short distance when you first install your roof racks and T-load.
Bolt connections should be checked again at regular intervals (once a week is enough, depending on road conditions, usage,
loads and distances travelled). You should also check the roof racks and T-Load each time they are re-fitted. Always make sure
to fasten your load securely. Please also ensure that all loads are evenly distributed and that the centre of gravity is kept as low
as possible. Long loads (e.g. canoes and kayaks) must be secured front and rear with non-stretch fastening ropes or straps.
Roof racks must be removed when putting vehicle through an automatic car wash.
Caution: The handling characteristics of the vehicle changes when you transport a load on the roof. For safety reasons we
recommend you exercise extreme care when transporting wind-resistant loads. Special consideration must be taken into account
when cornering and braking.
Note for Dealers and Fitters:
It is your responsibility to ensure these fitting instructions are given to the end user or client.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhino-Rack Australia Pty Ltd and may not be used or changed for any other purpose than intended.
Important Information
Document No: R135
Prepared By: Andy Wana
Authorised By: Chris Murty
Issue No: 01
Issue Date: 20/10/2011
Page 1 of 11
