Rhino-Rack Road Warrior Fitting Instructions Manual

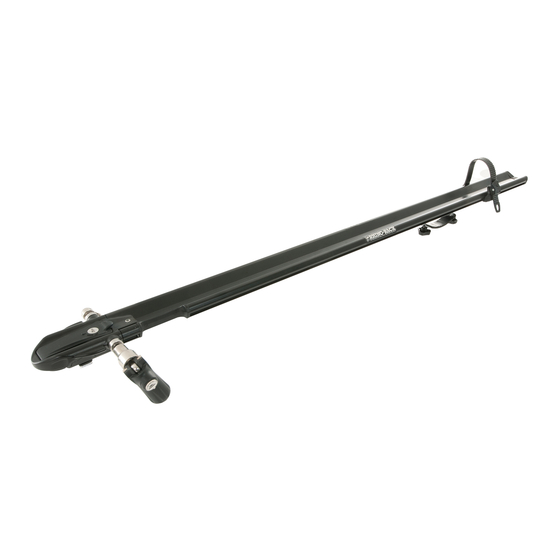

Rhino-Rack Road Warrior Bike Carrier (RBC036)
Important: Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the bike rack is installed in the correct locations.
Check the contents of kit before commencing fitment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Layout
Maximum carrying capacity:
15kg (33lbs). Load must be evenly distributed over the crossbars. Please refer to your vehicle manufacturers handbook for
maximum carrying capacity. Always use the lower of the two figures. Load must be evenly distributed over the crossbars.
Locks are only a deterrent. Please exercise care when protecting your items from theft.
Recommendations:
All bolt connections must be checked after driving a short distance when you first install your roof racks. Bolt connections
should be checked again at regular intervals (every 1000km or depending on road conditions, usage, loads and distances
travelled). You should also check the condition of your roof racks each time they are re-fitted. Always make sure to fasten your
load securely. Please also ensure that all loads are evenly distributed and that the centre of gravity is kept as low as possible.
Remove any wind resisting loads before travelling. Remove kids bike seats
Roof racks must be removed when putting vehicle through an automatic car wash.
Caution: The handling characteristics of the vehicle changes when you transport a load on the roof. For safety reasons we rec-
ommend you exercise extreme care when transporting wind-resistant loads. Special consideration must be taken into account
when cornering and braking. Please remove bike rack when putting vehicle through an automatic car wash.
Note for Dealers and Fitters
It is your responsibility to ensure this fitting instruction is given to the end user or client. Place these instructions in the vehicle's
glove box after installation is complete.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhino-Rack Australia Pty Ltd and may not be used or changed for any other purpose than intended.
Important Information
Document No: R195
Prepared By: Andy Wana
Authorised By: Chris Murty
CONTROLLED
Record your key number here
for future reference, in case of
misplaced or lost keys
Issue No: 05
Issue Date: 26/03/2014
Page 1 of 6
