Important:
Please read these instructions carefully prior to installation.
Please refer to your fitting instruction to ensure that the LED Light Bar is connected and installed correctly.
Check the contents of kit before commencing fitment and report any discrepancies.
Colour
Input Voltage
Pure White
12V
Warning:
Use caution when connecting cables to car battery as this may cause injury when not carried out correctly.
Some items in the kit are for indoor use only and should have adequate weather protection inside the vehicle it is installed on.
Do not look directly at LED lights as it can cause eye damage.
Read all instructions before use. If you are unsure on any items, please direct your questions to the place of purchase.

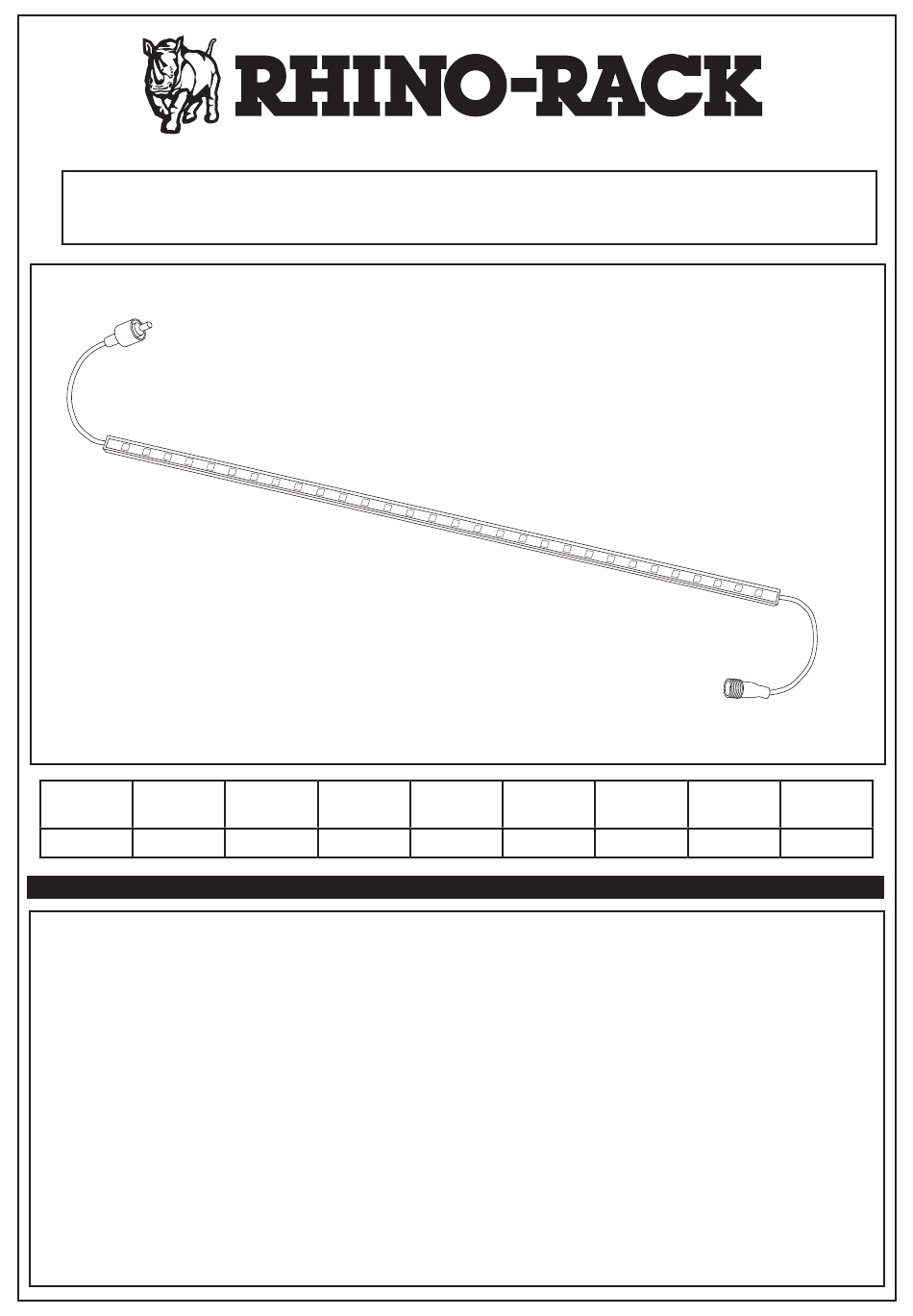

LED Light Bar
Kelvin
Length
5000-5500
30cm/50cm
Important Information
- LEDKIT 2 & 3
LED Type
Power
Tri Chip
4.3 / 7.2W
Current
LED Life
0.3 / 0.5A
50,000 hrs
Ingress
Protection
IP68
Advertisement
Table of Contents
Related Manuals for Rhino-Rack LEDKIT 2
Summary of Contents for Rhino-Rack LEDKIT 2
- Page 1 LED Light Bar - LEDKIT 2 & 3 Important: Please read these instructions carefully prior to installation. Please refer to your fitting instruction to ensure that the LED Light Bar is connected and installed correctly. Check the contents of kit before commencing fitment and report any discrepancies.
-
Page 2: Parts List
LED Light Bar - LEDKIT 2 & 3 Parts List Item Component Name LEDKIT2 LEDKIT3 Part No 50 cm LED Light Bar LED01 30 cm LED Light Bar LED02 On/Off Dimmer Switch LED03 Remote Dimmer Kit LED04 12V / Alligator Clamps Lead... - Page 3 LED Light Bar - LEDKIT 2 & 3 Basic kit set up. Requires: Power Supply [Item 10] + On/Off Dimmer Switch [Item 3] + LED Light Bar [Item 1] Connection as shown. (ii) NOTE: 240V Power Supply does not have threaded collar as it is intended for indoor use only.
- Page 4 LED Light Bar - LEDKIT 2 & 3 (i) Position LED Light Bar (ii) using Hook and loop fastener Straps [Item 11] [Item 1] by either Ensure leads are tucked away neatly to avoid any trip hazards. magnetising to metal object.
- Page 5 LED Light Bar - LEDKIT 2 & 3 The Three Way Splitter [Item 9] is designed to allow lights to be set up on different circuits. NOTE: A Dimmer Switch should be applied to each separate circuit. Attaching Alligator Clamps [Item 5] to battery terminal. It is recommended to attach to an auxillary battery to avoid draining main engine battery.
- Page 6 LED Light Bar - LEDKIT 2 & 3 Using the Remote Dimmer Kit [Item 4]. Plug Remote Dimmer onto power supply. NOTE: This Remote Dimmer Kit [Item 4] is not weather protected and must have adequate protection from moisture and rain. Onto the other lead plug LED Light.
-
Page 7: Troubleshooting
If it now works you have located a problem in the dimmer switch operation. Contact the nearest Rhino-Rack distributor for service. (iii) If it is still not working, open up 3 metre cigarette socket lead using a phillips head screwdriver and check the glass tube fuse.
