Crestron MPC3-101-RMB Quick Start

MPC3-101/102/201-RMB
Retrofit Mounting Bracket for MPC3-101, MPC3-102, and MPC3-201
The Crestron® MPC3-101/102/201-RMB retrofit mounting bracket
provides a mounting solution for upgrading an older MPC-M5 device
to the latest MPC3-101, MPC3-102, or MPC3-201 3-Series® media
presentation controller. The MPC3-101/102/201-RMB mounts over an
existing cutout for a wall mounted MPC-M5.

Check the Box

Item
MPC3-101/102/201-RMB
Plate, Metal, Adapter, White (P/N 2051025)
Plate, Metal, Cover, White (P/N 2051026)
Screw, 4-40 x 1/2 in., Pan Head, Phillips (P/N 2007177)
Screw, 6-32 x 1 in., Undercut Head, Phillips (P/N 2051398)

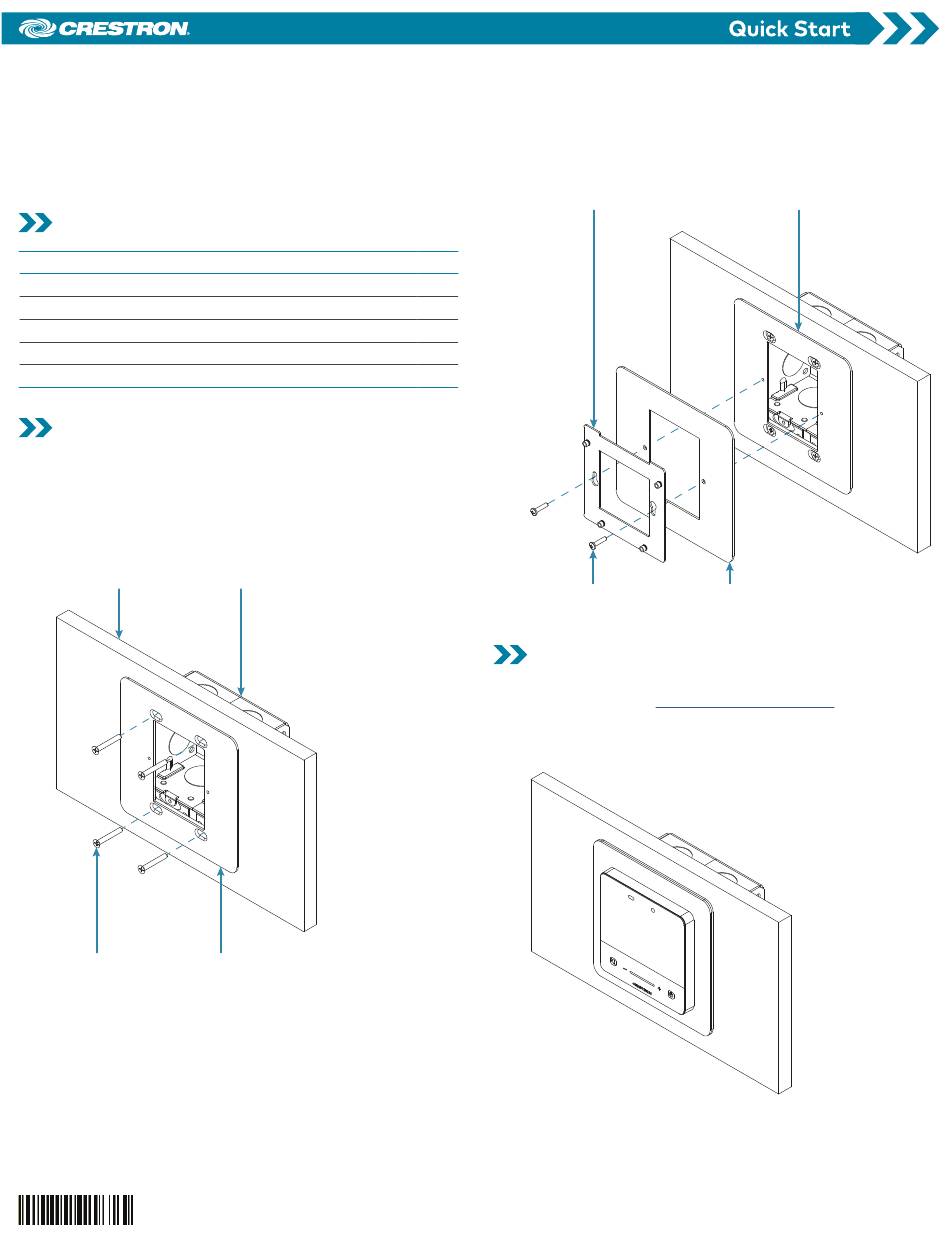

Install the Mounting Bracket

The MPC3-101/102/201-RMB mounts over a 2-gang U.S. electrical
box.
To install the MPC3-101/102/201-RMB:
1. Use the four included 6-32 x 1 in. screws to attach the
MPC3-101/102/201-RMB adapter plate to the 2-gang U.S.
electrical box.
Mounting
surface
Screw (4): MPC3-101/102/201-RMB
6-32 x 1 in. adapter plate
2-gang U.S.
electrical box
2. Use the two included 4-40 x 1/2 in. screws to attach the
MPC3 mounting plate (included with the MPC3 device) and
the included metal cover to the adapter plate. The MPC3-201
mounting plate is shown in the illustration below as an example.
MPC3-201
mounting plate
Qty
1
1
1
2
4
Screw (2):
4-40 x 1/2 in.

Complete the Installation

Complete the MPC3 device installation as described in the
appropriate document at www.crestron.com/manuals.
• For the MPC3-101 and MPC3-101, refer to the
MPC3-101/MPC3-101 Quick Start (Doc. 8424).
• For the MPC3-201, refer to the MPC3-201 DO Guide (Doc. 7876).
MPC3-101/102/201-RMB
adapter plate
MPC3-101/102/201-RMB
metal cover
