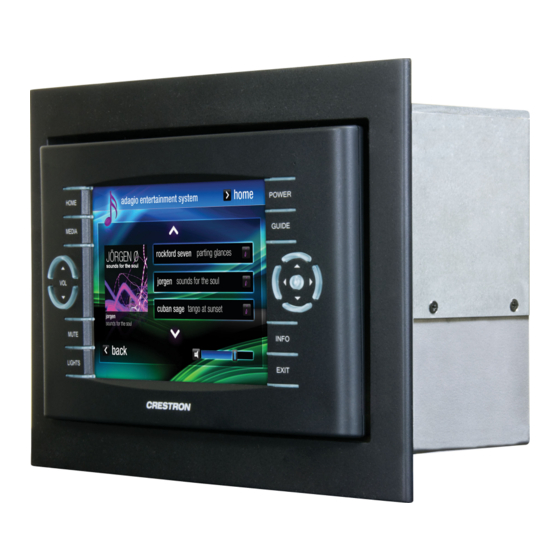

- Page 1 Crestron MMK-6X-DSW & WMKM-6X-DSW Mud Mount Kits for the TPS-6X-DSW Installation Guide...
-
Page 2: Table Of Contents
Crestron MMK/WMKM-6X-DSW Contents Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW 1 Description... 1 Setup ... 2 Supplied Hardware ... 2 Installation ... 4 Resources... 12 Industry Compliance ... 12 Reference Documents... 12 Further Inquiries ... 12 Future Updates ... 12 Return and Warranty Policies ... -
Page 3: Mud Mount Kits For The Tps-6X-Dsw: Mmk-6X-Dsw & Wmkm-6X-Dsw
MMK-6X-DSW & WMKM-6X-DSW Description Mud Mount Kits are the preferred mounting option for the TPS-6X-DSW when the cutout made in the drywall for docking station installation is too large. These kits provide support for additional plastering that can be applied to hide large irregularities in the cutout. -
Page 4: Setup
The dimensions of the MMK-6X-DSW and WMKM-6X-DSW are shown below and on the next page. Dimensional Drawing – Mud Ring Plate (19.22 cm) 2 • Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Crestron MMK/WMKM-6X-DSW DESCRIPTION Metal, Plate, Mud Ring... - Page 5 Dimensional Drawing – Mounting Plate 10.31 in (26.19 cm) 0.06 in 8.00 in (0.15 cm) (20.32 cm) 8.82 in (22.39 cm) 6.35 in (16.13 cm) Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 3 Installation Guide – DOC. 6779A...
-
Page 6: Installation
PKM-6X-DSW has been secured to the stud according to the instructions in the latest revisions of their Installation Guides (Doc. 6728 and Doc. 6778 respectively). It is also assumed that drywall is in place and a cutout for the TPS-6X-DSW is made in the drywall. - Page 7 PMK-6X-DSW (or BB-6X-DSW) pins. 4. Insert the symmetrical mud ring plate into the opening, as shown in the illustration on the following page. Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 5 NOTE: BACK VIEW OF INSTALLATION.
- Page 8 (2022809 ) NOTE: Do not overtighten screws. Doing so may over-dimple or rip the mud ring plate. 6 • Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Crestron MMK/WMKM-6X-DSW DRYWALL 5. When the mud ring plate is in position, bend the top two flanges of the plate upward and the bottom two flanges downward.
- Page 9 9. Apply drywall joint compound as needed to finish the cutout. Avoid covering the four tapped mounting holes. 10. Run the necessary cables for the TPS-6X-DSW and secure them behind the drywall. 11. When dry, the wall mount docking station can be installed using the four tapped holes in the PMK-6X-DSW.
- Page 10 Create the Adjustment/Mounting Plate Assembly ADJUSTMENT PLATE (2) (2017631 ) 8 • Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Crestron MMK/WMKM-6X-DSW 1. Insert the two pins on one adjustment plate into the top two outer holes on the mounting plate, as shown in the illustration below.
- Page 11 9. When the adjustment/mounting plate assembly is in position, bend the top two flanges of the mud ring upward (approximately 90 degrees) and the bottom two flanges downward (approximately 90 degrees). Refer to the illustration on the following page. Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 9...
- Page 12 12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand so that they slightly dimple into the holes in the mud ring plate. 13. Run the necessary cables for the TPS-6X-DSW and secure them behind the drywall.
- Page 13 ADJUSTMENT PLATE (2) (2017631 ) DRYWALL SCREWS (NOT INCLUDED) SCREW LENGTH SHOULD NOT EXCEED DRYWALL THICKNESS BY MORE THAN 1/2" (13 MM). SCREW #06-32 1 1/2" PAN HEAD (2007254 ) Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 11...
-
Page 14: Resources
Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column. 12 • Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW Crestron MMK/WMKM-6X-DSW DOCUMENT TITLE BB-6X-DSW Pre-Construction Wall Mount Back Box for TPS-6X-DSW... -
Page 15: Return And Warranty Policies
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation. Installation Guide – DOC. 6779A Mud Mount Kits for the TPS-6X-DSW Mud Mount Kits for the TPS-6X-DSW: MMK-6X-DSW & WMKM-6X-DSW • 13... - Page 16 Crestron Electronics, Inc. Installation Guide – DOC. 6779A 15 Volvo Drive Rockleigh, NJ 07647 (2023087) Tel: 888.CRESTRON 01.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
