Summary of Contents for Crestron MMK-CB
- Page 1 Crestron MMK-CB Mud Ring Mount Kit Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2005 Crestron Electronics, Inc.
-
Page 3: Supplied Hardware

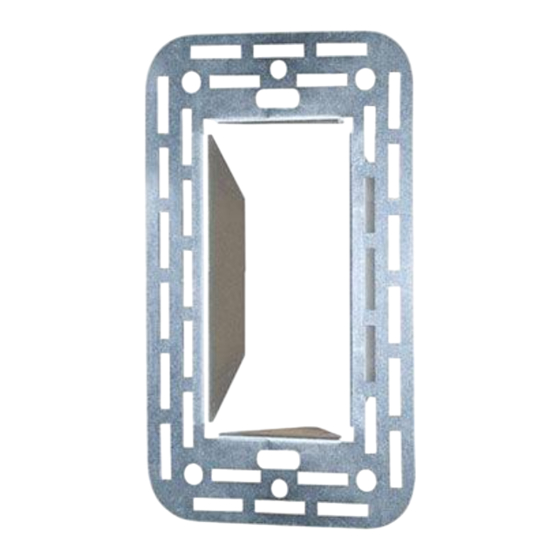

Do not use the C2N-CB with the decorator-style keypads. Supplied Hardware The MMK-CB consists of a single part, a metal mud ring plate. Drywall screws to secure the MMK-CB are not supplied. The MMK-CB dimensions are shown after this paragraph. -
Page 4: Installation
Installation The following procedure provides the necessary steps for the installation of the MMK-CB. It is assumed that the keypad has been assembled and the supplied template has been used to prepare a hole in the wall according to the procedures in the latest version of the C2N-CB Series 2 •... - Page 5 Crestron MMK-CB Installation Guides (Doc. 6346), available from the Crestron website (http://www.crestron.com/manuals). Consequently, it is assumed that the drywall in place has an irregular rectangular cutout thus necessitating the need for the mud ring mount kit. The only tools or materials required and not supplied are a level, four standard drywall screws, Phillips screwdriver, and tools/material to apply drywall joint compound.
-
Page 6: Further Inquiries
Crestron website (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 7: Crestron Limited Warranty
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 8 Crestron Electronics, Inc. Operations Guide - DOC. 6381 15 Volvo Drive Rockleigh, NJ 07647 (2013229) Tel: 888.CRESTRON 08.05 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
