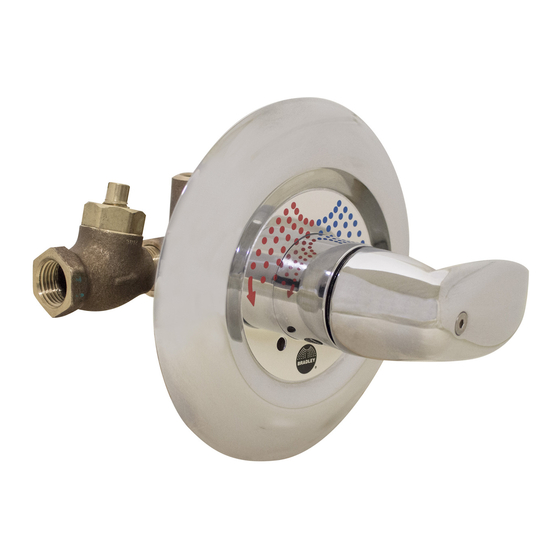

Bradley Equa-Flo Pressure Balancing Valve Operation And Service Manual

Equa-Flo Pressure Balancing Valve (August, 2004 to Present)

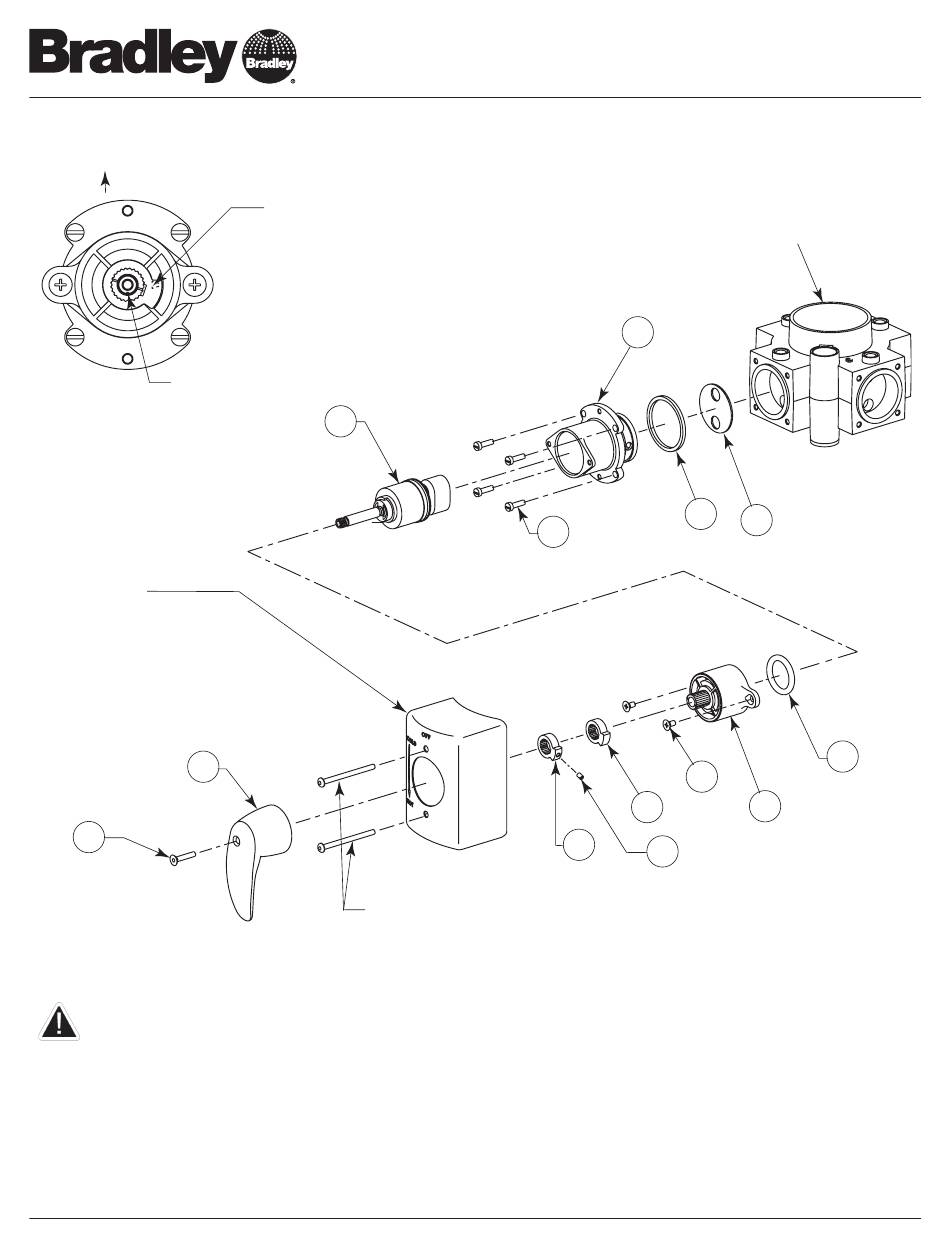

For Column Showers

UP
Notch in Stem
Escutcheon:
150-206 (6 Person)
150-205 (2-5 Person)
(Note: These parts have
a chrome finish with
cast-in recessed lettering)
1
2
Equa-Flo valves are equipped with a temperature limit stop which can be used to limit the temperature of tempered water discharged.
IMPORTANT: The hot limit stop as shown above has been set for maximum temperature operation. For temperatures
other than the maximum, the stop may be repositioned as described below. Failure to adjust the hot limit
stop to a safe shower temperature could result in the user being scalded.
To adjust the temperature, remove the handle and loosen the set screw. Remove the HOT limit stop and reposition to desired setting.
Turn the limit stop clockwise for a HOTTER setting and counterclockwise for a COOLER setting.
When assembling the cartridge assembly into the valve body and cap, lubricate the stem and O-rings with S45-125 grease.
If the desired position falls between adjacent positions on the spline, flip the HOT limit stop over so the other face shows. This shifts the
stop position by 1/2 spline.
1 of 2
Position of Arrow on Cap
Valve shown in "OFF" position
with HOT limit stop shown set
for maximum temperature operation.
9
Escutcheon Screws (2)
160-278
Operation and Service Guide: Showers
1.800.BRADLEY • Fax: 262.251.5817 • bradleycorp.com
10
3
Bradley Corporation • 215-1369-32A : EN 04-318
P.O. Box 309 • Menomonee Falls, WI 53052-0309
Shower
Manifold
11
12
13
6
5 7
4
8
