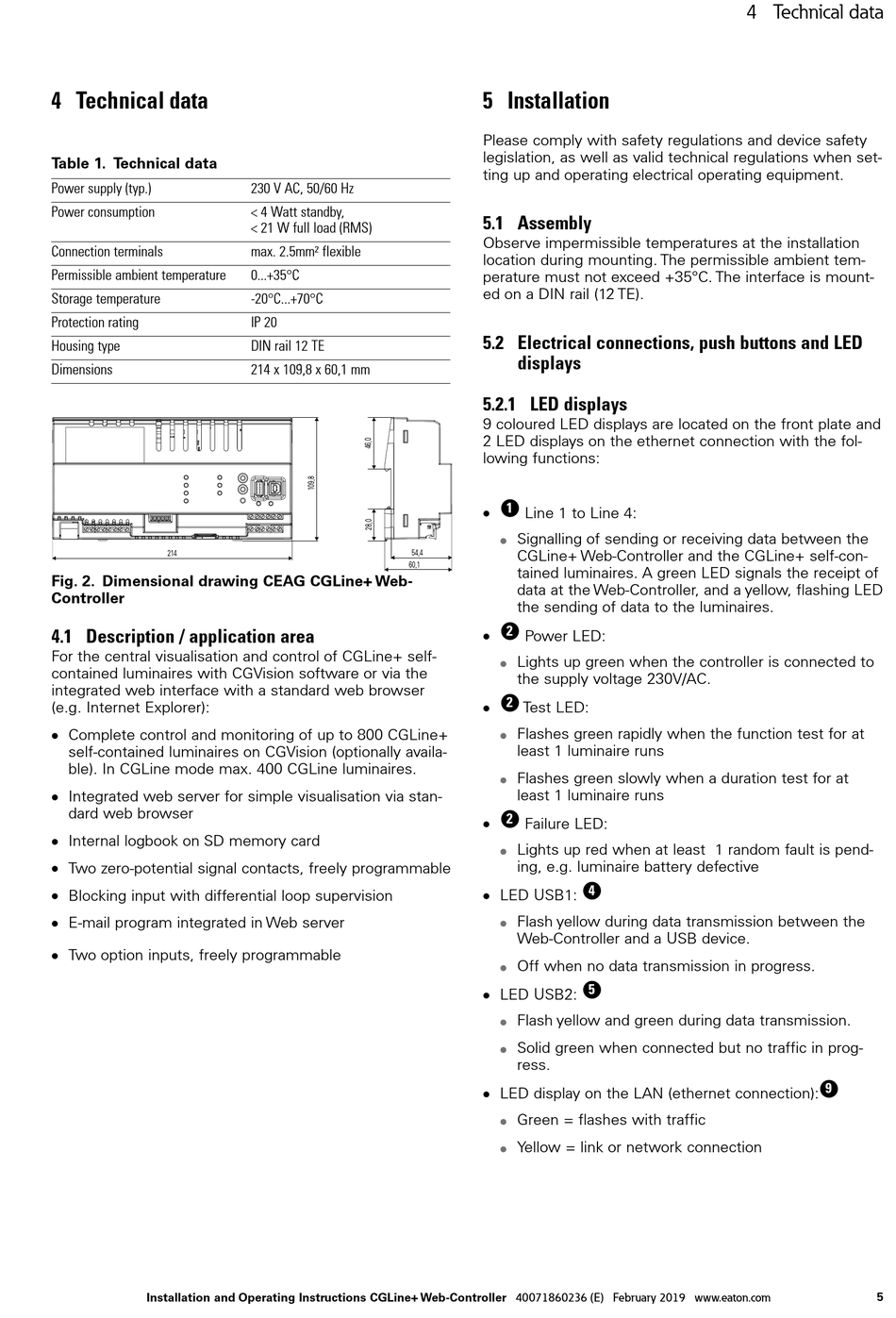

4 Technical data

Table 1 . Technical data
Power supply (typ.)
Power consumption
Connection terminals
Permissible ambient temperature
Storage temperature
Protection rating
Housing type
Dimensions
214
Fig . 2 . Dimensional drawing CEAG CGLine+ Web-
Controller

4.1 Description / application area

For the central visualisation and control of CGLine+ self-
contained luminaires with CGVision software or via the
integrated web interface with a standard web browser
(e.g. Internet Explorer):
Complete control and monitoring of up to 800 CGLine+
O
O
self-contained luminaires on CGVision (optionally availa-
ble). In CGLine mode max. 400 CGLine luminaires.
Integrated web server for simple visualisation via stan-
O
O
dard web browser
Internal logbook on SD memory card
O
O
Two zero-potential signal contacts, freely programmable
O
O
Blocking input with differential loop supervision
O
O
E-mail program integrated in Web server
O
O
Two option inputs, freely programmable
O
O
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
230 V AC, 50/60 Hz
< 4 Watt standby,
< 21 W full load (RMS)
max. 2.5mm² flexible
0...+35°C
-20°C...+70°C
IP 20
DIN rail 12 TE
214 x 109,8 x 60,1 mm
54,4
60,1

5 Installation

Please comply with safety regulations and device safety
legislation, as well as valid technical regulations when set-
ting up and operating electrical operating equipment.

5.1 Assembly

Observe impermissible temperatures at the installation
location during mounting. The permissible ambient tem-
perature must not exceed +35°C. The interface is mount-
ed on a DIN rail (12 TE).
5.2 Electrical connections, push buttons and LED
displays

5.2.1 LED displays

9 coloured LED displays are located on the front plate and
2 LED displays on the ethernet connection with the fol-
lowing functions:
1
Line 1 to Line 4:
O
O
Signalling of sending or receiving data between the
O
O
CGLine+ Web-Controller and the CGLine+ self-con-
tained luminaires. A green LED signals the receipt of
data at the Web-Controller, and a yellow, flashing LED
the sending of data to the luminaires.
2
Power LED:
O
O
Lights up green when the controller is connected to
O
O
the supply voltage 230V/AC.
2
Test LED:
O
O
Flashes green rapidly when the function test for at
O
O
least 1 luminaire runs
Flashes green slowly when a duration test for at
O
O
least 1 luminaire runs
2
Failure LED:
O
O
Lights up red when at least 1 random fault is pend-
O
O
ing, e.g. luminaire battery defective
4
LED USB1:
O
O
Flash yellow during data transmission between the
O
O
Web-Controller and a USB device.
Off when no data transmission in progress.
O
O
5
LED USB2:
O
O
Flash yellow and green during data transmission.
O
O
Solid green when connected but no traffic in prog-
O
O
ress.
LED display on the LAN (ethernet connection):
O
O
Green = flashes with traffic
O
O
Yellow = link or network connection
O
O
4 Technical data
9
5
