1 Introduction / Foreword
The CGLine+ Web-Controller allows for comfortable and
full control and monitoring for up to max. 800 CGLine+
self-contained luminaires or modules. Many useful fea-
tures are implemented.
The luminaires are connected via a 2 core bipolar bus-
cable, subdivided on 4 or 2 lines (max. 200 luminaires on
4 lines or 400 luminaires on 2 lines).
An integrated webserver allows an easy monitoring of all
luminaires over an existing computer network, via a stan-
dard web browser, e.g. firefox. Thus a special software is
not required and location independent monitoring is pos-
sible.
An optional CGLine+ PC-Software allows an comfotable
configuration of the CGLine+ Web-Controller via an USB-
cable connection.
The following features are available:
Housing for DIN rail mounting in a standard distribution
O
O
cabinet
Up to 4 lines with max. 200 luminaires each, in total
O
O
max. 800 luminaires
Íntegrated webserver for a comfortable monitoring via
O
O
standard webbrowser
Integrated mail client for up to 10 recipients, mail
O
O
events freely selectable
Blocking input with differential loop monitoring
O
O
(1 kOhm)

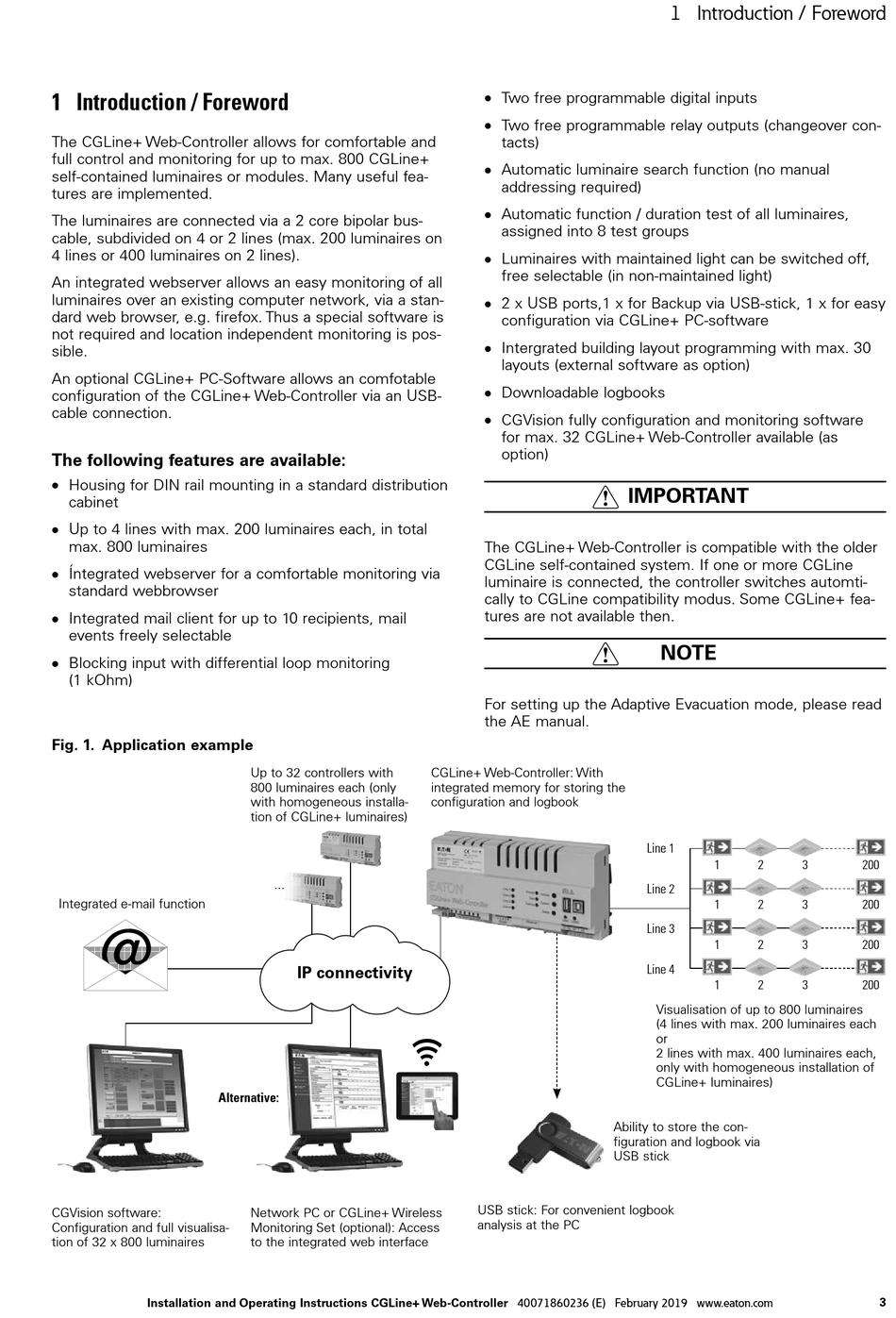

Fig . 1 . Application example
Integrated e-mail function
@
Alternative:
CGVision software:
Configuration and full visualisa-
tion of 32 x 800 luminaires
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
Up to 32 controllers with
800 luminaires each (only
with homogeneous installa-
tion of CGLine+ luminaires)
...
IP connectivity
Network PC or CGLine+ Wireless
Monitoring Set (optional): Access
to the integrated web interface
Two free programmable digital inputs
O
O
Two free programmable relay outputs (changeover con-
O
O
tacts)
Automatic luminaire search function (no manual
O
O
addressing required)
Automatic function / duration test of all luminaires,
O
O
assigned into 8 test groups
Luminaires with maintained light can be switched off,
O
O
free selectable (in non-maintained light)
2 x USB ports,1 x for Backup via USB-stick, 1 x for easy
O
O
configuration via CGLine+ PC-software
Intergrated building layout programming with max. 30
O
O
layouts (external software as option)
Downloadable logbooks
O
O
CGVision fully configuration and monitoring software
O
O
for max. 32 CGLine+ Web-Controller available (as
option)
The CGLine+ Web-Controller is compatible with the older
CGLine self-contained system. If one or more CGLine
luminaire is connected, the controller switches automti-
cally to CGLine compatibility modus. Some CGLine+ fea-
tures are not available then.
For setting up the Adaptive Evacuation mode, please read
the AE manual.
CGLine+ Web-Controller: With
integrated memory for storing the
configuration and logbook
USB stick: For convenient logbook
analysis at the PC
1 Introduction / Foreword
IMPORTANT
NOTE
Line 1
1
2
Line 2
1
2
Line 3
1
2
Line 4
1
2
Visualisation of up to 800 luminaires
(4 lines with max. 200 luminaires each
or
2 lines with max. 400 luminaires each,
only with homogeneous installation of
CGLine+ luminaires)
Ability to store the con-
figuration and logbook via
USB stick
3
200
3
200
3
200
3
200
3
